MPL MAXBES User Manual

10 Port Manageable GigaBit Ethernet Switch with 2 10GBit SFP+

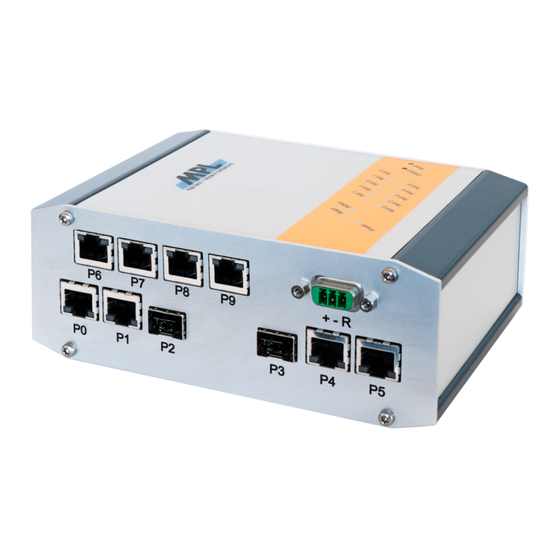

The MAXBES is a 10 Port manageable Gigabit Ethernet Switch with 2 10GBit SFP+ ports.
Due to its modular design, the MAXBES offers a wide band of possible port configurations:
2 x 10GBit SFP+
•
Up to 8 x Triple speed Copper Ethernet ports.
•
Up to 4 x 1GBit SFP Slots.
•
Variants available in 2 different standard housings, one rugged / railway housing and one open frame.
The robust design, low power consumption and the various mechanical configurations makes the MAGBES
ideally suited for industrial applications.
Besides manageable Features such as Quality of Service, Port Based VLAN, and IEEE 802.1Q VLAN, the
MAXBES also supports Rapid Spanning Tree IEEE 802.1D 2004 and allows to use redundant Ethernet
connections without introducing Network loops.
The management functions are described in the "MPL manageable Switch Family Technical Reference
Manual", please see: www.mpl.ch
The MAXBES supports Jumbo Frames up to 10kBytes
Features:
●
2 x 10GBit SFP+ Slots
●
Up to 8 x Triple Speed Copper Ethernet ports.
●
Up to 4 x 1GBit SFP Slots.
●
Wide Input Voltage Range 8 to 36VDC
●
Available in standard housing (62mm Heigh)
●
2021 by MPL AG
MAXBES
User Manual
Available in Rugged / Railway housing with Full-AVX
●
support for the SFP ports and M12 X-Coded
connectors for the Copper ports.
Available as open Frame
●
1 MEH-10172-001 Rev. D
