Zenty ZT-102 User Manual

Iptv h.264 encoder
Hide thumbs

Advertisement

Quick Links

Download this manual
Zenty | Professional A/V Solution Provider
®
ZENTY
9807 EMILY LANE
STAFFORD, TX 77477
(844) 200-1945
SUPPORT@ZENTY.COM
(844) 200-1945 |
sales@zenty.com
Page 1 of 22
Copyright © Zenty AV

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZT-102 and is the answer not in the manual?

Questions and answers

Related Manuals for Zenty ZT-102

Summary of Contents for Zenty ZT-102

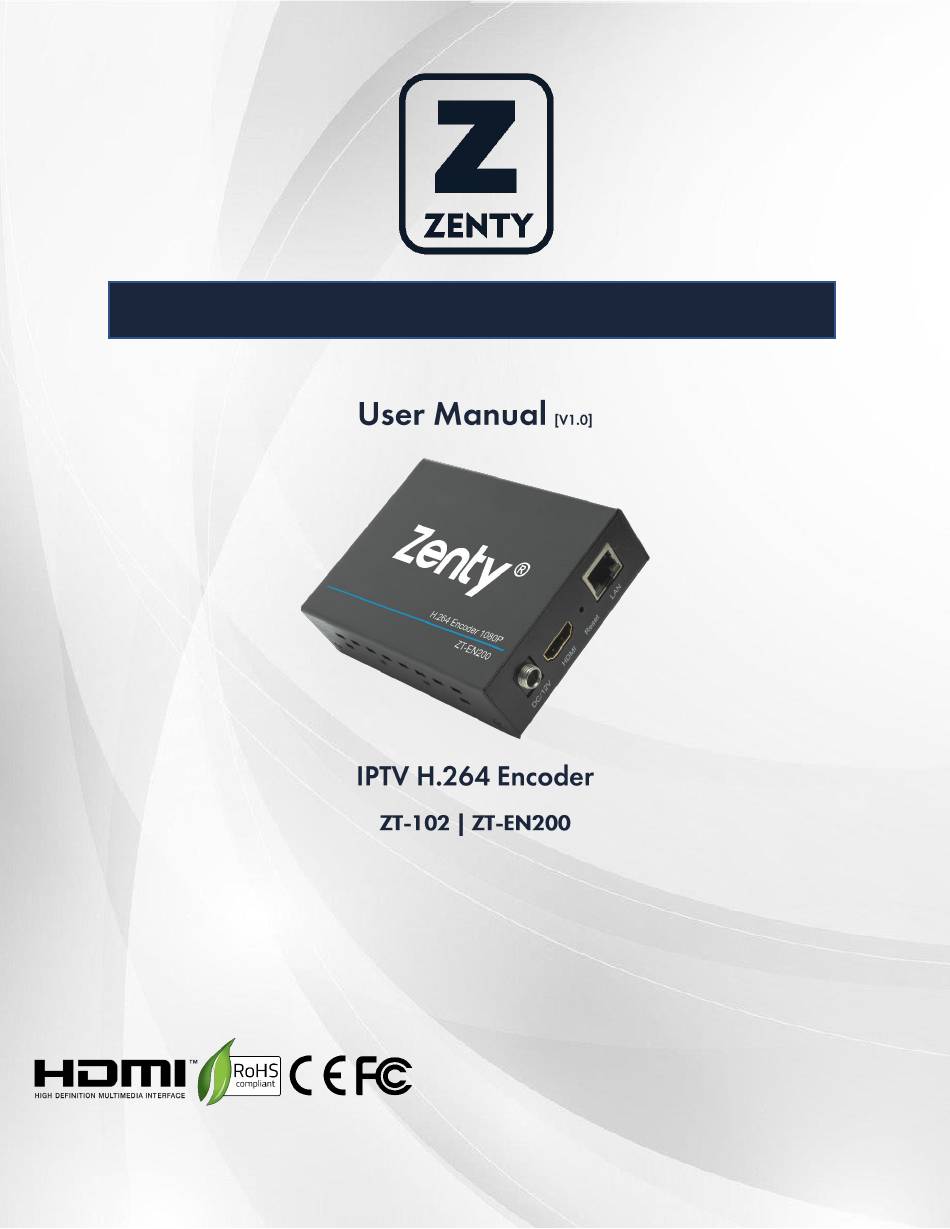

  • Page 1 Zenty | Professional A/V Solution Provider ® ZENTY 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 1 of 22 Copyright © Zenty AV...
  • Page 2 (844) 200-1945 | sales@zenty.com Page 2 of 22 Copyright © Zenty AV...
  • Page 3 (844) 200-1945 | sales@zenty.com Page 3 of 22 Copyright © Zenty AV...
  • Page 4 • Supports customized resolution settings. • (1) x Main Unit. H.264 HD HDMI Encoder • (1) x Power adapter DC 12V 1A • (1) x Operating Instruction manual (844) 200-1945 | sales@zenty.com Page 4 of 22 Copyright © Zenty AV...
  • Page 5 → Select “Properties → Double click “Internet Protocol Version 4 (TCP/IPv4)” → Enter the IP address with 192.168.1.11 (0-255) and Subnet mask 255.255.255.0. Press OK twice to save the configuration. (844) 200-1945 | sales@zenty.com Page 5 of 22 Copyright © Zenty AV...
  • Page 6 Enter the unit IP 192.168.1.168 in your browser, to open the web GUI. Login with the default user name and pass word as admin. (844) 200-1945 | sales@zenty.com Page 6 of 22 Copyright © Zenty AV...
  • Page 7 As below, the stream address is in the red frame. Click “Encoder” setting → “Main stream” → Configure your settings → Click Apply (844) 200-1945 | sales@zenty.com Page 7 of 22 Copyright © Zenty AV...
  • Page 8 Click “Encoder” → “Audio” → Configure your settings → Click “Apply” Click “Encoder” → “Advanced” → Configure your settings → Click “Apply”. (844) 200-1945 | sales@zenty.com Page 8 of 22 Copyright © Zenty AV...
  • Page 9 “LOGO upload” → Choose a bmp file that matches the requirements → Click “Apply” ※Note: The screenshots might have some difference with actual operation interface due to software upgrade, all the screenshots are for reference only. (844) 200-1945 | sales@zenty.com Page 9 of 22 Copyright © Zenty AV...
  • Page 10 Click system → Network → Modify the network settings to match those of your network → Click apply. Note: Please change your DNS server to use Google’s DNS servers. (Provided in the picture below.) (844) 200-1945 | sales@zenty.com Page 10 of 22 Copyright © Zenty AV...
  • Page 11 System → Change password → Set your password → Apply System → Reset → Reset Note: This will set your device to the factory defaults. (844) 200-1945 | sales@zenty.com Page 11 of 22 Copyright © Zenty AV...
  • Page 12 Status → Main stream → Preview Note: For Internet Explorer, you can get preview window directly. For Chrome, you must install an extension called "Native HLS Playback" to get the preview window. (844) 200-1945 | sales@zenty.com Page 12 of 22 Copyright © Zenty AV...
  • Page 13 Below picture shows the preview effect: (844) 200-1945 | sales@zenty.com Page 13 of 22 Copyright © Zenty AV...
  • Page 14 Click “Media”, then click “Open Network Stream”. Enter the Stream URL from the page of “Main stream”, click “Play”. Note: Please make sure that the stream type you choose, is enabled in the encoder. (844) 200-1945 | sales@zenty.com Page 14 of 22 Copyright © Zenty AV...
  • Page 15 If more than one local user needs to stream the video, of the same HD encoder, at the same time. You may enable multicast IP, then reboot the HD encoder. (844) 200-1945 | sales@zenty.com Page 15 of 22 Copyright © Zenty AV...
  • Page 16 VLC Player. This address can be visited by more than one user at the same time. 1. Confirm if your NVR supports the H.264 codec. Since we’re using ONVIF, you will need to enable the "RTSP" function as pictured below. (844) 200-1945 | sales@zenty.com Page 16 of 22 Copyright © Zenty AV...
  • Page 17 2. If you need the NVR to recognize the audio of the HD Encoder, you will need to enable the Audio as below picture: (844) 200-1945 | sales@zenty.com Page 17 of 22 Copyright © Zenty AV...
  • Page 18 1. To stream to YouTube: access your YouTube Live settings (below) and combine your “Server URL” and “Stream name/key” (separated by a forward slash). Full RTMP URL Example: rtmp://a.rtmp.youtube.com/live2/zc3e-yw22-bbdw-baeg (844) 200-1945 | sales@zenty.com Page 18 of 22 Copyright © Zenty AV...
  • Page 19 3. Check “Stream Health” in YouTube and adjust settings accordingly, per your specific stream requirements. Note: Use Google’s DNS servers (8.8.8.8 and 8.8.4.4), in your encoder’s network settings for best results. (844) 200-1945 | sales@zenty.com Page 19 of 22 Copyright © Zenty AV...
  • Page 20 This Limited Warranty is extended only to the original purchaser and only covers products purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service. (844) 200-1945 | sales@zenty.com Page 20 of 22 Copyright © Zenty AV...
  • Page 21 The items listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. (844) 200-1945 | sales@zenty.com Page 21 of 22 Copyright © Zenty AV...
  • Page 22 WWW.ZENTY.COM 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 22 of 22 Copyright © Zenty AV...
