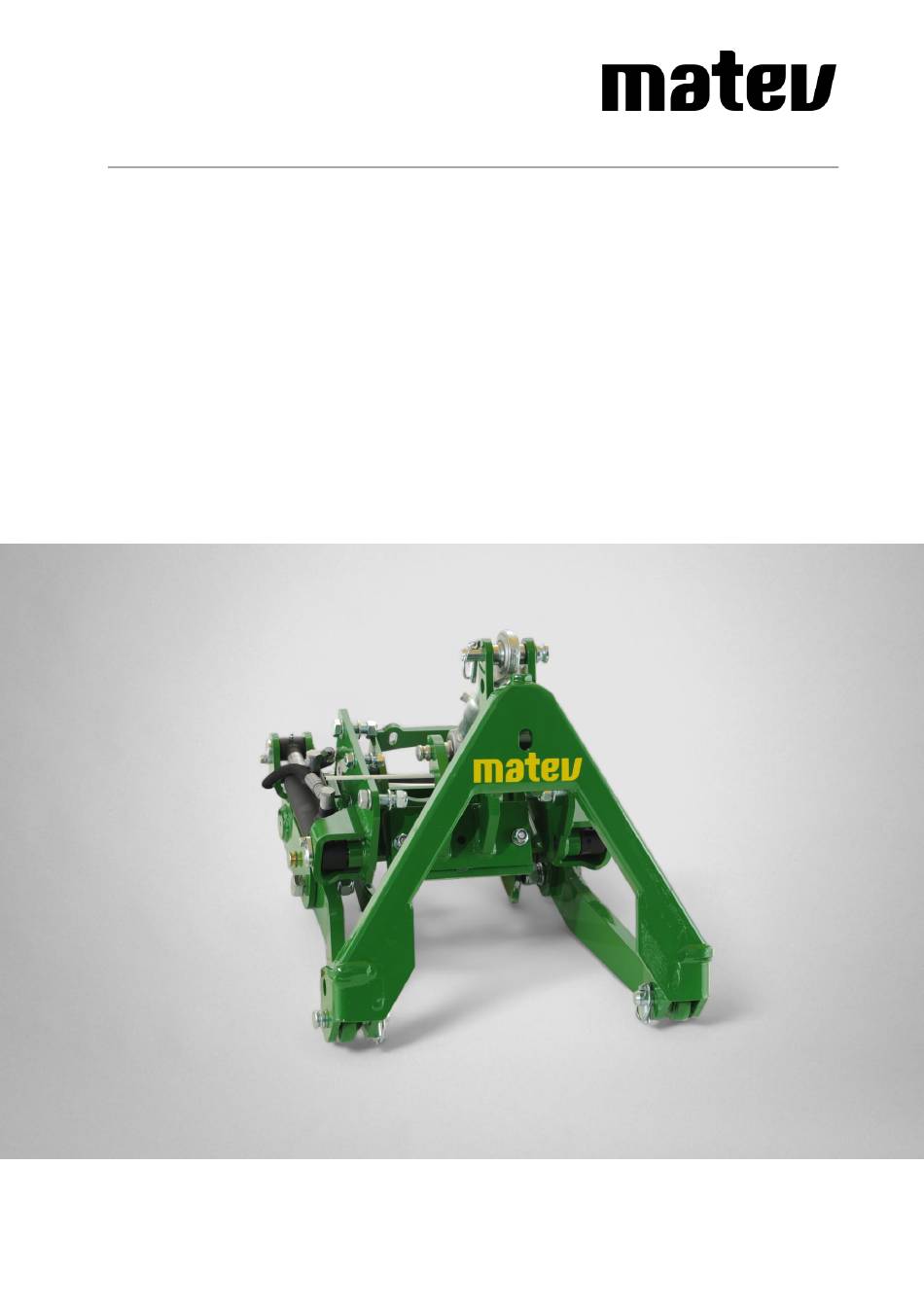

matev GmbH
Nürnberger Str. 50
90579 Langenzenn
T +49 9101 9087 -0
F +49 9101 9087 -20
info@matev.eu
www.matev.eu
Original operating manual
Front linkage and Front PTO shaft
FPS – JD – 3R - MY2024
for John Deere, type 3033R, 3038R, 3045R, 3046R
Version: 10/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the FPS -JD-3R-MY2024 and is the answer not in the manual?

Questions and answers

Related Manuals for matev FPS -JD-3R-MY2024

Summary of Contents for matev FPS -JD-3R-MY2024

  • Page 1 GmbH Nürnberger Str. 50 90579 Langenzenn T +49 9101 9087 -0 F +49 9101 9087 -20 info@matev.eu www.matev.eu Original operating manual Front linkage and Front PTO shaft FPS – JD – 3R - MY2024 for John Deere, type 3033R, 3038R, 3045R, 3046R...
  • Page 2 Table of Contents Table of contents About this operating manual ..................3 Safety ......................... 4 Intended use ....................... 4 Qualifications of personnel ..................4 General safety notices ....................5 Special safety notices ....................6 Installation ......................... 7 Mounting the front linkage ................... 7 Mounting the lift arms ....................
  • Page 3 Safety About this operating manual Dear customer! Thank you for purchasing this implement, we appreciate your trust. Prior to using this implement for the first time, read this operating manual carefully and conscientiously all the way through. Listings with bullet points are marked as follows: •...
  • Page 4 Safety Safety Guidelines and instructions with which you must comply, are summarized in this section. Personnel who install, operate and maintain the implements, must have read and under- stood this operating manual. Intended use The implements should only be mounted on tractors as specified on the cover sheet. The front linkage is used to accommodate small to medium sized implements, such as snow blades, sweepers, etc.
  • Page 5 Safety General safety notices General safety instructions are explained in this section. These safety instructions are used in the subsequent chapters. In addition to the safety aspect, you will save money and work time if you follow these safety instructions. Danger! Hazardous situations that will result in serious injuries or death.
  • Page 6 Safety Special safety notices The safety instructions specified in this chapter are also affixed as stickers on the imple- ments. Read the operating manual and observe the safety information. Order-Nr.: V0002923 Injuries due to crushing. Never reach into the crushing hazard danger zone if the parts there can move.
  • Page 7 Attention! If there are faults, problems, or other indications of malfunction, contact your sales consultant or contact matev GmbH directly. Start – installation of the front linkage It is necessary to remove the front parts and the side parts of the engine hood to facili- tate mounting.
  • Page 8 Installation Position the front linkage correctly relative to the tractor. front Fig. 2: Position of the front linkage From below, slide the front linkage over the tractor flame. Bolt the front linkage to the tractor frame on both sides with the provided bolts. Fig.
  • Page 9 Installation Now hook the two cylinders into the frame and the lift arm and fasten it with the pro- vided bolt. Fig. 4: Cylinder in installed status Allocation of the hoses 1800mm Direction of drive 730mm 1950mm 750mm Fig. 5: Hose assignment Attention! Connect the hydraulic lines in such a manner that the lines coming from the...
  • Page 10 Installation Hook in the second cylinder and guide the hoses behind and along the existing hy- draulic pipes, until you are at the height between the hydraulic pump and starter. At this point, pull the hoses diagonally upward, and behind the engine through the tractor. Fig.
  • Page 11 Installation Fig. 9: Pull behind the engine and through to the other side Fig. 10: Connection on the junction Page 11...
  • Page 12 Installation Route hoses behind the fuel filter to the cylinder, attach hoses for the front hydraulic couplings, if present, with the enclosed clamp. Fig. 11: Hose guide right cylinder Now screw the top link holder and the towing eye (with the help of the adapter plate) to the front frame.
  • Page 13 Installation Mounting the lift arms The lift arms, the coupling support, and the upper link must always be removed for opera- tion with front loader, regardless of whether you are using an engine PTO shaft or a PTO drive shaft. To remove the lift arms, you must remove the fastening screw and the bolt. 1: Bolt with linch pin (Linch pin always on the inside) 2: Threaded union...
  • Page 14 Installation Mounting the front PTO shaft  Follow the instructions of the drive shaft manufacturer! 1. Mount the holder on the mid-mount stub, cut out the protective pipe accordingly. Fig. 16: Holder – mid-mount stub Fig. 17: Cutout on the protective pipe Fig.
  • Page 15 Installation 2. Mount the JD Sensor, hexagonal profile and protective cover on the drive shaft. Fig. 19: Drive shaft 3. Mount the drive shaft and the bracket on the front linkage as shown in the Fig. Fig. 20: Drive shaft mounted 4.
  • Page 16 Installation Frame trussing 1. Mount holder on tractor housing, tension and counter screws against tractor housing. Fig. 22: Holder on the tractor frame Fig. 23: Clamp screws onto the frame 2. Screw holder onto the front power system, hook in and brace pull rods. Fig.
  • Page 17 Installation Pressure accumulator Mount the pressure accumulator + retaining bracket as shown on the Fig. and connect hy- draulically with the T-piece in front of the throttle. Fig. 25: Pressure accumulator mounted Rear hydraulics extension kit For 3R tractors with or without cab, there is a separate hydraulics extension kit with accom- panying installation manual.
  • Page 18 Installation For tractors without front protective grille, the support plate is fastened and the hydraulic couplings are mounted as shown in the Fig. (2x angle bracket threaded unions are dis- pensed with) For tractors with front protective grille the support plate is dispensed with, the hydraulic couplings are mounted on the insertion points in the front protective grille.
  • Page 19 Operation Operation Attention! Before starting up the implement, read the instructions on safety and han- dling for operation of the entire implement and connection to the tractor. Coupling triangle Attention! Incorrect installation oft the coupling triangle has the risk that the upper handlebar can push in the hood.
  • Page 20 Operation Mounting position C: Can be used, to adjust the attachment mounting position A is the preffered one. Fig. 32: mounting position C Mounting position D: Should not be used, there is a hight risk when the top link is screwed together all the way that the, top link runs into the hood..
  • Page 21 Operation Coupling and uncoupling implements  Note! Comply with the axle loads specified by the tractor manufacturer Drive the tractor forward in front of the implement. Lower the front linkage hydraulically. Drive slowly toward the implement until the coupling triangle of the tractor is under the coupling triangle of the implement.
  • Page 22 Repair If there are faults, problems, or other indications of malfunction, contact your sales con- sultant or contact the manufacturer directly: matev GmbH Nürnberger Str. 50 90579 Langenzenn Tel. (switchboard): 09 101/90 87-0 Enter the article number and the VIN number here.
  • Page 23 Take the parts to the collection points for residual waste, special waste, or recycle them depending on material. matev GmbH does not provide any disposal services. Guarantee The General Terms & Conditions of matev GmbH provide information on the guarantee conditions. matev GmbH Nürnberger Str. 50...
  • Page 24 List of illustrations List of illustrations Fig. 1: Drill out the rear bores ........................7 Fig. 2: Position of the front linkage ........................8 Fig. 3: Front linkage bolted to frame ......................8 Fig. 4: Cylinder in installed status ........................9 Fig. 5: Hose assignment ..........................9 Fig.
  • Page 25 EC Declaration of Conformity EC Declaration of Conformity The manufacturer / distributor matev GmbH Nürnberger Straße 50 90579 Langenzenn Germany hereby declares that the following products of the product series: Front linkage and Front PTO shaft Product: FPS-JD-3R comply with all relevant provisions of the applicable legal regulations (hereinafter) – including applicable amendments at the time of the declaration.
  • Page 26 Agricultural machinery- Safety- Part1: General requirements DIN EN ISO 4413:2011-04 Hydraulic fluid power- General rules and safety requirements for systems and their components Signed for and on behalf of matev GmbH, Nürnberger Straße 50, 90579 Langenzenn, Germany Georg Hemmerlein Place: Langenzenn Date:...
