Summary of Contents for M2M MClimate MC-LW-CO2-E-INK-01

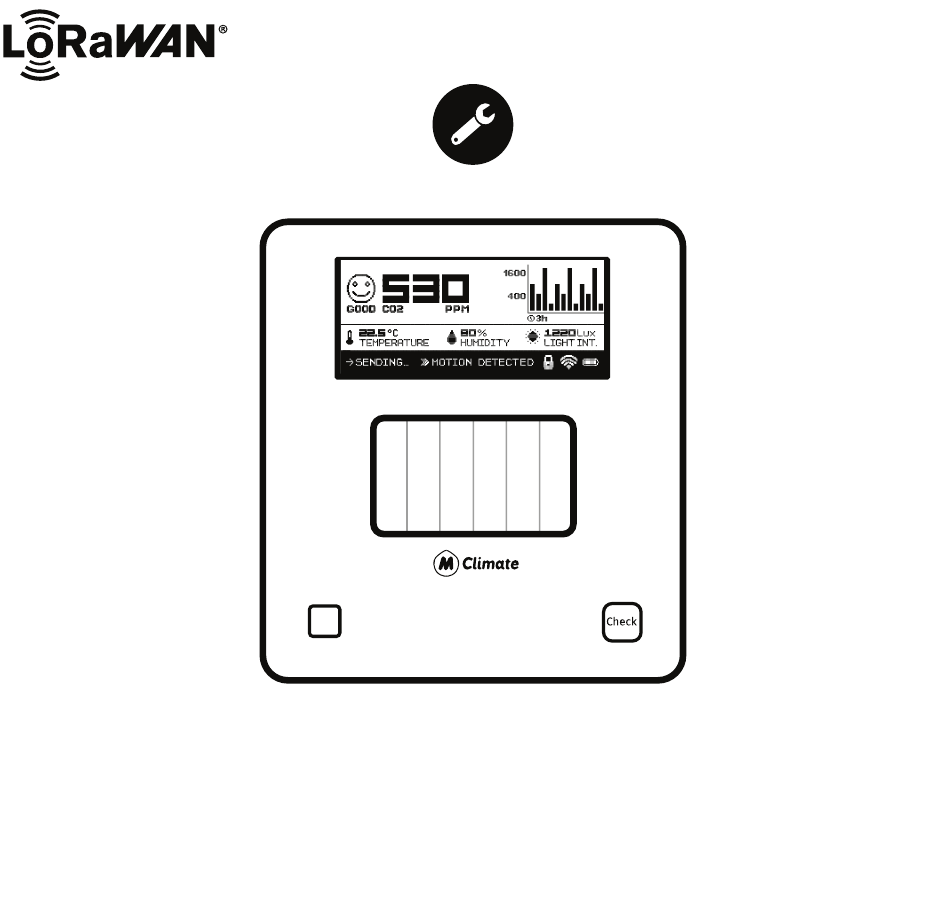

- Page 1 ORGANIC SOLAR PANEL MClimate CO2 Display LoRaWAN® User manual...
- Page 2 Scan the QR Code Bulgarian Dutch to access MClimate За да разберете как се инсталира Om te weten te komen hoe u MClimate MClimate CO2 Display LoRaWAN®, CO2 Display LoRaWAN® installeert, scan CO2 Display LoRaWAN® сканирайте QR кода или посетете de QR-code of bezoek de link ernaast.
-
Page 3: Table Of Contents
Table of content What’s inside the box? What is in the box? Technical details, Safety instructions, Legal Notices & Compatibility Device Parts, Mechanical dimensions Display’s content MClimate CO2 Display LoRaWAN® Buttons Behavior Commissioning Placement guidelines Installation Wall mounting plate Secure bolt... -
Page 4: Technical Specifications
Technical specifications Safety Instructions Description: MClimate CO2 Display LoRaWAN is a stand-alone CO2 Please read the safety instructions before sensor powered entirely by solar energy using an organic solar panel. installing the device! Failure to follow the The device features a 2.9" e-ink screen, sensor for movement (PIR), recommended instructions in this manual may be temperature and humidity sensor, LUX sensor and NDIR CO2 sensor. -
Page 5: Device Parts
“Reset” button Device parts Display USB Type-C port PIR Sensor Solar panel "Check" CO2 button Assembled MClimate CO2 Display LoRaWAN®, top view Diassembled MClimate CO2 Display LoRaWAN®, back view Secure screw hole Mounting holes Wall mounting plate, top view... -
Page 6: Display's Content
Display’s content The image below has all visible elements of the display activated. Description The 2.9” e-ink display supports fast partial refresh. Full refresh is performed every 12 hours (period can be adjusted via a downlink) to avoid the e-ink Current CO2 reading phenomena “image sticking”... -
Page 7: Buttons
Buttons Assembled MClimate CO2 Display Assembled MClimate CO2 Display LoRaWAN®, top view LoRaWAN®, bottom view Button Function Check Check current readings. After you check, depending on the configuration, you have to wait certain time until next check. Clicking the button also triggers and uplink. Reset When pressed for 10s the device resets, triggering another Join Request on SF9. -
Page 8: Behavior
Behavior Start-up behavior Using multiple energy sources The device starts when you press the Reset button The CO2 Display has three options for power supply: on the back one time. - Organic Solar Panel At startup, the device measures the voltage of the - USB-C supercapacitor, which... -
Page 9: Commissioning
Commissioning Continue the Installation with the instructions Before you install the device, we highly recommend of your LoRaWAN® Network provider. that you first commission it on your LNS. Once the RESTART button is pressed, the device will initiate a LoRaWAN Join Procedure on SF9. Please, make sure you enable ADR in your LNS and/or mark the device as static. -
Page 10: Placement Guidelines
Placement guidelines Do not place the device in direct sunlight, as this will result in gradual worsening of the performance of the solar panel. A few hours a day in direct sunlight wouldn’t be an issue. >20cm 150cm... -
Page 11: Installation
Installation We recommend installing the device in an open environment (e.g. not in a recess) at 1.5m height. Do not install the device near big metal items as it will worsen the RF performance. Use double-sid- ed tape to attach it to the surface or screws and dowels to attach the anti-theft bracket in a more permanent manner. - Page 12 www.mclimate.eu Designed & Manufactured by MClimate in Europe. last update: 28.05.2024...
