Apex Digital APX-DLI-EC Manual

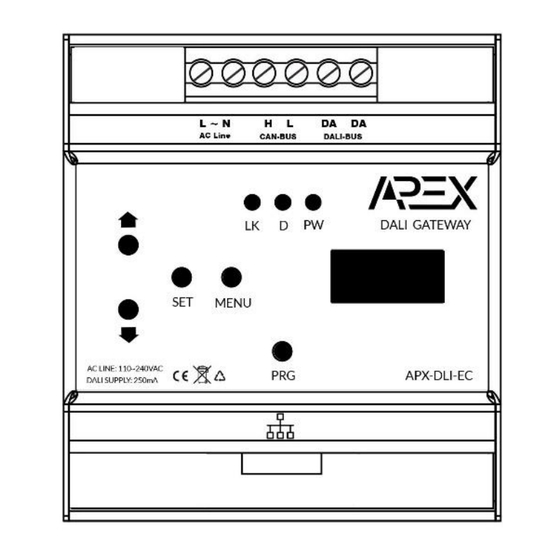

DALI GATEWAY
The APEX DALI Gateway is a sophisticated interface designed for professional light control,
seamlessly integrating with the smart home systems like Control4, Fibaro or ... (SDDP Support).
Supporting DT6, DT8 devices, this gateway allows for manual operation through a 3-digit LED
display and offers an integrated web server for easy configuration of all DALI drivers, scene
creation, and group management. Once configured, it's ready for integration with Composer Pro
for Control4.
Key Features:
•
Device Connectivity: Connect up to 64 DALI members to a single DALI output, with
individual control of each member.
•
Group Management: Switch, dim, or set defined values for up to 16 groups, enhancing
flexibility in light control.
•
DALI Support:
DT6: Supports all types
o
DT8 (Standard DALI2): Supports single-channel RGB, multi-channel RGB+CCT
o
(two addresses), and tunable white (TC).
•
Status and Error Visualization: Provides real-time status and error information for
enhanced monitoring and control.
•
Manual Operation: Allows direct control via a 3-digit LED display for easy operation.
•
Built-in Power Supply: Includes a 250mA DALI power supply, eliminating the need for
external power sources.
•
Scene Module: Manage up to 16 different groups, each with unique settings and scenes.
•
Integrated Web Server: Simplifies the configuration process and allows for firmware
upgrades.
