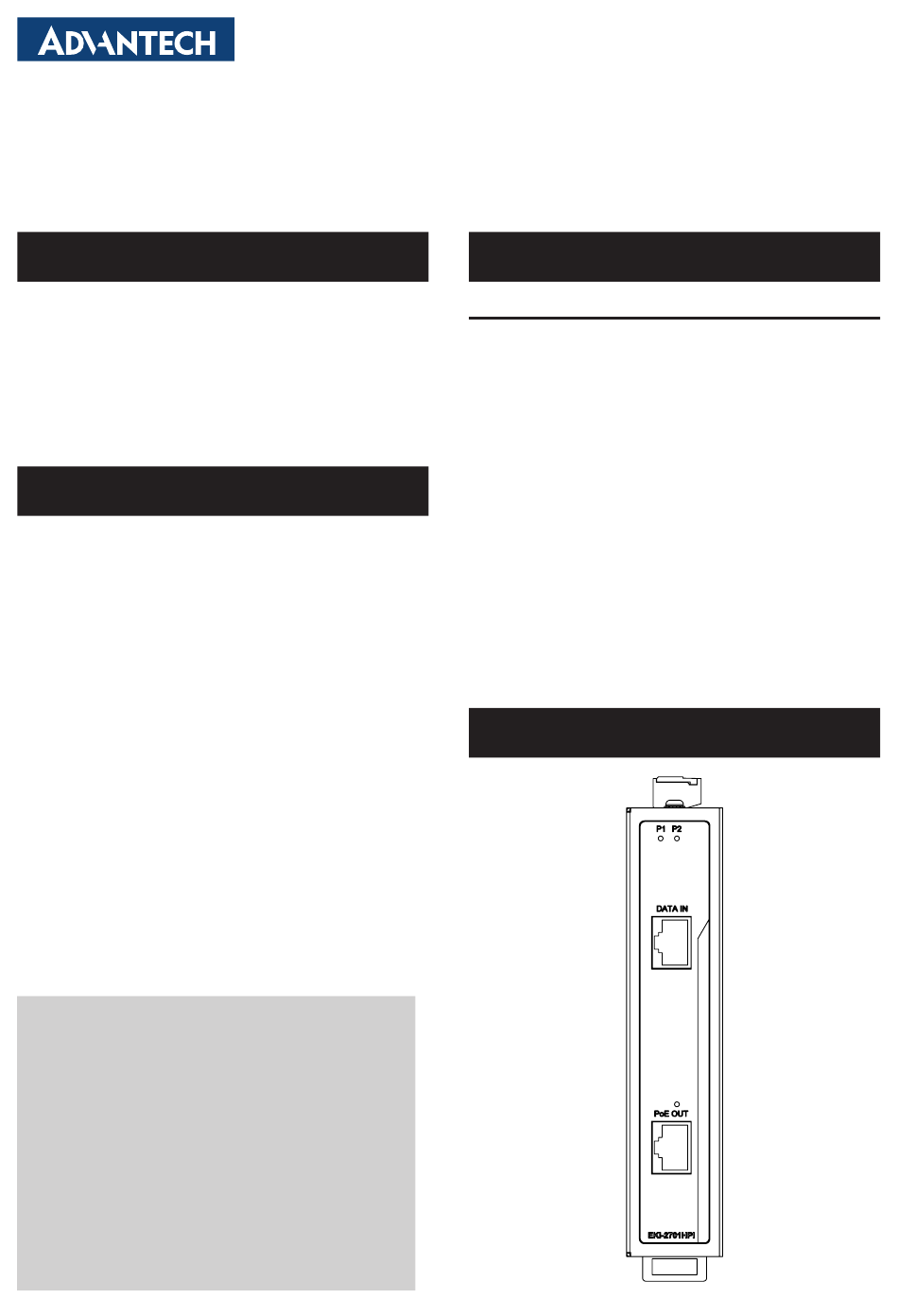

EKI-2701HPI
Industrial IEEE 802.3at Gigabit PoE Injector
Startup Manual
Overview
The EKI-2701HPI is a one-port PoE injector designed to
deliver both data and electrical power to Ethernet-enabled
devices using a single Ethernet cable.
Capable of supplying up to 30 watts of power through its
Ethernet port, it can efficiently power IEEE 802.3af/at PoE
compliant devices such as wireless access points and IP
cameras, thereby eliminating the need for additional wiring.
Packing List
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2701HPI PoE Injector
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 8 screws (M3 x 5L)
• 1 x EKI-2701HPI Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://www.advantech.com/support
This manual is for EKI-270IHPI.
Part No. 2002270101
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3ab, 802.3af,
802.3at
• LAN: 10/100/1000Base-T(X)
• Ethernet RJ-45: Up to 100 m
• Connectors: 2 x 10/100/1000Base-T(X) (DATA IN x1 +
PoE OUT X1)
• Power Input: 24~48V
• Power Consumption: 33.6W @ 24V
• Dimensions (W x H x D): 30 x 140 x 95 mm
• Enclosure: IP30
• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: UL508
• EMC: CE, FCC Class A
• Warranty: 5 years
Overview
Edition 1
August 2024
, redundant power
DC
DC
EKI-2701HPI Startup Manual 1
Advertisement
Related Manuals for Advantech EKI-2701HPI
Summary of Contents for Advantech EKI-2701HPI
- Page 1 Industrial IEEE 802.3at Gigabit PoE Injector Startup Manual Overview Specifications General The EKI-2701HPI is a one-port PoE injector designed to deliver both data and electrical power to Ethernet-enabled • Compatibility: IEEE 802.3, 802.3u, 802.3ab, 802.3af, devices using a single Ethernet cable. 802.3at Capable of supplying up to 30 watts of power through its • LAN: 10/100/1000Base-T(X)
- Page 2 DIN-rail Mounting No PoE Output 1. Installing the DIN-Rail Mounting Kit. Power Connection The EKI-2701HPI injector supports dual +24~48 V power inputs. For operation, connecting either power V1 or V2 to the switch is sufficient. If both sets are connected, it enhances redundancy. In the event of a power resource...
- Page 3 1. Secure the wall brackets to the device with M3 screws, see the following figure. Align the wall mount plate over the screw on the wall. 2. To mount the wall plate, use screws of the size shown in the following illustration. Wall Mounting Screw Dimensions EKI-2701HPI Startup Manual 3...
