ICC ICCMSLAWS2 Installation Instructions

I N S T A L L A T I O N
IMPORTANT: Before you start, please plan on how the ladder rack system is to be configured.

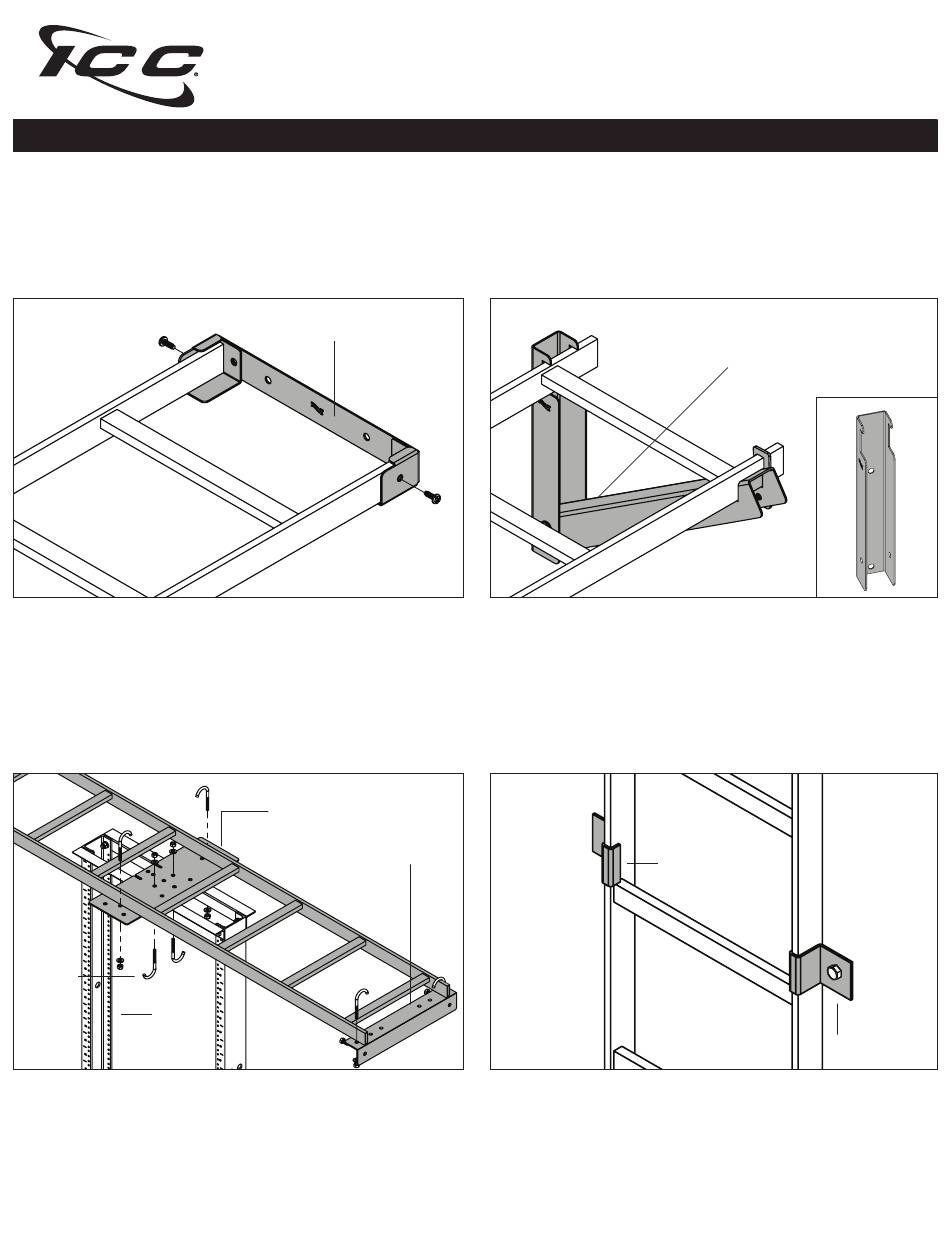

How to Mount Ladder
Wall Support Bracket, Perpendicular
Part No.: ICCMSLAWS2
• To mount ladder rack runway to the wall
• Includes 2 brackets and 4 #12-24 x 5/8 screws
• Wall fasteners are not included
• Hole size for mounting to the wall is 0.35"
Note: Drywall can not support the weight of ladder rack
5' Ladder Rack Kit, Perpendicular
J-Bolt
Rack
Part No.: ICCMSLRW05
• To route cable from rack to wall
• Includes a 5' ladder rack, a relay bracket, a wall bracket,
2 J-bolts and 2 end caps
• Hole size for mounting to the wall is 0.35"
© Copyright 2018, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved.
Ladder Rack System
Wall Support Bracket
Relay Rack Bracket
Wall Support Bracket
888-ASK-4ICC csr @ icc.com
I N S T R U C T I O N S
Wall Support Triangle, Parallel
Wall Support Triangle
Part No.: ICCMSLTWS6
• Includes 6 Wall Support Triangles and 2 #12-24 x 5/8 screws
• Wall fasteners are not included
• Hole size for mounting to the wall is 0.35"
Note: It is recommended to install a wall support triangle every 5'
Wall Support Bracket, Vertical
Wall Bracket
Part No.: ICCMSLVWBK
• To secure ladder rack runway flat against the wall
• Includes 2 brackets
• Wall fasteners not included
• Hole size for mounting to the wall is 0.43"
icc.com
2 Mounting Holes
Wall Bracket
MSR-0352-RevH
