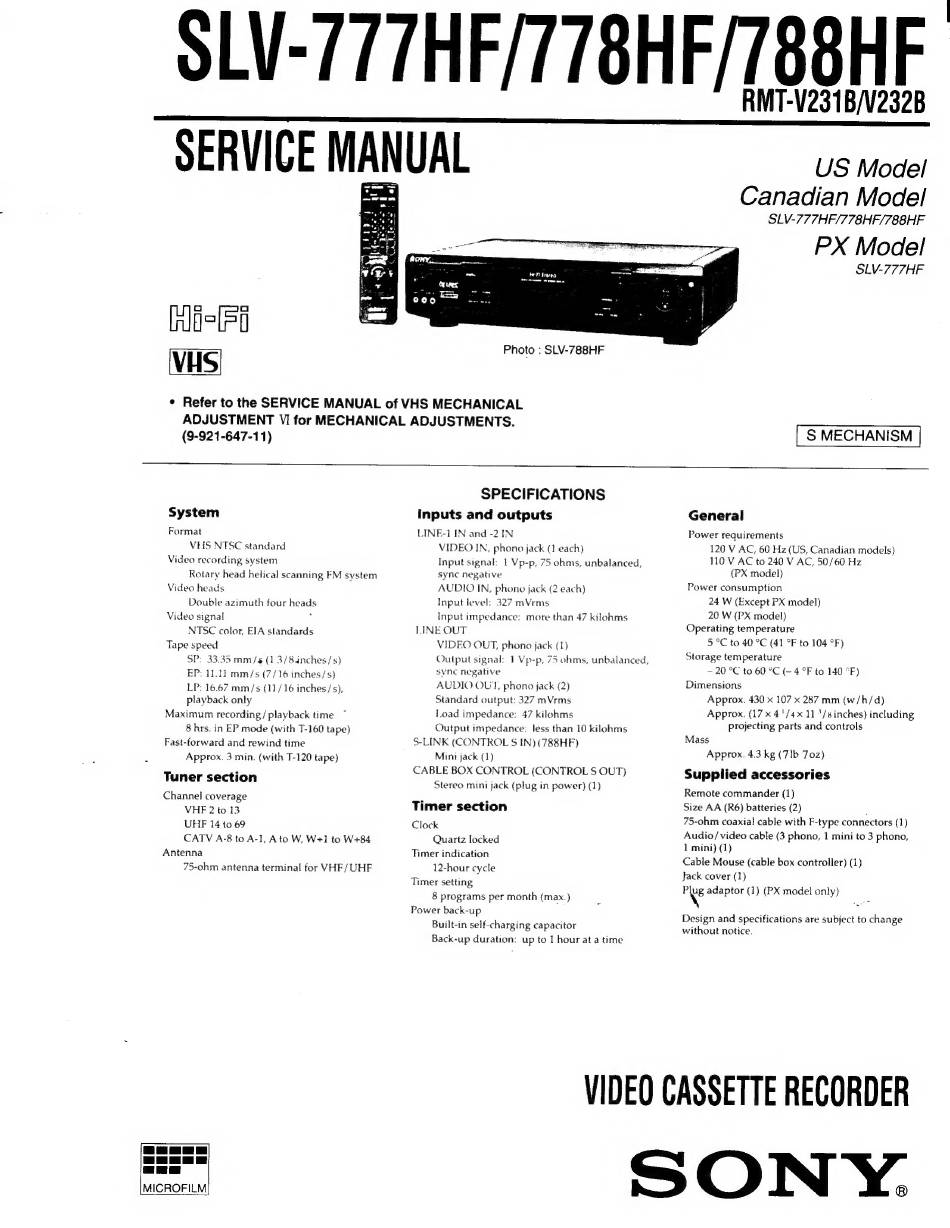

SLV-777HF/778HF/7
Photo : SLV-788HF
* Refer to the SERVICE MANUAL of VHS MECHANICAL
ADJUSTMENT VI for MECHANICAL ADJUSTMENTS.
88HF
T-V231B/V232B
US Model
Canadian Model
SLV-777HF/778HF/788HF
PX Model
SLV-777HF
S MECHANISM
(9-921-647-11)
SPECIFICATIONS
System
Inputs and outputs
General
Format
LINE-1 IN and -2 IN
Power requirements
VHS NTSC standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Video signal
:
NTSC color, EIA standards
Tape speed
SP: 33.35 mm/s (1 3/84inches/s)
EP: 11.11 mm/s (7/16 inches/s)
LP: 16.67 mm/s (11/16 inches/s),
playback only
Maximum recording
/ playback time
8 hrs. in EP mode (with T-160 tape)
Fast-forward and rewind time
Approx. 3 min. (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF
14 to 69
CATV A-8 to A-1, Ato W, W+1 to W+84
Antenna
75-ohm antenna terminal for VHF
/ UHF
MICROFILM
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO IN, phone jack (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO OUT, phono jack (2)
Standard output: 327 mVrms
Load impedance:
47 kilohms
Output impedance:
less than 10 kilohms
S-LINK (CONTROL S$ IN) (788HF)
Mini jack (1)
CABLE BOX CONTROL (CONTROL $ OUT)
Stereo mini jack (plug in power) (1)
Timer section
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
8 programs per month (max.)
Power back-up
:
Built-in self-charging capacitor
Back-up duration:
up to 1 hour ata time
120 V AC, 60 Hz (US, Canadian models)
110 V AC to 240 V AC, 50/60 Hz
(PX model)
Power consumption
24 W (Except PX model)
20 W (PX model)
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Storage temperature
~ 20 °C to 60 °C (- 4 °F to 140 "F)
Dimensions
Approx. 430 x 107 x 287 mm (w/h/d)
Approx. (17 x 4'/4x 11 */s inches) including
projecting parts and controls
Mass
Approx. 4.3 kg (7lb 7oz)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
,
75-ohm coaxial cable with F-type connectors (1)
Audio/ video cable (3 phono, 1 mini to 3 phono,
1 mini) (1)
Cable Mouse (cable box controller) (1)
Jack cover (1)
Ne adaptor (1) (PX model only)
Design and specifications are subject to change
without notice.
VIDEO CASSETTE RECORDER
SONY.
