Summary of Contents for Minol Zenner Stealth Reader GMIU
- Page 1 Stealth Reader GMIU Users Guide Copyright 2017 Zenner USA Rev 1 Stealth Reader MIU User’s Manual Rev 17A Copyright 2017, Zenner USA Page 1 Confidential...
- Page 2 NOTICES ..............................3 Patents ..............................3 Copying ..............................3 FCC Compliance ........................... 3 Introduction ............................... 4 Quick Tour ..............................4 Procedure .............................. 4 Connecting to the Register ........................4 Supplies/Equipment ..........................4 Installation ..............................5 Considerations ..................Error! Bookmark not defined. Shipping and Handling..........................
- Page 3 NOTICES Patents This product contains Stealth Reader Technologies that are licensed by the manufacturer and are protected by US Patents including: 7782804, 7996534, 8126488, 8351409, 8428558 and 8428630. The furnishing of this document and/or purchasing of the associated products does not give you any license to or ownership of such patents.
- Page 4 Introduction Stealth Reader networks are used for remote monitoring of commercial, industrial, and municipal equipment such as automatic utility metering. Hundreds of thousands of devices are currently being monitored by Stealth Reader networks. Quick Tour The Stealth Reader GMIU is powered by two lithium-thionyl chloride (LiSOCl ) batteries.

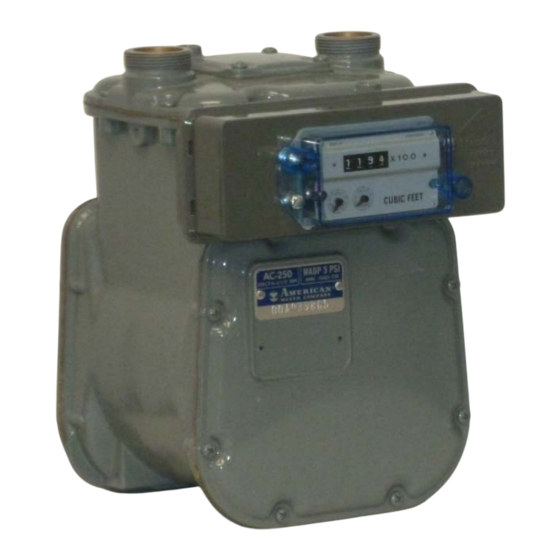

- Page 5 Installation This section covers the installation of the Stealth Reader and the mounting process. American Meter Preparation – American Meter Remove the Register and Index from the gas meter. Scrape the old gasket from the gas meter register areas. Verify that the Index Pin magnet is in place. Insert the Meter Pin through the Stealth Reader GMIU from the rear.
- Page 6 Configuration Stealth Reader installations are performed using a Stealth Handheld. The Stealth Handheld guides installers through the installation process, records the details of each installation, and tests and configures installed Stealth Readers. Whether performing as-needed installations or work-order assigned installations, the process is similar and is described in the SR Handheld Users Guide.
