Hills TRU-SPEC TSP2851 Installation Instructions

TRU-SPEC™ UHF YAGI ANTENNAS
INSTALLATION INSTRUCTIONS
Notes:
1. Installation of this product may expose the installer to physical hazards
such as working at heights above the ground, slippery roofs, overhead or
adjacent electrical wires etc. Plan the installation in advance, taking all
possible precautions and, if in doubt, contact a professional antenna
installer.
2. For best results, mount the antenna outdoors, clear of any obstructions and
in line of sight to the transmitter.
3. Tools required: 10mm spanner, 11mm spanner and a sharp knife.
4. Mounting pole diameter: 25mm – 63mm (1" – 2½")
Instructions:

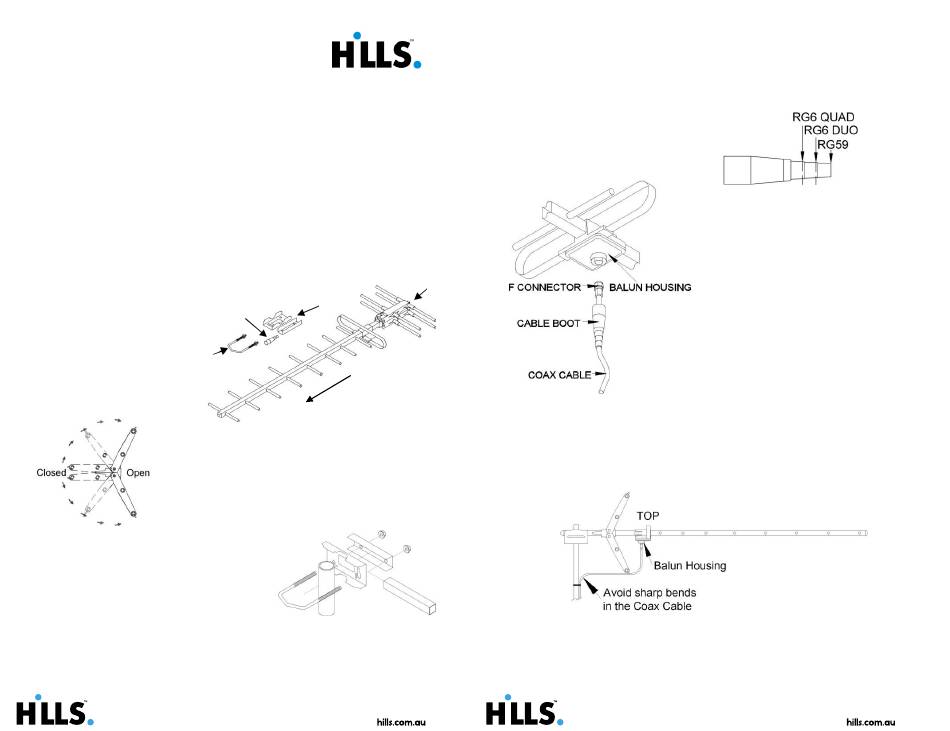

1) Unpack the antenna
from its box and check
that all items are
included as per
Figure 1.
U-bolt &
nuts
2) Rotate the reflectors as shown until they lock
into place (Figure 2).
Figure 2
3) Assemble the mast clamps, U-bolt and
flange nuts as shown in Figure 3. The
clamp should be positioned behind the
reflectors on the antenna boom. Mount
the antenna to the pole. Ensure the
elements are aligned for the correct
signal polarisation and, if horizontal
polarisation, that the balun is on the
underside of the boom.
Clamp
brackets
Cable
boot
Towards
transmitter
Figure 1
Figure 1
Figure 3
4) Trim the cable boot as shown in Figure 4. A neat trim will minimise water
ingress. Slide the boot onto the cable
and fit an F-type connector (not
included), as per the manufacture F r ig 's ure 4
instructions.
Reflector
6) Aim the antenna towards the transmitter and tighten the nuts on the clamp
bracket with a 10mm spanner. Tie the cable to the mounting pole, being
careful to avoid sharp bends – refer to the manufacturer's data for the
minimum bending radius of the cable.
5) Screw the connector onto the
balun, being careful not to over-
tighten (recommended torque is
20 in-lbs). Slide the cable boot
over the connector.
Figure 5
Figure 6
