Summary of Contents for LENCO TFT-1020

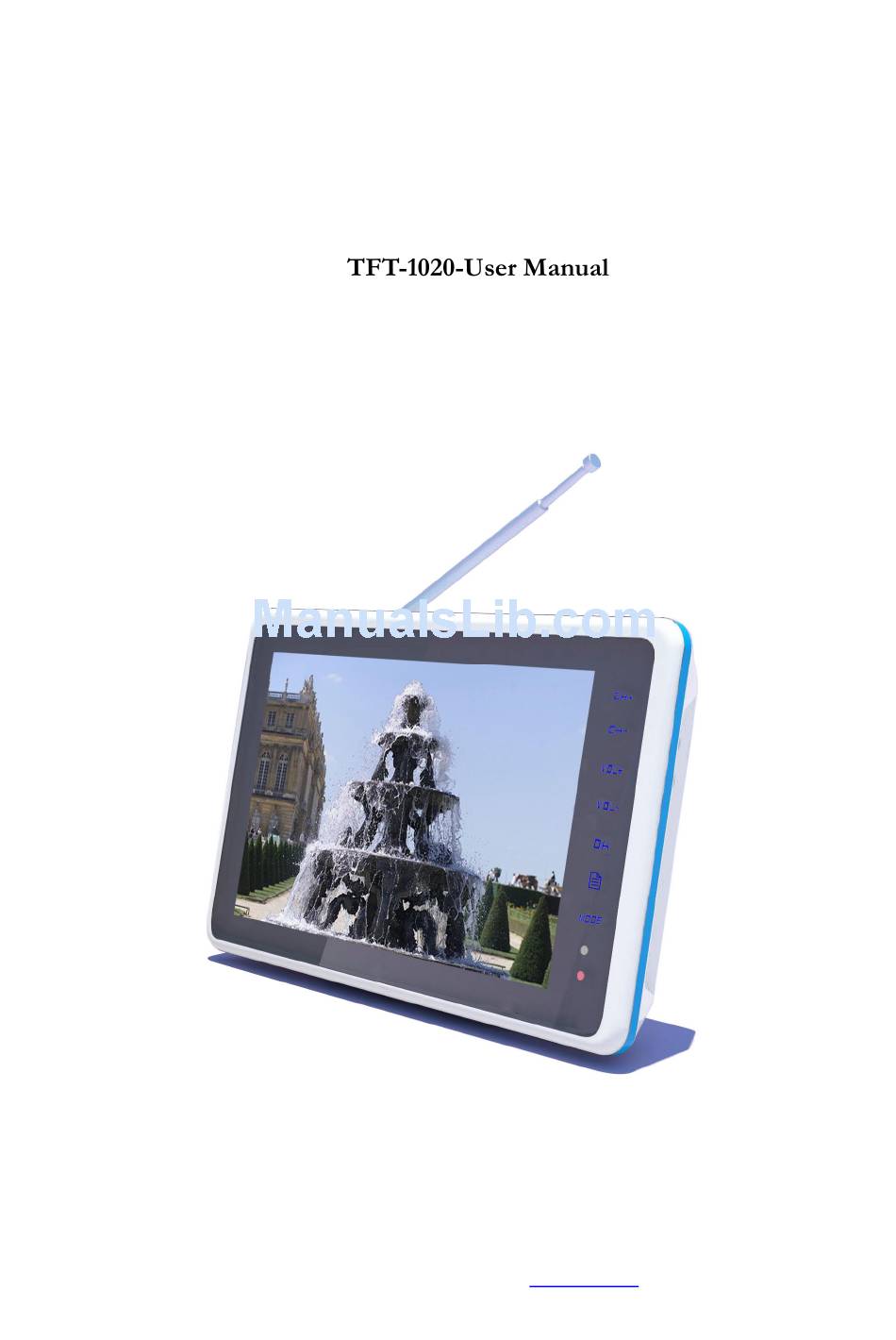

  • Page 1 LENCO TFT LCD DIGITAL AND ANALOG TV For information and support, www.lenco.eu...
  • Page 2 Warning Important Notes on Safety Before you use this product, please read carefully the corresponding parts about the signs on the product you have bought and keep it properly for future reference. This sign indicates that there is Electric shock, do not open dangerous high voltage inside, and it is Note: In order to reduce electric shock, please do not take dangerous to contact any component...
  • Page 3 Do not insert any metal object into the holes of this television. Otherwise it may lead to the danger of electric shock or the damage of the television. In order to avoid electric shock, do not contact the inside of this television. Only qualified technical personnel can open of the cover of this television.
  • Page 4: Table Of Contents

    GENERAL INFORMATION ABOUT THE TFT-1020 ..................1 QUICK GUIDE ................................2 TFT-1020 ............................2 LUG IN YOUR ........................2 REPARING THE EMOTE ONTROL 1. PANELS..................................3 1.1 F ........................3 RONT PANEL AND SIDE PANELS 1.2 F ......................4 RONT PANEL TOUCH KEYS DEFINITION 2. INTRODUCTION ..............................5 2.1 C...
  • Page 5: General Information About The Tft-1020

    GENERAL INFORMATION ABOUT THE TFT-1020 TFT-1020 is a portable digital TV set; it can be used in a car or outdoor. Throughout this manual you will notice that everyday operation of your TFT-1020 is based on a series of user friendly on-screen displays and menus.
  • Page 6: Quick Guide

    1. Plug one end of the power cord into the AC outlet. 2. Plug the cable attached to the AC adapter into the DC in port on the TFT-1020. Before using the remote controller, you need to insert the supplied battery in order to enable communication between the TFT-1020 and remote controller.
  • Page 7: Panels

    1. PANELS 1.1 Front panel and side panels 1.Screen 2. SD/MMC/MS CARD jack 3. USB jack 4. Power switch 5. Power supply jack 6. VGA input jack 7. Video input jack (CVBS) 8. Audio input jack (white port is left) 9.
  • Page 8: Front Panel Touch Keys Definition

    , and MODE) 15. Front panel touch keys (include CH+, CH-, VOL+, VOL-, OK, 1.2 Front panel touch keys definition CH+: Move up in the menus and change to the next channel in viewing mode. CH-: Move down in the menus and change to the previous channel in viewing mode. VOL+ Move left /change settings in menus.
  • Page 9: Introduction

    2. INTRODUCTION 2.1 Check list The box for your TFT-1020 should contain the following items: The TFT-1020 machine Owner’s manual Remote control Headphone Power supply adapter (AC adapter) Car Power Adapter Accessorial Antenna 2.2 About transmission Buildings, mountains and the surrounding terrain can block Radio and TV signals. Depending on whether the receiver is located in a valley, behind a mountain or in a concrete building, the quality of reception may vary considerably.
  • Page 10: Connecting The Tft-1020 To The Tv

    2.4 Connecting the TFT-1020 to the TV Connect the TFT-1020 AV input socket for video and audio. Connect the TFT-1020 Headphone jack to the TV audio input socket for sound. 2.5 Connecting the accessorial antenna and the external antenna. Align the telescopic antenna...
  • Page 11: Installing Stand

    2. 6 Installing Stand Insert the front end of the support to the slot on the back cover, and then rotate the base as illustrated in bottom, until the support is locked properly. In order to storage remote control more expedient, insert the remote control to the slot on the back stand.
  • Page 12: Remote Control

    3. REMOTE CONTROL 3.1 Definition This section describes how to operate the TFT-1020 using the buttons on the remote control. To operate the favorite channels (DVB and ATV Function mode) Mute Press once to turn the sound off/on (mute/ unmute).
  • Page 13: Preparing The Remote Control

    Cursor up button, move up in the menus and change to the next channel in viewing mode. Cursor down button, move down in the menus and change to the previous channel in viewing mode. Press to open the picture mode menu. Cursor left button, move left /change settings in menus.
  • Page 14: Navigating With Menus

    4. Press left/right cursor buttons adjust the sound volume of the TV ! Attention: The following describes the functions of your TFT-1020 while watching Analog TV and terrestrial digital TV. Some of the functions described here are dependent on the Service Provider and can only be used if they are included in the transmitted program information.
  • Page 15 You can select how the picture mode shall be sorted. There are four sort mode (personal, standard, dynamic and soft.) are used here. Figure 4.2.1 Brightness Left/right cursor buttons adjust the brightness of the screen. Contrast: adjust the contrast of the screen. Color: adjust the color of the screen.
  • Page 16 Figure 4.2.2 Bass Left/right cursor buttons adjust the bass of the screen. Treble: adjust the treble of the screen. Balance: adjust the balance of the screen. Audio channel: Left/right cursor buttons adjust the audio channel: Stereo, L and R Prefer Language: Left/right cursor buttons adjust the prefer language: English, German, Danish and so on.
  • Page 17 Figure 4.2.3 Menu Language: Left/right cursor buttons adjust the screen: English, Dutch, French, German, Italian, Portuguese, Spanish . Zoom Mode: Left/right cursor buttons adjust the screen: 16:9, 4:3 Battery Information: right cursor buttons enter the battery information. ! IF the Machine charge battery, the Battery Information menu can′t select. Select Country: Left/right cursor buttons adjust the screen: Germany, French, Poland, Portugal, Russia and so on Restore Default: Press the Left/right cursor buttons to enter next step, and press OK key...
  • Page 18 ! Clock setting menu only DTV mode, : (Only DTV mode) To open this menu you will be asked to enter your access code. From the factory the access code is set to 0000. After set, the access code has to be entered before you can watch locked channels and change the password.
  • Page 19 :( Under the DTV mode) Under the search menu, when you want to search for channels, a channel search procedure can be performed in different ways at Automatic Search and Manual Search. And you can edit favorite or skip channel lists in this menu. If you edit channel favorite list ON, Press the FAV button can display the favorite List.
  • Page 20 :( Under the ATV mode) Figure 4.2.8 Program Search menu under the ATV mode only add color system and sound system submenu. Color System: Left/right cursor buttons adjust the screen: AUTO, PAL, SECAM Sound System: Left/right cursor buttons adjust the screen: BG, DK, I, L ! If the Program List menu does not exist .
  • Page 21: Special Features At The Dtv Mode

    Press OK button to select YES; Figure 4.2.10 Press OK button to select Country at the standard of local TV system .and Press CH+/CH- buttons to select other items. Set Language menu and Time Zone too. ! The region item is decided by the signal of different country’s broadcasting companies. Special Features at the DTV mode Pressing EPG key will open the EPG page.
  • Page 22: Audio And Video Input

    4.3 Audio and video input First just inset the plug of the external video cord into yellow jack, and left audio plug into the white port and right audio plug into the red port. Press the key to the AV mode, the screen display video play and music. Figure 4.3.1 ! Attention: in the AV and VGA mode the operate menu have a little difference compare...
  • Page 23: Multimedia

    4.5 Multimedia ! Attention: Make sure the memory card into the right slot. If the card is improperly inserted, it may not function properly. Press Mode key at the remote control or front panel, and Press CH+/CH- buttons to select multimedia, press OK button enter.
  • Page 24 In the music play interface, choose the file and press OK key playing. And press VOL+ key to music control submenu. Press menu key to return main interface. Figure 4.5.3 Photo:At the function select interface, use the VOL+/VOL- to move the cursor to icon and press OK key enter.
  • Page 25: Maintenance

    Figure 4.5.5 5. MAINTENANCE 5.1 Handling your TFT-1020 1. Do not drop the machine or heavy objects on top of the TFT-1020 2. Do not place the machine in a location subject to: Heat sources, such as radiators or air ducts, 3.
  • Page 26: Considerations About The Screen

    5.2 Considerations about the screen 1. Please read the details of this guidebook before using, and store safely in case use another day. 2. You may see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD. LCD has a very few (0.01%) unlit pixels and always lit pixels. You may also see distortion in colours or brightness depending on your perspective.
  • Page 27: Care Battery

    2. Do not share the AC outlet with other power-consuming equipment, such as a photocopier or shredder. 3. You can purchase a power strip with a surge protector. This device prevents damage to the machine caused by sudden power surges, in an electrical storm. 4.
  • Page 28: Troubleshooting

    6. TROUBLESHOOTING Problem Possible causes What to do Check that the mains cable is plugged into the power socket Mains cable is not conn- Make sure the battery is ected. installed properly charged. The LED does The battery isn’t installed not light up/is not lit.
  • Page 29: Technical Specifications

    Picture or video doesn’t full The resolution of the files Change the files screen not suitable 7. TECHNICAL SPECIFICATIONS Model TFT-1020 Name LCD Model Size 10.2-inch Digital TFT LCD LCD Panel Active area 222.0(W) ×132.48(H) mm Resolution 800*RGB x480...
  • Page 30 Battery input 100V 240V±10%, 50~60Hz 0.55AMAX External power Power consumption ≤18W supply DC power to the TFT-1020 9V 2A Operating temperature 0° C to +40° C -20° C to +65° C Storage temperature 25% to 75% rel. humidity Front panel Seven touch keys Dimensions (w×d×t)
