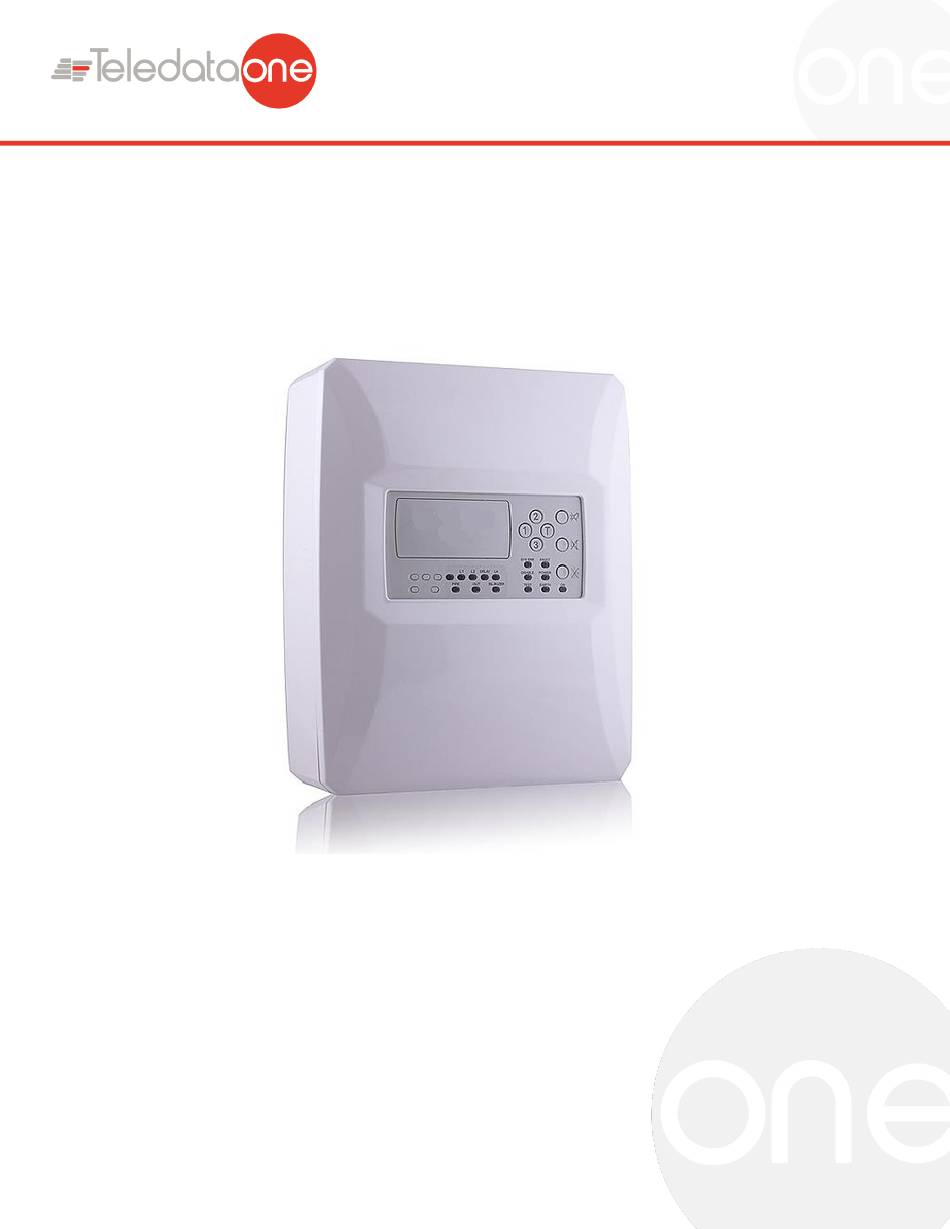

- Page 1 Fire conventional panel FD 9000L - 2/4/6/8 Installation, setup and operation. Rev 05:24...
-
Page 2: Table Of Contents
FD9000L-2/4/6/8 FD9000L-2/4/6/8 CONTENTS: INTRODUCTION TECHNICAL PARAMETERS CONTROLS AND INDICATION FACTORY SET PARAMETERS INSTALLATION AND PANEL SETUP LEVELS OF ACCESS PANEL CONDITIONS CONDITIONS FOR USE, STORAGE AND TRANSPORT CONTENT AND COMPLEX OF DELIVERY WARRANTY Page 2 of 16... -
Page 3: Introduction
FD9000L-2/4/6/8 1. INTRODUCTION FP9000L-2/4/6/8 is a conventional Fire alarm panel with 2, 4, 6 or 8 lines. Certified to standards EN 54-2 and EN 54-4. Each line can be connected to 32 detectors. The panel has 4 relay outputs, 2 of which are controllable and one relay. The outputs may have a delay of seven minutes. -
Page 4: Power Supply
FD9000L-2/4/6/8 3А/125V AC, Electrical characteristics 3A/30V DC Independent relay output in case of failure: Quantity potentional- Type NC / NO free, switching 3А/125V AC, Electrical characteristics 3A/30V DC Delay outputs: Time delay of switching outputs 0 ÷ 7 minutes POWER SUPPLY Mains power Voltage (187-252)V AC... -
Page 5: Controls And Indication
FD9000L-2/4/6/8 interruption) and automatic reset; Ability to delay controllable and general outputs for fire for a period of 0 to 7 minutes after the registration of state Fire,with DIP switch.; Built-in sounder in case of fire – monotonal, continuous with the possibility of exclusion; Test mode of each (fire alarm) lines;... - Page 6 FD9000L-2/4/6/8 When in Disabled component / line or controllable output / a steady “DISABLE” yellow light will light up. Illuminates with steady yellow light at short or interruption of output “OUTS” devices power supply line “DEL OUTS” Continuous yellow light at preset delay of connected outputs “BUZZER SILENCE”...
- Page 7 FD9000L-2/4/6/8 Keyboard entry mode: Information and Levels 1 - Changing the access level. management and 2 - Disable mode - Test mode Keyboard entry mode: Information and - Changing the access level. Levels 1 management and 2 - Disable mode - Test mode 5.
- Page 8 FD9000L-2/4/6/8 Fig.1 One line can allow the installation of up to 32 Fire detectors generally, regardless of their type. To the unused lines, directly to the terminals mount the final element "EOL", otherwise the lines will be able in Fault condition. FIRE LINES - Parameters.
- Page 9 FD9000L-2/4/6/8 Delay Outputs In the panel can be set to delay outputs with DIP switch on Level 3. DIP-4 123S 000X - without delay outputs 001X - 1 minute delay 010X - 2 minute delay 011X - 3 minute delay 100X - 4 minute delay 101X - 5 minute delay 110X - 6 minute delay...
- Page 10 FD9000L-2/4/6/8 Fig. 3 If controllable outputs are not used, directly to terminals "+Outx", "-Outx" a resistor 4,7k/0,5W is connected, otherwise the outputs will be in Fault condition. 5.3.2. Installation of the executive devices to RELAY OUTPUTS. Used: Terminal "+28VDC" - positive lead of the stabilized direct voltage for external devices (light and sound signaling devices, executive devices, etc.
- Page 11 FD9000L-2/4/6/8 FIRE/C" and "REL FIRE/NC " and in case of Fire - between terminals "REL FIRE/C" and "REL FIRE/NO ". Fig. 8 If relay outputs are not used, then its terminals remain free (nothing is connected to them). Outputs - Programming and parameter setting outputs for executive devices. 5.4.
-
Page 12: Levels Of Access
FD9000L-2/4/6/8 voltage of both batteries must be greater than 17,6 V, otherwise the panel does not recognize them. Thermal sensor in the panel place in the battery. With it you monitor the temperature and control the mode battery charge. If everything is done correctly and the lines parameters are within the factory settings, the panel enters Duty Mode. -
Page 13: Fire Condition
FD9000L-2/4/6/8 Available are the following panel’s features: all possibilities from Levels 1 and 2 Replacing a burnt fuse; on / off communication through interface RS485; delay outputs; Add additional relay module M9000R. Access Level 4 This is the level of access for persons who are trained and authorized by the manufacturer to repair the panel and modify the software. - Page 14 FD9000L-2/4/6/8 Fault in a controllable output - short circuit or break; Damage to the mains; Fault in backup batteries; Short circuit or leakage to ground wire; Fault in power lines; Fault in power supply for external devices; Fault in network or transmission device. When systemic failure processor can not continue.
-
Page 15: Test Condition
FD9000L-2/4/6/8 4. With button “1” is selected or the line output; 5. With button “T” is confirmed; 6. Double click T out of the programming mode Disable; 7. Exit setup Disabled 2222. LED indication - light indicators: - "DISABLE" lights up with a constant yellow light - "1 2 3 4 5 6 7 8"... -
Page 16: Warranty
FD9000L-2/4/6/8 -10°C to 50°C - transport from -5°C to 40°C - working from Relative humidity - storage to 80% - working to 93% Transport The panel is transported in covered vehicles, in factory packing and in the above atmospheric conditions. 10.
