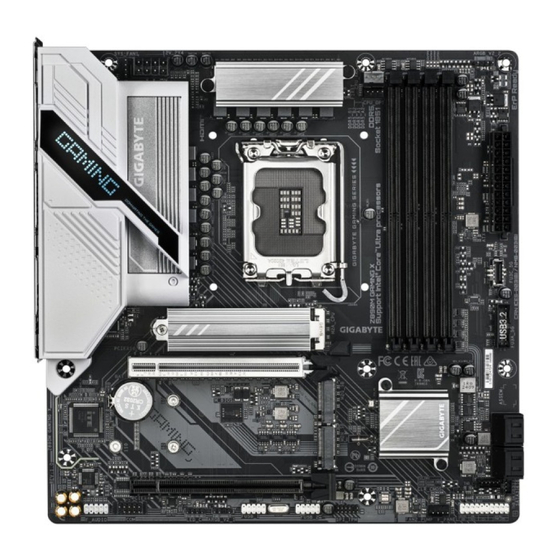

Z890M GAMING X
User's Manual
Rev. 1002
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z890M GAMING X and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte Z890M GAMING X

Summary of Contents for Gigabyte Z890M GAMING X

  • Page 1 User's Manual Rev. 1002 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
  • Page 3 Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ................... 4 Box Contents ...................... 5 Chapter 2 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU and CPU Cooler ..............10 Installing the Memory ..................13 Installing an Expansion Card ................
  • Page 4 Chapter 1 Product Introduction Motherboard Layout ARGB_V2_2 12V_2X4 CPU DRAM PS2_USB CPU_FAN SYS_FAN1 VGA BOOT CPU_OPT DUAL_DP LGA1851 HDMI21 U3A_5G U35G_LAN1 FU3C_5G Realtek® 2.5GbE LAN FU3A_5G AUDIO PCIEX16 ® Super I/O M_BIOS Intel Z890 ® CODEC PCIEX4 THB_C1 FUSB_1 SPI_TPM LED_C F_AUDIO FAN2_PUMP...
  • Page 5 Box Contents 5 Z890M GAMING X motherboard 5 User's Manual 5 Quick Installation Guide 5 Two SATA cables 5 M.2 screws 5 One pack of M.2 thick/thin rubber pads * The box contents above are for reference only and the actual items shall depend on the product package you obtain.
  • Page 6 Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...
  • Page 7 2-2 Product Specifications LGA1851 socket: Support for Intel Core Ultra Processors ® ™ Š (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Š Chipset Intel Z890 Express Chipset ® Š Memory Support for DDR5 6400/5600 MT/s memory modules Š...
  • Page 8 Š 1 x USB 3.2 Gen 1 header Š 2 x USB 2.0/1.1 headers Š 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in ™ ™ Š card only) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ Š...
  • Page 9 Micro ATX Form Factor; 24.4cm x 24.4cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. & Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version of apps.
  • Page 10 Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 11 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
  • Page 12 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.
  • Page 13 Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...
  • Page 14 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.
  • Page 15 Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. DisplayPort (Note) DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission. You can use this port to connect your DisplayPort-supported monitor.
  • Page 16 You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
  • Page 17 Internal Connectors 12V_2X4 F_AUDIO FU3C_5G CPU_FAN FU3A_5G SYS_FAN1 FUSB_1/FUSB_2 FAN2_PUMP SPI_TPM CPU_OPT THB_C1/THB_U4_C2 LED_C ARGB_V2_1/ARGB_V2_2 CLR_CMOS SATA3 4/5/6/7 M2A_CPU/M2Q_SB/M2N_SB CPU/DRAM/VGA/BOOT F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 18 1/2) 12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 19 For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis. The header also provides speed control for a water cooling pump. Please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Smart Fan 6" for more information. Pin No. Definition...
  • Page 20 Incorrect connection may lead to the damage of the LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. Before installing or removing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 21 1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel Chipset supports RAID 0, ® RAID 1, RAID 5, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array. Pin No. Definition...
  • Page 22 M.2 PCIe SSDs. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA hard drive. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
  • Page 23 Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
  • Page 24 12) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
  • Page 25 14) FU3A_5G (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer.
  • Page 26 No Pin Data Input Chip Select SPI_TPM S F_ S S_F 17) THB_C1/THB_U4_C2 (Thunderbolt 5 Add-in Card Connectors) ™ The connectors are used to connect to a GIGABYTE Thunderbolt 5 add-in card. ™ THB_C1 THB_U4_C2 F_USB3 F_USB30 3 THB_U4_C2 THB_C1 Supports a Thunderbolt add-in card.
  • Page 27 CMOS values. • After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually configure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's website for more information). - 27 -...
  • Page 28 20) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.
  • Page 29 If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values.
  • Page 30 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.
  • Page 31 OS installation process. Refer to the steps below: Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the Intel SATA Preinstall driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive.
  • Page 32 After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE applications via GIGABYTE Control Center (GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\IO Ports\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.)
  • Page 33 • A USB thumb drive. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA hard drive. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/1090/intel800-raid.html - 33 -...
  • Page 34 Direttive. components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals. European Union (EU) Community Waste Electrical & Electronic Equipment...
  • Page 35 Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
