Observe all local plumbing and building codes.
·
Prior to installation, unpack the new lavatory and inspect it
for damage. Return the lavatory to its protective carton
until you are ready to install it.
·
All information in these instructions are based the latest
product information available at the time of publication.
Kohler China reserves the right to make changes in
product characteristics, packaging, or availability at any
time without notice.
IMPORTANT:
Make sure that the wall and floor are square
and plumb to ensure proper installation.
ORDERING INFORMATION
MAXI SPACE II 800mm Vanity..............................K-24369T-1
MAXI SPACE II 1000mm Vanity............................K-24370T-1
REQUIRED MATERIALS/
(NOT SUPPLIED)
·
Level
·
Drill with
6mm
bit
·
14mm wrench
·
Framing square
·
Channel lock pliers
·
Tape measure
·
Pencil
·
Sealant
ROUGHING-IN
Reference Value
35
75
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
1358590-T01-A
TOOLS
K-24369T-1
380
154
800
MAXI SPACE II
·
·
·
2.0 800mm
2.0 1000mm
·
·
6mm
·
14mm
·
·
·
·
·
450
202
2
528137
8
256410
©
Copyright Kohler China Investment Co., Ltd. 2019
-1-
©

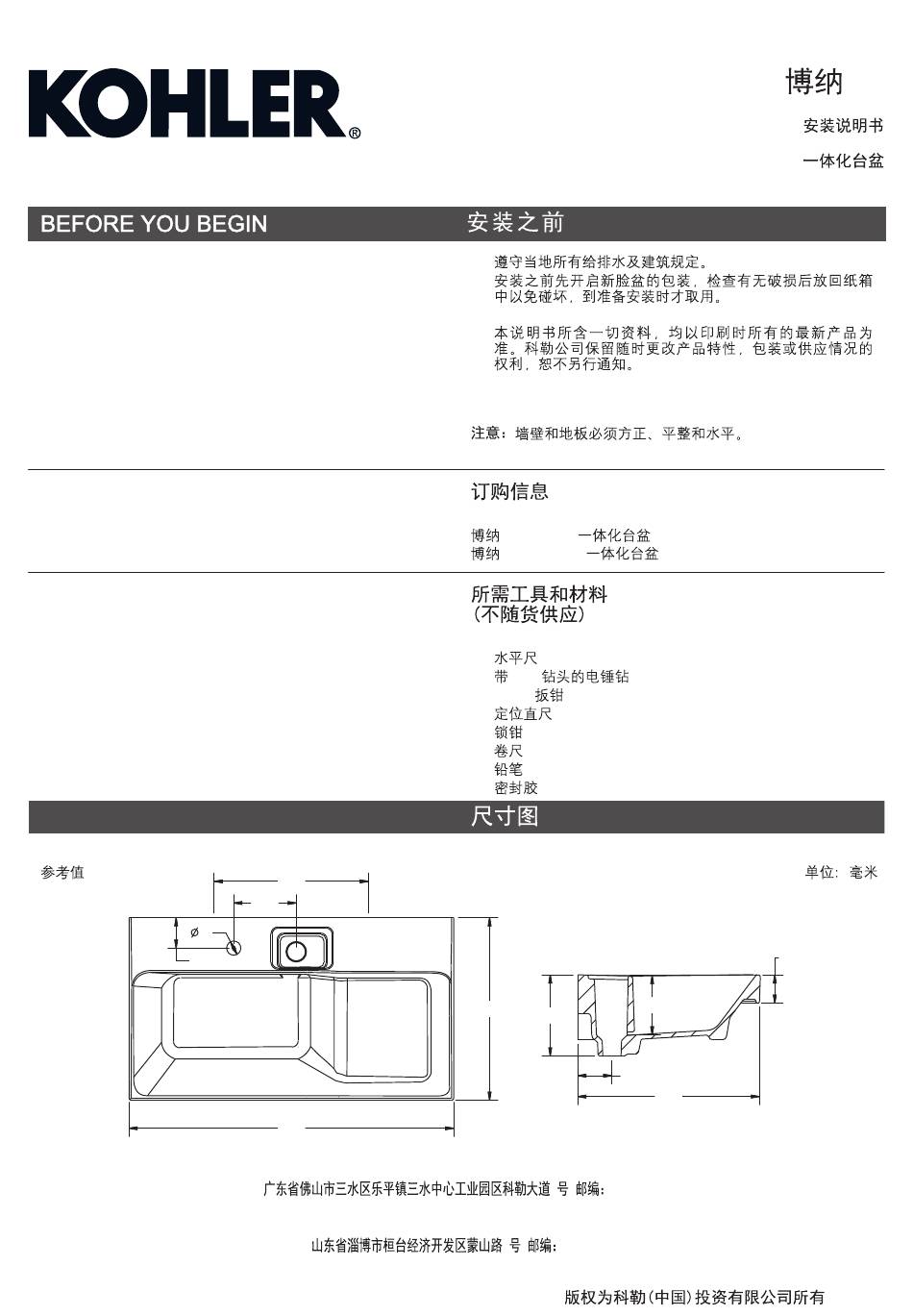

INSTALLATION INSTRUCTIONS
K-24369T-1/K-24370T-1
...................................K-24369T-1
.................................K-24370T-1
70
145
80
447
2.0
VANITY
UNIT: mm
2019
