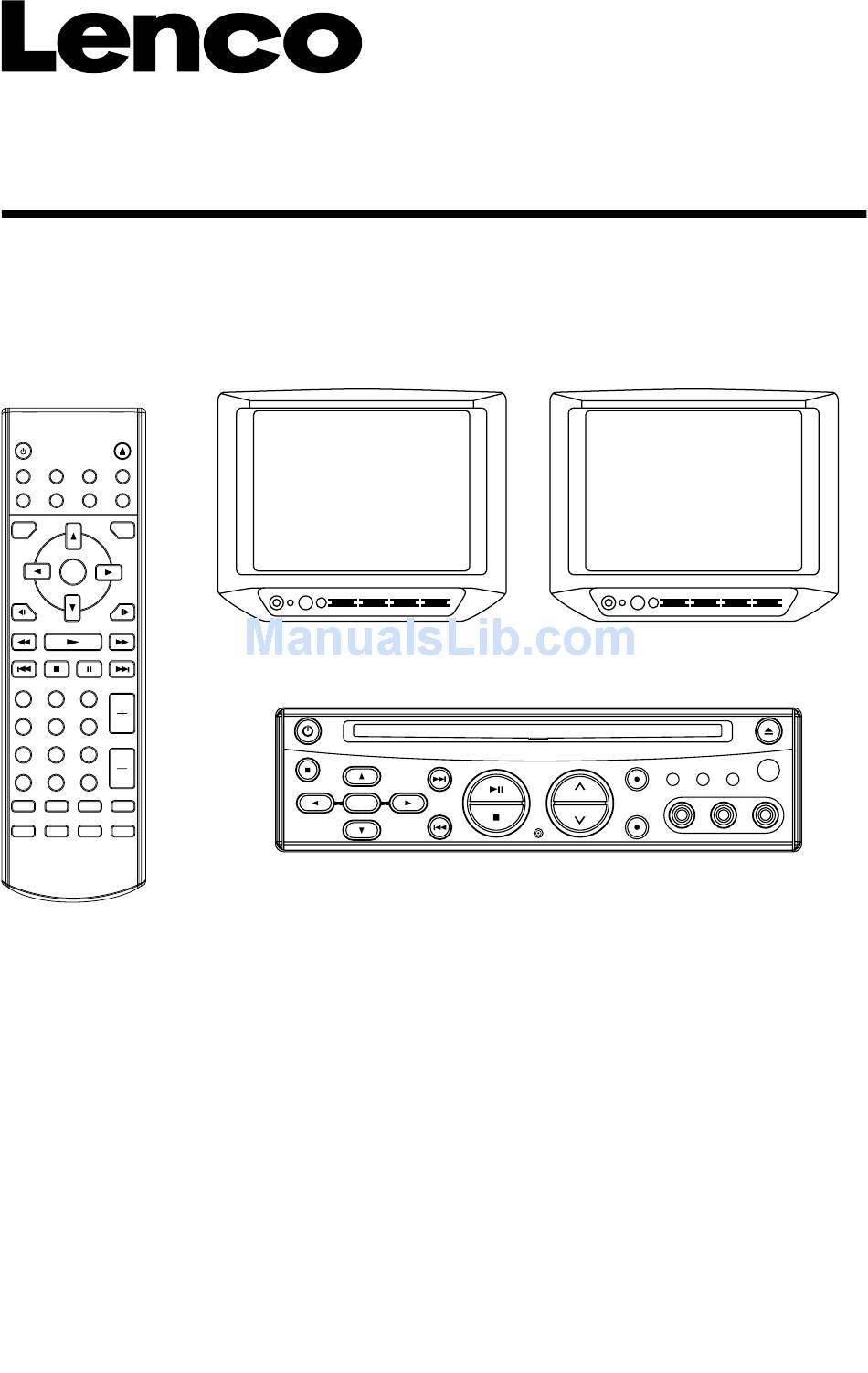

- Page 1 MES208 OWNER’S MANUAL Mobile Video System • Digital Audio Out-Coaxial • 7” TFT LCD Monitor • Multi-subtitle Languages Function • Multi-audio Languages Function • Multi-angle Function • Parental Control • Remote Control...
-
Page 2: Table Of Contents
CONTENTS Pack ..........................3 DVD Features ......................4 Safety Information ......................5 Disc Notes ........................6 Installation........................7 Install the Monitor and DVD Unit to the Mounting Bag ..........7 Install the Mounting Bag With the Monitor and DVD Unit ........8 Method A......................8 Method B ......................8 Electrical Connection....................9 DVD Player ........................11 Remote Control ......................14... -
Page 3: Pack
PACK Examine the contents of the box that you DVD player was packed in. There should be the following: • DVD Player • 2 x 7” TFT LCD Monitor • Remote Control with 2 AAA Batteries • Mounting Bag with 3 additional straps •... -
Page 4: Dvd Features
DVD FEATURES Compatible with PAL DVD (Video CD) Use Authorized Service Centres and NTSC DVD (Video CD) Do not attempt to disassemble or adjust This player can play discs recorded in this precision product. Please refer to either PAL or NTSC format. the Service Centre list included with this product for service assistance. -
Page 5: Safety Information
SAFETY INFORMATION CAUTION: Region Management Information MOBILE DVD PLAYER IS A CLASS I Region Management Information: LASER PRODUCT. HOWEVER THIS This Mobile DVD Player is designed and MOBILE DVD PLAYER USES A manufactured to respond to the Region VISIBLE/INVISIBLE LASER BEAM Management Information that is recorded WHICH COULD CAUSE HAZARDOUS on a DVD disc. -
Page 6: Disc Notes
DISC NOTES Disc formats supported by this player Note these scratches are not an indication of any problem with the player. 12 cm disc Label side up (Single-sided disc only) Video CD 12 cm disc Do not touch the underside 12 cm disc of the disc 12 cm disc... -
Page 7: Installation
INSTALLATION INSTALL THE MONITOR AND DVD UNIT TO THE MOUNTING BAG 1. The monitor is placed on the upper side of the mounting bag. The DVD unit is placed on the underside of the mounting bag. See Fig.1. Fig. 1 2. -
Page 8: Install The Mounting Bag With The Monitor And Dvd Unit
INSTALLATION METHOD B 1. Separate the bag and place DVD unit under the seat. 2. The monitor can be positioned between seats. By using “strap extenders”, the monitor can be mounted on the console between the front seats. Convenient for differentiation, the three “strap extenders” have been marked 1#, 2#, 3#. As shown in Fig.4, stick the 1#, 2# and 3# strap extenders to the proper position of the mounting bag according to the direction of the arrows. -
Page 9: Electrical Connection
ELECTRICAL CONNECTION DVD PLAYER DC 12 V A/V OUTPUT S-VIDEO AUDIO/VIDEO OUTPUT INPUT OUTPUT DIGITAL TYPE REMOTE AUDIO AUDIO VIDEO AUDIO VIDEO REMOTE WIRE (GREEN) PVC CABLE (BLACK) AC/DC ADAPTOR REMOTE WIRE (GREEN) PVC CABLE (BLACK) CAUTION: 1. Put the 9-pin mini din plug (1) into the 9-pin mini din socket (2) at the side of the display. - Page 10 ELECTRICAL CONNECTION DC 12 V A/V OUTPUT S-VIDEO AUDIO/VIDEO OUTPUT INPUT OUTPUT TYPE DIGITAL REMOTE AUDIO AUDIO VIDEO AUDIO VIDEO YELLOW AC/DC VIDEO 2 OUT ADAPTOR WHITE AUDIO 2 L OUT (OPTIONAL) AUDIO 2 R OUT YELLOW VIDEO 1 OUT WHITE AUDIO 1 L OUT AUDIO 1 R OUT...
-
Page 11: Dvd Player
DVD PLAYER FRONT VIEW 15 16 PWR ( 12. VOLUME EJ ( cursor buttons SETUP 14. ENTER AUDIO 15. Indicator Light for DVD SOURCE 16. Indicator Light for AV Disc Slot 17. Indicator Light for STAND BY PLAY/PAUSE( II) 18. VIDEO IN STOP ( ) 19. - Page 12 DVD PLAYER BACK VIEW 23. DC 12V INPUT Socket 28. S-VIDEO Socket 24. DC 12V OUTPUT Socket 29. AUDIO OUTPUT 1 25. AV OUTPUT TYPE Switch 30. VIDEO OUTPUT 1 26. DIGITAL AUDIO 31. AUDIO OUTPUT 2 27. REMOTE Socket 32.
- Page 13 DVD PLAYER This unit is designed for home-use and car-use. When installed on the car, please follow the installation instruction below. SCREW M5X25 SCREW SCREW M4X6 SCREW LOCKED THE UNIT CORE M4X6 Note: 1. First remove the two screws that locket the unit core, then attach the brackets on both sides of unit with screws (M4x6), last install the unit with screws (M5x25).
-
Page 14: Remote Control
REMOTE CONTROL LOCATION AND FUNCTION OF KEYS GB-14... -
Page 15: Preparing The Remote Control
REMOTE CONTROL POWER Press POWER to turn the unit ON or OFF. 2. EJECT Press to eject the disc. 3. MUTE Press to mute the sound. 4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle language DVD disc. 5. ANGLE Changing of the view angle on multi-angle DVD disc. -
Page 16: General Operation
GENERAL OPERATION TURN THE UNIT ON BASIC PLAY STOPPING PLAYBACK After all connections are completed - Briefly press (Stop) button to pre- correctly, press the (POWER) button stop the unit playback, when button on the front panel or on the remote control to turn on the power. -
Page 17: Dvd Video Menu Play
GENERAL OPERATION ADVANCED OPERATION Mute REPEAT PLAY/ PARAGRAPH REPEAT Press MUTE button to mute the sound, PLAY but the disc continues playing. Press Repeat play: when you want to repeat MUTE again or press volume up/down buttons on the front panel or on the play the whole disc or a track or a remote control, sound will resume. -
Page 18: On-Screen Display Function
ADVANCED OPERATION ON-SCREEN DISPLAY FUNCTION time and confirm with ENTER button. Press the CONSOLE button during 1.ENG playback to display the console 3/2.1 information of the current disc on the screen. Item: Audio For DVD: Function: Display the current audio soundtrack language and digital audio output;... -
Page 19: Pal/Ntsc System Selection
ADVANCED OPERATION Note: The function is only effective when the LOGO is shown. That is to say, when Item: Track no disc in, ejecting a disc and in stop mode or pre-stop mode when playing Function: When it is in PBC ON mode, it display “PBC”... -
Page 20: Zoom Function
ADVANCED OPERATION ZOOM FUNCTION according to the disc. When playing DVD, VCD or some data - Some discs only contain one subtitle language. discs which including picture files, if you want to view the some part of the picture Multi-audio Language Function clearer: Press AUDIO on remote control or AUD button on the front panel during... -
Page 21: Special Function For Vcd
ADVANCED OPERATION NOTE: SPECIAL FUNCTIONS FOR VCD • For how to set the “Parental Control” For VCD discs, there is one special level, please refer to “SETUP\LOCK” in function “Program Play” which makes it the following page. different from DVD discs. •... - Page 22 ADVANCED OPERATION • Press or ENTER button to open Press CLEAR button to hide or the highlight folder in the play list or display the control bar. play the audio file in the play list or • When selecting the (Mixed program list.
-
Page 23: Setup
SETUP In the stop mode or when the disc is languages to be selected: Original, playing, press SETUP on the remote English, Spanish, German, Italian, control or on the front panel to enter setup Portuguese, French, Russian, Chinese menu. and Other. •... -
Page 24: Display Setup
SETUP DISPLAY SETUP AUDIO SETUP • When you open the DISPLAY menu, • When you open the AUDIO menu, you you will see the following picture: will see the following picture: DISPLAY AUDIO TV Aspect Dolby Digital Bitstream Display Mode Letterbox Bitstream TV Output... -
Page 25: Lock Setup
SETUP LOCK SETUP password; before you enter into this item, • When you open the LOCK menu, you the system will require you to input the will see the following picture: old password, only the password is correct, can you be permitted to change the password. -
Page 26: Others Setup
SETUP OTHERS SETUP • When you enter into the OTHERS setup page, you will see the following picture. You can change the setting for Load Default and Screen Saver. OTHER Load Defaultl Select Screen Saver Move Select • “Load Default” is used to revert to factory initial settings. -
Page 27: Trouble Shooting
TROUBLE SHOOTING If it appears that your DVD unit is faulty, NO SOUND first consult this checklist. It may be that • Check audio connections. something simple has been overlooked. • If using a HIFI amplifier, try another sound source. Under no circumstances should you try to repair the player yourself, as this NO RETURN TO START-UP SCREEN... -
Page 28: Specifications
SPECIFICATIONS Supply Voltage : 12V DC (11V-15V), test voltage 14.4V, negative ground Current Consumption : Less than 3A Signal System : Compositive video 1.0Vp-p 75 Discs Played : (1) 5”(12 cm) DVD-VIDEO Disc (2) Compact Disc (CD-DA/CD-R/CD-RW/MP3) (3) 5” (12cm) Video CD Audio Output Level : 10k (2 ch 2.0 Vrms) Audio Signal Output... -
Page 29: Monitor
MONITOR GB-29... -
Page 30: Control & Function Keys
CONTROL & FUNCTION KEYS 7 inch COLOR TFT LCD MONITOR POWER Press POWER button (1) to turn on the unit. Press it again to turn it off. POWER INDICATOR LIGHT When the system is on, the indicator light (2) will be illuminated. RX (REMOTE SENSOR) Point the remote control handset to the remote sensor (3). - Page 31 CONTROL & FUNCTION KEYS CONTRAST Slide the CONTRAST knob (7) right or lift to adjust the contrast level. BRIGHT Slide the BRIGHT knob (8) right or left to adjust the bright level. TFT LIQUID CRYSTAL DISPLAY The 7 inch color TFT LCD (9) can show the current state of the unit. There also have another two LCD monitors for option.
-
Page 32: Ac/Dc Adaptor
AC/DC ADAPTOR 1. Input: 100~240V 50/60Hz 2. Output: DC 12V 3A Max. 3. Input power supply cord must use in: a At U.S.A. and Canada for input 120V: 6FT UL/CSA APPR.18AWG 105˚C NISPT-2 Double Insulated cord with 1-15P Polarized plug. b At U.S.A.
