READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

For assistance, please contact us via the web at:

http://shop.panasonic.com/support

For microwave oven safety reference, please visit the FDA's web page at:

http://www.fda.gov/Radiation -EmittingProducts/default.htm

Para obtener instrucciones en español, por favor visite la página web en:

http://shop.panasonic.com/support

Scan this code for special instructions and features.

(U.S.A only)

Owner's Manual

Household Use Only

Model No.

Panasonic Corporation of North America Co., 2019

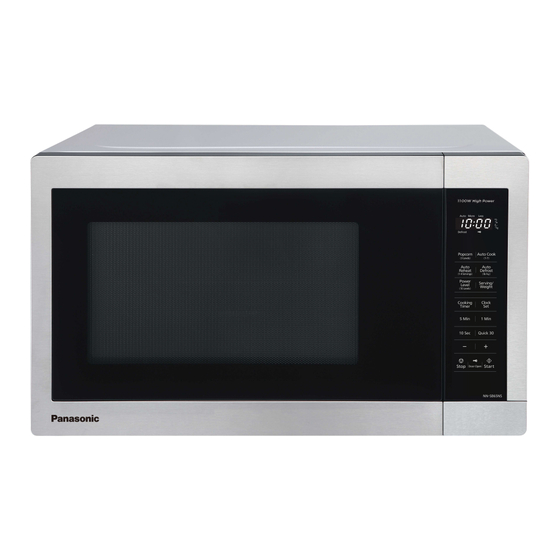

Microwave Oven

NN-SB65NS

Printed in China

Need help?

Do you have a question about the NN-SB65NSAZH and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic NN-SB65NSAZH

Page 1 (U.S.A only) For microwave oven safety reference, please visit the FDA’s web page at: http://www.fda.gov/Radiation -EmittingProducts/default.htm Para obtener instrucciones en español, por favor visite la página web en: http://shop.panasonic.com/support Printed in China Panasonic Corporation of North America Co., 2019...
Page 2 CONTENTS Safety Information IMPORTANT SAFETY INSTRUCTIONS ............................... 1-2 RADIO INTERFERENCE .................................... 3 GROUNDING INSTRUCTIONS ................................3-4 ....................................4 CHILD SAFETY LOCK Child-safety Electronic Door Lock Feature ............................5 Installation ........................................6 Food Preparation .....................................6-7 Cookware Guide ......................................
Page 3 (c) DO NOT operate the oven if it is damaged. It is par�cularly Thank you for purchasing a Panasonic Microwave Oven When using electrical appliances basic safety precau�ons should be followed, including the following. WARNING To reduce the risk of burns, electric shock, ﬁre, injury to persons, or exposure to...
Page 4 IMPORTANT SAFETY INSTRUCTIONS (con�nued) (e) Use extreme care when inser�ng a spoon or other utensil into the container. This appliance should be serviced only by qualiﬁed service personnel. Contact nearest authorized service facility for examina�on, repair, or adjustment. 10. To reduce the risk of ﬁre in the oven cavity: (a) DO NOT overcook food.
Page 5 RADIO INTERFERENCE Opera�on of the microwave oven may cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: (a) Clean door and sealing surface of the oven. (b) Reorient the receiving antenna of radio or television.
Page 6 (120 VAC, 60 Hz). Using a higher voltage is dangerous and may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is NOT responsible for any damages resulting from the use of the oven with any voltage other than specified.
Page 7 IMPORTANT – PLEASE READ Child-safety Electronic Door Lock Feature Your microwave oven is equipped with an electronic child-safety function, to be more precise: the door lock function, which enables the oven door to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally. Distinguishing from that of child safety lock, the door lock does not lock access to the microwave function, it simply prevents burning by opening the door accidentally.
Page 8 Installation Examine Your Oven Installation Unpack oven, remove all packing material and examine the oven for DO NOT block air vents. If they are blocked during operation, the any damage such as dents, broken door latches or cracks in the door. oven may overheat.
Page 9 Food Preparation (continued) 3) DEEP FAT FRYING 8) THERMOMETERS • DO NOT deep fat fry in your microwave oven. Cooking oils • DO NOT use a conventional may burst into flames and may cause damage to the oven and meat thermometer in may result in burns.
Page 10 Cookware Guide This section answers the question, “Can I use in the Microwave?” Aluminum Foil Glass Jars Check Microwave Safe manufacturers’ directions for recommended uses. Some microwave safe It is not recommended No. Most glass jars are not plastic containers are not suitable for cooking to use.
Page 11 Location of Controls Auto Defrost Pad Stop Pad is pressed once External Air Vent (See page 13) Internal Air Vent during oven operation, Start Serving/Weight Pad (See page 14) Door Safety Lock System Pad must be pressed again to Quick 30 Pad Exhaust Air Vent (See page 12) restart oven.
Page 12 Operation Using the Microwave Setting the Child Setting the Clock for the First Time Safety Lock Cooking Timer Press to cycle between the sound switch Display Window On or Beep system. Beep Plug into a properly grounded electrical outlet. The oven automatically defaults to the With the oven NOT cooking, imperial measure system...
Page 13 Operation (continued) Setting a Delayed Cooking (continued) Cooking Start The start time can be delayed to start cooking at a later time. To do this, first press Cooking Timer Press Start the cooking will start and the time will count down in the display.
Page 14 Operation (continued) Quick 30 Popcorn Setting a Standing (Set or add cooking time in (Example: To pop 3.5 oz (100 g). of popcorn) Time 30 seconds increments) NOTES: Pop one bag at a time. Place bag in oven according to manufacturers’ directions. Start with popcorn at room Press Popcorn until the desired temperature.
Page 15 Operation (continued) Auto Conversion Defrosting Tips & Techniques Defrost Follow the chart to convert Preparation For Freezing: 5. Drain liquids during defrosting. 1. Freeze meats, poultry, and fish in 6. Turn over (invert) items during ounces or hundredths of a packages with only one or two defrosting.
Page 16 Operation (continued) Auto Reheat Auto Cook NOTES: NOTES: 1. After having used the Auto 1. After having used the Auto Reheat feature a few times, you Cook feature a few times, you may decide you would prefer may decide you would prefer your food cooked to a different your food cooked to a different doneness –...
Page 17 Operation (continued) Auto Cook Chart Setting the Timer See the chart below for Auto Cook categories. Recipe Serving/Weight Hints 1-3 cups 1.Beverages This feature allows you to reheat 1 cup (250 ml) (250, 500,750 ml) 2 cups (500 ml) or 3 cups(750ml) of room temperature beverages without setting power and time.
Page 18 Food Characteristics Food Characteristics Covering As with conventional cooking, moisture evaporates during microwave Bone and Fat cooking. Casserole lids or plastic wrap are used for a tighter seal. When using Both bone and fat affect cooking. Bones may cause plastic wrap, vent the plastic wrap by folding back part of the plastic wrap irregular cooking.
Page 19 RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES, INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER GLASS TRAY. Shop Accessories Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://shop.panasonic.com/support Parts Available to Order: 16170000B06249 Instructions/Operating Manual (this book) ...........
Page 20 Before Requesting Service See below before calling for service, as most problems can easily be remedied by following these simple solutions: Some radio and TV interference might occur when you cook with the microwave The oven causes TV oven. This interference is similar to the interference caused by small appliances interference.
Page 21 If your product does not work properly because of a defect in materials or consequential damages, or limitations on how long an implied warranty lasts, workmanship, Panasonic Consumer Electronics Corporation (referred to as so the exclusions may not apply to you.
Page 22 Specifications Power Source ............................................120 V AC, 60 Hz Power Consumption .......................................13.5 Amps , 1500W Cooking Power* ...............................................1100W ” x 16 ” Outside Dimensions (W x H x D) ..................................20 ⁄ ” x 1 ⁄ (519 mm x 329 mm x 407 mm) Oven Cavity Dimensions (W x H x D) ................................
Page 24 You should note the model number and the serial number of this oven in the space provided and retain this book as a permanent record of your purchase for future reference. Model No. ______________________________ Serial No. ______________________________ Date of Purchase ________________________ Scan this code for special instructions and features Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ, 07102 -5490...
