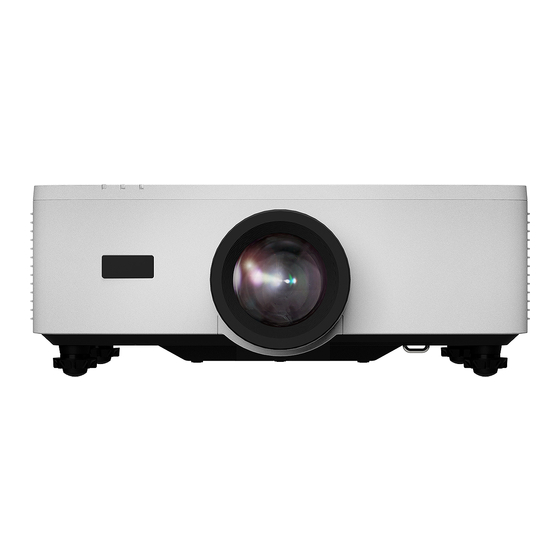

Sharp XP-P721Q-W Reference Manual
Sharp XP-P721Q-W Reference Manual

Sharp XP-P721Q-W Reference Manual

Hide thumbs Also See for XP-P721Q-W:

Advertisement

Quick Links

Projector
Control Command
Reference Manual
©Sharp NEC Display Solutions, Ltd. 2024
VDT24004
Revision 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP-P721Q-W and is the answer not in the manual?

Questions and answers

Summary of Contents for Sharp XP-P721Q-W

  • Page 1 Projector Control Command Reference Manual ©Sharp NEC Display Solutions, Ltd. 2024 VDT24004 Revision 1.0...
  • Page 2 Notwithstanding article 3. Our company will not be responsible for any claims on loss of profit or other matters deemed to result from using this reference manual. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 3 3.19 [ 052. SHUTTER OPEN ]............................ 41 3.20 [ 053. LENS CONTROL ] ............................ 42 3.21 3.22 [ 053-1. LENS CONTROL REQUEST ] ......................44 3.23 [ 053-2. LENS CONTROL 2 ] ..........................46 ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 4 [ 098-243-1. EDGE BLENDING MODE SET ] ....................79 3.47 [ 305-1. BASE MODEL TYPE REQUEST ] ......................80 3.48 3.49 [ 305-2. SERIAL NUMBER REQUEST ] ......................81 [ 305-3. BASIC INFORMATION REQUEST ] ...................... 82 3.50 Revision History ........................84 ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 5 Connect the serial cable to the PC CONTROL port of the projector. The pin assignment of the serial cable is shown below. <Connection between the PC CONTROL port (D-SUB 9P) and external device> Pin number Projector External device (Not used) (Not used) (Not used) (Not used) (Not used) (Not used) (Not used) (Not used) ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 6 (straight or cross), contact the network administrator. The pin assignment of the LAN port is shown below. <LAN port (RJ-45 8-pin connector)> Pin number Function Description Transmit Data (+) Transmit Data (-) Receive Data (+) Not used - Not used - Receive Data (-) Not used - Not used - ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 7 Full duplex LAN connection Wired LAN  Item Detail Data rate Auto switchable (10/100 Mbps) Supported standard IEEE802.3 (10BASE-T) IEEE802.3u (100BASE-TX, Auto-Negotiation) Port number  Use TCP port number "7142" for sending and receiving commands. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 8 Selects the profile number of the reference lens memory. 053-11. LENS PROFILE REQUEST Gets the selected profile number of the reference lens memory. 060-1. GAIN PARAMETER REQUEST 3 Gets adjusted values of the picture, volume, and backlight. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 9 305-1. BASE MODEL TYPE REQUEST Gets the base model type of the projector. 305-2. SERIAL NUMBER REQUEST Gets the serial number of the projector. 305-3. BASIC INFORMATION REQUEST Gets the operation status of the projector. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 10 ① Add all the data preceding the checksum. "20h + 81h + 01h + 60h + 01h + 00h = 103h" ② Use the low-order one byte "03h" of the addition result obtained in ① as the checksum. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 11 A response is returned with the cause of the failed command execution indicated in <ERR1> and <ERR2>. (Example) POWER ON Command  02h 00h 00h 00h 00h 02h Response  A2h 00h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 12 The specified language is invalid. The specified value cannot be set. The command cannot be accepted because the power is off. The command execution failed. The specified gain number is incorrect. The specified gain is invalid. Adjustment failed. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 13 DATA1 - DATA12 ....Error information is provided. A bit set to "0" indicates that the data is normal, and a bit  set to "1" indicates an error. For an error information list, see the next page. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 14 None (fixed to 0) Bit5 None (fixed to 0) Bit2 Color sensor error Bit6 None (fixed to 0) Bit3 None (fixed to 0) Bit7 The lens is not installed properly. DATA05 – 12 Reserved for the system ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 15 While this command is turning on the power, no other command can be accepted. Command 02h 00h 00h 00h 00h 02h Response When the command succeeds  22h 00h <ID1> <ID2> 00h <CKS> When the command fails  A2h 00h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 16 While this command is turning off the power (including the cooling time), no other command can be accepted. Command 02h 01h 00h 00h 00h 03h Response When the command succeeds  22h 01h <ID1> <ID2> 00h <CKS> When the command fails  A2h 01h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 17 For the values of input terminal, see the Appendix "Supplementary Information by Command". Command example  The following command switches the input terminal to a HDMI1 port (DATA01: A1h). 02h 03h 00h 00h 02h 01h A1h A9h ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 18 22h 03h <ID1> <ID2> 01h <DATA01> <CKS> Data part Item Description DATA01 Execution result Ended successfully. Ended with an error (no signal switch is made). When the command fails  A2h 03h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 19 ・ Video signal switch Command 02h 10h 00h 00h 00h 12h Response When the command succeeds  22h 10h <ID1> <ID2> 00h <CKS> When the command fails  A2h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 20 Turns the picture mute off. Command 02h 11h 00h 00h 00h 13h Response When the command succeeds  22h 11h <ID1> <ID2> 00h <CKS> When the command fails  A2h 11h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 21 ・ Sound volume adjustment Command 02h 12h 00h 00h 00h 14h Response When the command succeeds  22h 12h <ID1> <ID2> 00h <CKS> When the command fails  A2h 12h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 22 Turns the sound mute off. Command 02h 13h 00h 00h 00h 15h Response When the command succeeds  22h 13h <ID1> <ID2> 00h <CKS> When the command fails  A2h 13h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 23 ・ Video signal switch Command 02h 14h 00h 00h 00h 16h Response When the command succeeds  22h 14h <ID1> <ID2> 00h <CKS> When the command fails  A2h 14h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 24 Turns the onscreen mute off. Command 02h 15h 00h 00h 00h 17h Response When the command succeeds  22h 15h <ID1> <ID2> 00h <CKS> When the command fails  A2h 15h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 25 ① The following command sets brightness to "10". 03h 10h 00h 00h 05h 00h FFh 00h 0Ah 00h 21h ② The following command sets brightness to "-10". 03h 10h 00h 00h 05h 00h FFh 00h F6h FFh 0Ch ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 26 23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Execution result DATA02 0000h Ended successfully. Other than 0000h Ended with an error. When the command fails  A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 27 Adjustment value (low-order 8 bits) DATA03 Adjustment value (high-order 8 bits) Command example  The following command set the sound volume to "10". 03h 10h 00h 00h 05h 05h 00h 00h 0Ah 00h 27h ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 28 23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Execution result DATA02 0000h Ended successfully. Other than 0000h Ended with an error. When the command fails  A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 29 23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Execution result DATA02 0000h Ended successfully. Other than 0000h Ended with an error. When the command fails  A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 30 Data part Item Description DATA01 DATA01 DATA02 Adjustment target DATA02 LIGHT ADJUST DATA03 Adjustment mode Specify an absolute value Specify a relative value DATA04 Adjustment value (low-order 8 bits) DATA05 Adjustment value (high-order 8 bits) ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 31 23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Execution result DATA02 0000h Ended successfully. Other than 0000h Ended with an error. When the command fails  A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 32 <DATA87> - <DATA98> <CKS> Light usage time (DATA83 – DATA86) = 18000 / 3600 = 5 hours Information While the usage time can be obtained in one-second units, the information is updated at one-minute intervals. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 33 03h 96h 00h 00h 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Target Light DATA02 Content Light usage time (seconds) Command example  The following command gets the light usage time. 03h 96h 00h 00h 02h 00h 01h 9Ch ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 34 23h 96h <ID1> <ID2> 06h 00h 01h 50h 46h 00h 00h <CKS> Light usage time (DATA03 - DATA06) = 18000 / 3600 = 5 hours Information ・ While the light usage time can be obtained in one-second units, the information is updated at one-minute intervals. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 35 [ 037-6. CARBON SAVINGS INFORMATION REQUEST ] Gets the Carbon Saving values on the projector. Command 03h 9Ah 00h 00h 01h <DATA01> <CKS> Data part Item Description DATA01 Target Total Carbon Savings Carbon Savings during operation ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 36 Maximum: 99999[kg]) DATA06 - 09 Carbon Savings (Milligram Maximum:999999[mg]) When the command fails  A3h 9Ah <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> Response example  When the Carbon Savings value is 2460.06375[kg]. <ID1> <ID2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 37 For the combinations of key codes, see Table "Key code list". <Key code list> Key code DATA01 DATA02 Key name POWER ON POWER OFF MENU DOWN RIGHT LEFT ENTER EXIT STATUS D-ZOOM+ D-ZOOM- TEST ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 38 HDMI ID SET GEOMETRIC HDMI2 OSD MUTE OFF OSD MUTE ON USER1 USER2 USER3 DEFAULT Command example  The following command sends the key code "AUTO". 02h 0Fh 00h 00h 02h 05h 00h 18h ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 39  22h 0Fh <ID1> <ID2> 01h <DATA01> <CKS> Data part Item Description DATA01 Execution result Ended successfully. Ended with an error. When the command fails  A2h 0Fh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 40 Closes the lens shutter. Command 02h 16h 00h 00h 00h 18h Response When the command succeeds  22h 16h <ID1> <ID2> 00h <CKS> When the command fails  A2h 16h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 41 Opens the lens shutter. Command 02h 17h 00h 00h 00h 19h Response When the command succeeds  22h 17h <ID1> <ID2> 00h <CKS> When the command fails  A2h 17h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 42 Drives for 1 second in the direction of minus Information After sending "7Fh" (Drives in the direction of plus) or "81h" (Drives in the direction of minus) in DATA02, you can stop driving lens by sending "00h". ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 43 When the command fails  A2h 18h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> Information While the lens is being driven, you can control the lens position without a stop by issuing the same command. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 44 [ 053-1. LENS CONTROL REQUEST ] Gets adjusted values of the lens position. Command 02h 1Ch 00h 00h 02h <DATA01> 00h <CKS> Data part Item Description DATA01 Target Zoom Focus Lens Shift (H) Lens Shift (V) Periphery Focus ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 45 Lower limit of the adjustment range (high-order 8 bits) DATA06 Current value (low-order 8 bits) DATA07 Current value (high-order 8 bits) When the command fails  A2h 1Ch <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 46 Specify an absolute value Specify a relative value DATA03 Adjustment value (low-order 8 bits) DATA04 Adjustment value (high-order 8 bits) Information If specifying “Stop” in DATA01, the Adjustment mode and Adjustment value are not referenced. ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 47 Focus Lens Shift (H) Lens Shift (V) Periphery Focus Stop DATA02 Adjustment mode Specify an absolute value Specify a relative value When the command fails  A2h 1Dh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 48 Controls the lens memory. Information See [ 053-4. REFERENCE LENS MEMORY CONTROL ] for controlling the reference lens memory. Command 02h 1Eh 00h 00h 01h <DATA01> <CKS> Data part Item Description DATA01 Operation MOVE STORE RESET ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 49 22h 1Eh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Operation MOVE STORE RESET DATA02 Execution result Ended successfully. Ended with an error. When the command fails  A2h 1Eh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 50 ・ See [ 053-3. LENS MEMORY CONTROL ] for controlling the lens memory. ・ This command controls the profile number specified in [053-10 LENS PROFILE SET ]. Command 02h 1Fh 00h 00h 01h <DATA01> <CKS> Data part Item Description DATA01 Operation MOVE STORE RESET ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 51 22h 1Fh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Operation MOVE STORE RESET DATA02 Execution result Ended successfully. Ended with an error. When the command fails  A2h 1Fh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 52 22h 20h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Target LOAD BY SIGNAL FORCED MUTE DATA02 Setting value When the command fails  A2h 20h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 53 [ 053-6. LENS MEMORY OPTION SET ] Sets the lens memory. Command 02h 21h 00h 00h 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Target LOAD BY SIGNAL FORCED MUTE DATA02 Setting value ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 54 22h 21h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Target LOAD BY SIGNAL FORCED MUTE DATA02 Execution result Ended successfully. Ended with an error. When the command fails  A2h 21h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 55 Focus Bit6 Reserved for the system Stop During operation Bit3 Lens Shift (H) Bit7 Reserved for the system Stop During operation When the command fails  A2h 22h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 56 22h 27h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Profile number Profile 1 Profile 2 DATA02 Execution result Ended successfully. Ended with an error. When the command fails  A2h 27h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 57 22h 28h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS> Data part Item Description DATA01 Profile number Profile 1 Profile 2 DATA02 Reserved for the system When the command fails  A2h 28h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 58 PICTURE / COLOR PICTURE / HUE PICTURE / SHARPNESS VOLUME LIGHT ADJUST Command example  The following command gets the adjusted value of the picture (brightness). 03h 05h 00h 00h 03h 00h 00h 00h 0Bh ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 59 Whether the default value is valid or invalid The default value is invalid. The default value is valid. DATA15 Reserved for the system DATA16 When the command fails  A3h 05h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 60 DATA06 - 32 Reserved for the system Information For the values of the base model types, see the Appendix "Supplementary Information by Command". When the command fails  A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 61 Standby (Power saving) Power on Network standby Cooling Not supported Standby (error) - - DATA07 - 16 Reserved for the system When the command fails  A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 62 DATA02 Signal list number 00h – Signal list number - 1 Not supported DATA03 Selection signal type 1 - - DATA04 Selection signal type 2 HDMI Not Source Input HDBaseT ― - ― - ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 63 Command". When the command fails  A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> Response example  When the signal list number is10. 20h 85h <ID1> <ID2> 10h <DATA01> 09h <DATA03> - <DATA16> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 64 Response When the command succeeds  20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS> Data part Item Description DATA01 Picture mute Not supported DATA02 Sound mute Not supported DATA03 Onscreen mute Not supported ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 65 DATA04 Forced onscreen mute Not supported DATA05 Onscreen display Not displayed Displayed Not supported DATA06 - 16 Reserved for the system When the command fails  A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 66 20h 85h <ID1> <ID2> 20h <DATA01> - <DATA32> <CKS> Data part Item Description DATA01 - 32 Model name (NUL: termination character string) When the command fails  A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 67  21h 98h <ID1> <ID2> 01h <DATA01> <CKS> Data part Item Description DATA01 Execution result Ended successfully. Ended with an error. When the command fails  A1h 98h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 68 Horizontal synchronous frequency Vertical synchronous frequency DATA02 Label/information string length (excluding NUL characters) DATA03 - ?? Label/information strings (NUL: termination character string) When the command fails  A0h D0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 69 Value set for the light mode Information For information about the values set for the light mode, see the Appendix "Supplementary Information by Command". When the command fails  A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 70 23h B0h <ID1> <ID2> 12h 2Ch <DATA01> - <DATA17> <CKS> Data part Item Description DATA01 - 17 Projector name (NUL: termination character string) When the command fails  A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 71 A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> Response example  When the MAC address of the projector is "01h-23h-45h-67h-89h-ABh", the following response is returned. 23h B0h <ID1> <ID2> 08h 9Ah 00h 01h 23h 45h 67h 89h ABh <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 72 Gets the value set for the picture in picture and picture by picture. Command 03h B0h 00h 00h 02h C5h <DATA01> <CKS> Data part Item Description DATA01 Target MODE START POSITION SUB INPUT / SUB INPUT 1 SUB INPUT 2 SUB INPUT 3 ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 73 Sub input setting value (when DATA01 is 0Ah "SUB INPUT 3") Information For the values of the Sub input setting value, see the Appendix "Supplementary Information by Command". When the command fails  A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 74 When the command succeeds  23h B0h <ID1> <ID2> 03h DFh 00h <DATA01> <CKS> Data part Item Description DATA01 Setting value When the command fails  A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 75 23h B1h <ID1> <ID2> 02h 07h <DATA01> <CKS> Data part Item Description DATA01 Execution result Ended successfully. Ended with an error. When the command fails  A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 76 23h B1h <ID1> <ID2> 02h 2Ch <DATA01> <CKS> Data part Item Description DATA01 Execution result Ended successfully. Ended with an error. When the command fails  A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 77 Sub input setting value (when DATA01 is 09h "SUB INPUT 2") Sub input setting value (when DATA01 is 0Ah "SUB INPUT 3") Information For the values of the Sub input setting value, see the Appendix "Supplementary Information by Command". ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 78 SUB INPUT / SUB INPUT 1 SUB INPUT 2 SUB INPUT 3 DATA02 Execution result Ended successfully. Ended with an error. When the command fails  A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 79 23h B1h <ID1> <ID2> 03h DFh 00h <DATA01> <CKS> Data part Item Description DATA01 Execution result Ended successfully. Ended with an error. When the command fails  A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 80 Reserved for the system DATA15 Information For the values of the base model types, see the Appendix "Supplementary Information by Command". When the command fails  A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 81 20h BFh <ID1> <ID2> 12h 01h 06h <DATA01> - <DATA16> <CKS> Data part Item Description DATA01 - 16 Serial number (NUL: termination character string) When the command fails  A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 82 Power on Standby (Power saving) Cooling Network standby DATA02 Content displayed Video signal displayed Test pattern (user) displayed No signal Signal being switched Test pattern displayed - - DATA03 Selection signal type 1 - - ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 83 DATA10 - 15 Reserved for the system Information For information about which parameters are supported, see the Appendix "Supplementary Information by Command". When the command fails  A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS> ©Sharp NEC Display Solutions, Ltd. 2024...
  • Page 84 Revision History Revision Date Description August 27, 2024 First version ©Sharp NEC Display Solutions, Ltd. 2024...
