RTX3
Wireless Expansion Module
Installation Manual
V6.30 and higher
Introduction
The RTX3 is a 2-way, 32 zone wireless expansion module which enables EVO
and SP Series control panels to support wireless hardware such as sirens, motion
detectors, water detectors, and remote controls.

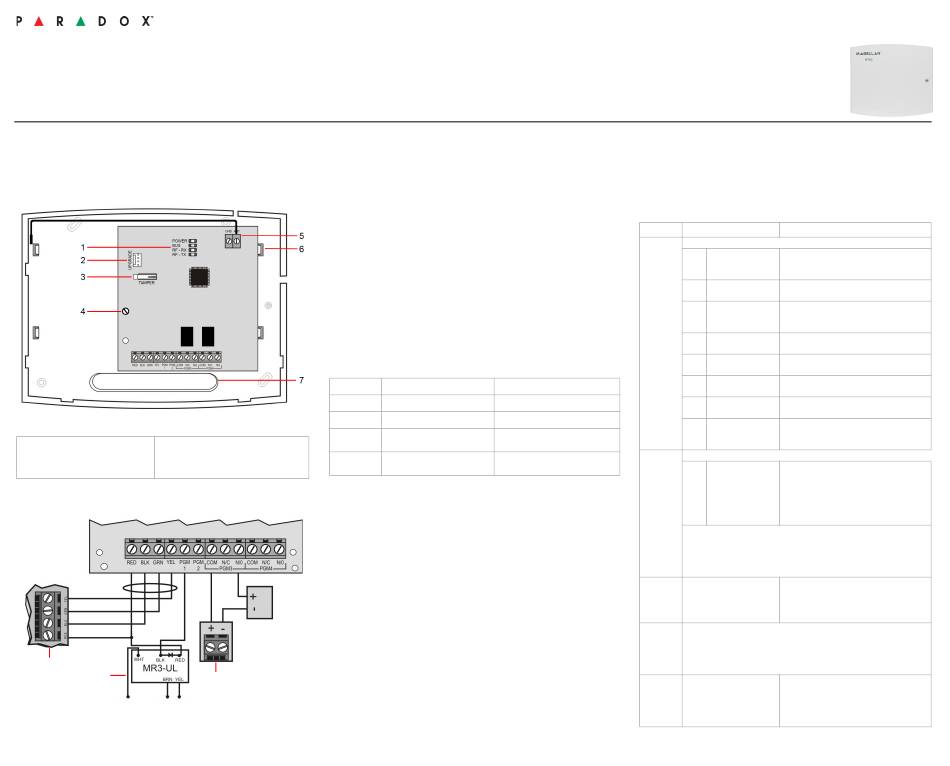

RTX3 Board and Connectors
FIGURE 1
1. LED display
4. PCB screw
2. Firmware upgrade serial
5. Antenna
connector
6. Mounting clips (2)
3. Anti-tamper switch
7. Wiring slot
Installation
Control Panel
Combus
1
2
COM
N.O. N.C.
FIGURE 2
PARADOX.COM
Installation Notes
Refer to the Figure 2 for the following connections and instructions.
1. Control panel Digiplex connection.
2. Use a relay if the current draw exceeds 150mA on PGM1 or PGM2. Connect
the RTX3's RED connector to the relay's RED connector, and the RTX3's PGM
connector (PGM1 or PGM2) to the relay's BLK connector.
3. Connect PGM3 and PGM4 to external power supplies if additional power is
required. A PS25 is recommended. Connect the PGM's N.O. connector to the
external power supply's "+" connection. Connect the power supply's "-"
connector to the device's "-" connector. Connect the PGM's COM connector to
the device's "+" connector.
Write down the serial number of all wireless modules used with the RTX3.
System Reset for EVO Panels
1. Press and hold the [0] key.
2. Enter the [
INSTALLER CODE
3. Enter section [4001].
4. Enter the module [
System Reset restores the RTX3's factory settings.
LED Feedback
LED
OFF
POWER
No clock or data exchange
BUS
Not receiving data
RF - RX
Not transmitting data
RF - TX
Programming RTX3 for SP Series Panels
When connected to a SP Series control panel, RTX3 settings are programmed
through control panel programming sections. For detailed instructions refer to the
SP Series Programming Guide.
Notes:
• Only one RTX3 module can be connected to a SP Series panel.
Programming for EVO Series Panels
Program RTX3 settings for EVO panels with either a keypad or BabyWare PC
software.
Programming RTX3 with a Keypad
When connected to an EVO panel, program RTX3 settings through the keypad by
entering Module Programming Mode.
To enter Module Programming mode:
3
1. Press and hold the [0] key.
2. Enter the [
INSTALLER CODE
3. Enter section [4003].
4. Enter the module [
5. Enter the required [
].
].
SERIAL NUMBER
OFF
ON
OK (10.5V to 16V)
Clock and data OK
Flashes green when receiving
data
Flashes green when
transmitting data
].
].
SERIAL NUMBER
].
DATA
After Programming RTX3 for EVO Control Panels
Program the zones, PGMs, sirens and remote controls into the EVO panel. Refer
to EVO section [3034] and RTX3 section [001] options [2] and [3] for wireless
transmitter supervision options. Requirement: Configure all wireless sirens in an
EVO system to a single RTX3.
RTX3 Programming Sections for EVO Panels
Section
Feature
[001]
Option
[1]
Low battery
For RTX3 version 1.5 and higher, this
supervision
option is always on
:
default
ON
[2]
Check-in
: default
OFF
supervision
[3]
Check-in
: 24 hours (default)
OFF
supervision time
:
80 minutes
ON
interval
[4]
RF Jamming
: default
OFF
supervision
[5]
On-board module
: default
OFF
tamper supervision
[6]
PGM1 initial state
: Normally Open (default)
OFF
:
Normally Closed
ON
[7]
PGM2 initial state
: Normally Open (default)
OFF
:
Normally Closed
ON
[8]
Transmit tamper
: RTX3 ignores tamper signal
OFF
signal
(default)
:
RTX3 reports tamper signal
ON
[002]
Remote Control Options
[1]
REM2 visual and
: Old visual and auditory
OFF
auditory feedback
feedback (Supported by REM2
compatibility
v2.00 or lower)
options*
:
New visual and auditory feedback
ON
(default)
Note: Requires REM2 v2.01 and higher
* The new visual and auditory feedback includes the following
system status: stay armed, instant armed and exit delay. Other
status feedback has not changed. For REM2 v1.04 or older, stay
arm, instant arm and exit delay status are not supported, and a
rejection beep will be heard when the system is in these status.
[030]
View Transmitter, Remote
To view a transmitter's 6-digit serial
Control and PGM Serial
number:
Numbers
Press and hold the transmitter's anti-tam-
per switch
[101] to
Assign Wireless Transmitters
[132]
[101] = Zone Input 1; [132] = Zone Input 32
Enter 6-digit serial number or press and release the transmitter's
tamper switch. To delete an assigned transmitter, enter 000000 as
the serial number.
See
Remote Controls
To program remotes controls:
Details
• Refer to User Code and Remote
Control Programming sections in the
EVO Programming Guide OR:
•
Program through BabyWare
Details
RTX3-EI15 02/2020
