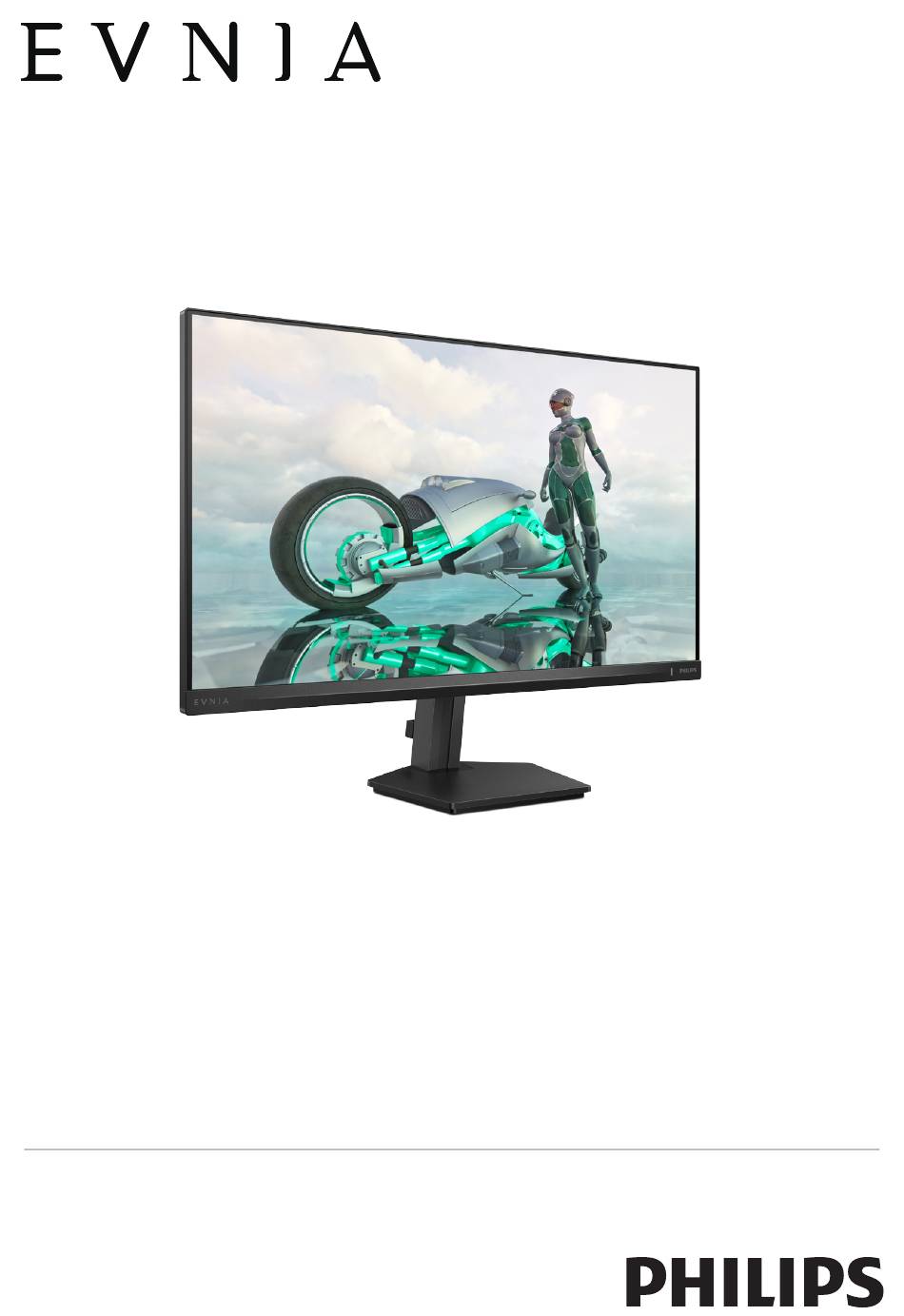

- Page 1 27M2N3500F User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
- Page 2 6. Technical Specifications 17 6.1 Resolution & Preset Modes ..19 7 Power Management 20 8. Customer care and warranty 21 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ........ 21 8.2 Customer Care & Warranty ..24 9. Troubleshooting & FAQs 25 9.1 Troubleshooting ......25...
- Page 3 Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips • Remove any object that could fall monitor. Take time to read this user into ventilation holes or prevent manual before you use your monitor.
- Page 4 downward by more than -5 degrees. • Oil-based cleaning solutions may If the -5 degree downward tilt angle damage the plastic parts and void maximum is exceeded, the monitor the warranty. damage will not be covered under • Unplug the monitor if you are not warranty.
- Page 5 1.2 Notational Descriptions Uninterrupted display of still or static images over an extended The following subsections describe the period may cause “burn-in”, also notational conventions used in this known as “after-imaging” or “ghost document. imaging”, on your screen. • “Burn-in”, “after-imaging”, or Notes, Cautions, and Warnings “ghost imaging”...
- Page 6 From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take-...
- Page 7 2.1 Installation Package contents Quick Start 27M2N3500F Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Attach/Slide the base colum with the monitor until it clicks into position.
- Page 8 2.2 Operating the monitor Connecting to your PC Description of the control buttons Press to switch power on. AC/DC power input Press more than 3 seconds to switch power off. DisplayPort input Access the OSD menu. HDMI input Audio Out Confirm the OSD adjustment.
- Page 9 Description of the On-Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LED monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on- screen instruction window.
- Page 10 Main menu Sub menu Standard, FPS, Racing, RTS, Movie, SmartImage Brightness 0~100 LowBlue Mode, EasyRead, Economy, Contrast 0~100 SmartUniformity,Game1, Game2 SmartContrast On, O Gamma 1.8, 2.0, 2.2, 2.4, 2.6 Sharpness 0~100 On, O sRGB Color Temperature Native, Preset, 5000K, 6500K, 7500K, 8200K, 9300K, 11500K R.G.B.
- Page 11 aiming so you can spot the enemies Note more easily. Game mode: This model is equipped with new features in OSD which gives • Smart Sniper you high-quality visual experience. This feature enables you to zoom in to multiple targets at once; •...
- Page 12 2.3 Remove the Base Assembly Resolution notification for VESA Mounting This monitor is designed for optimal performance at its native Before you start disassembling the resolution:2560 x 1440. monitor base, please follow the When the monitor is powered on at a instructions below to avoid any possible different resolution, an alert is displayed damage or injury.
- Page 13 4. Remove the VESA Cover Note VESA-Compliant mounting interface. VESA Mounting Screw M4. Always contact the manufacturer for wall- mount installation. 100mm 100mm 0° 90° -5° * Display design may differ from those illustrated in this manual. Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
- Page 14 EasyRead, Economy, SmartUniformity, brightness, contrast, color, and sharpness Gamer1 and Gamer2. in real-time. Whether you're working with text applications, displaying images, or watching a video, Philips SmartImage delivers great monitor performance. SmartImage GAME Why do I need it? Standard...
- Page 15 LED displays can cause eye damage and affect vision over HDR Movie time. Developed for well-being, the HDR Vivid Philips LowBlue Mode setting uses Personal smart software technology to reduce Off harmful shortwave blue light. • EasyRead: Helps improve reading of text-based applications like PDF ebooks.
- Page 16 3.2 SmartContrast Note To switch off the HDR function, please What is it? disable the Input device and its content. It is a unique technology that Inconsistent HDR settings between the dynamically analyzes displayed content input device and monitor may cause and automatically optimizes a monitor's unsatisfying images.
- Page 17 4 Adaptive Sync AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs AMD A10-7890K • Adaptive Sync AMD A10-7870K • PC gaming has long had an imperfect AMD A10-7850K • experience because GPUs and monitors AMD A10-7800 •...
- Page 18 5. HDR HDR Settings in Windows10 system. Steps 1. Right-click on the desktop, and enter Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows 10 edition is required.
- Page 19 6. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2331 (H) mm x 0.2331 (V) mm Contrast Ratio(typ.) 1000:1 Recommended 2560 x 1440 @ 60 Hz Resolution 2560 x 1440 @ 144 Hz (HDMI) Maximum Resolution 2560 x 1440 @ 180 Hz (DP)
- Page 20 Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , 60Hz at 115VAC , 60Hz at 230VAC, 50Hz Normal Operation 27.6 W (typ.) 27.5 W (typ.) 27.6 W (typ.) Sleep (Standby mode) 0.5 W (typ.) 0.5 W (typ.) 0.5 W (typ.) Off mode 0.3 W (typ.)
- Page 21 Please note that your display works best at the native resolution of 2560 x 1440. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.
- Page 22 7 Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically.
- Page 23 Other Pixel Defect Policy combinations of lit and dark sub-pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
- Page 24 To qualify for repair or replacement due to pixel defects during the warranty Black Dot Defects period, a TFT Monitor panel in a Philips Black dot defects appear as pixels or flat panel monitor must have pixel sub-pixels that are always dark or 'off'.
- Page 25 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
- Page 26 Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
- Page 27 • Disconnect the monitor from mains power source immediately for safety 9.1 Troubleshooting • Contact with Philips customer service This page deals with problems that can representative immediately. be corrected by a user. If the problem Imaging Problems persists after you have tried these...
- Page 28 Service contact information listed in set at 2560 x 1440. the Important information manual • Shut down your computer, and contact a Philips customer service disconnect your old monitor, and representative. reconnect your Philips LED monitor. * Functionality is different according to display.
- Page 29 Can I connect my LED monitor to please use isopropyl alcohol. Do any PC, workstation, or Mac? not use other solvents such as Ans.: Yes. All Philips LED monitors are ethyl alcohol, ethanol, acetone, fully compatible with standard hexane, etc.
- Page 30 Q10: Are Philips LCD monitors Plug- Q13: How to unlock/lock my hotkey? and- Play? Ans.: Please press for 10 seconds Ans.: Yes, the monitors are Plug-and- to unlock/lock the hotkey, by Play compatible with Windows doing so, your display pops out 11/10, Mac OSX.
- Page 31 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
