SERVICE

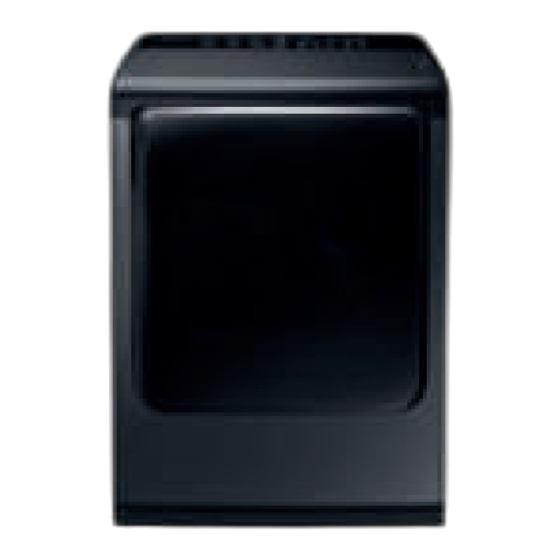

CLOTHES DRYER
DV8700M, DV8600M
Refer to the service manual in the GSPN (see the rear cover) for the more information.
"
This document can not be used without Samsung's authorization"
CLOTHES DRYER
PROJECT : DV8700M, DV8600M
Model Name :
DVE52M8650V/A3
DVG52M8650V/A3
DVE52M8650W/A3
DVG52M8650W/A3
DVE52M7755W/AC
1.
Safety Instructions
2. Features and Specifications
3. Disassembly and Reassembly
4. Troubleshooting
DVE52M7750P/AC
DVE52M7750W/A3
DVG52M7750W/A3
DVE52M7750V/A3
DVG52M7750V/A3
Manual
CONTENTS
Advertisement
Related Manuals for Samsung DV8700M
Summary of Contents for Samsung DV8700M
- Page 1 Safety Instructions 2. Features and Specifications 3. Disassembly and Reassembly 4. Troubleshooting DV8700M, DV8600M Refer to the service manual in the GSPN (see the rear cover) for the more information. “ This document can not be used without Samsung's authorization”...
- Page 2 15. Do not push the control buttons with an awl,pin, or sharp materials. may cause electric shocks and damage. 16. Check the dryer is leveled horizontally and installed properly on the The vibration may shorten the product life. Safety Instructions _ 1 This document can not be used without Samsung's authorization”...
- Page 3 21. Always read and follow manufacturers instructions on packages for laundry aids. Heed all warnings or precautions. To reduce risk of poisoning or chemical burns, keep products away from children at all times, preferably, in a locked cabinet. 2 _ Safety Instructions This document can not be used without Samsung's authorization”...
- Page 4 DO NOT exhaust dryer air into a window well, gas vent, chimney or enclosed, unventilated area, such as an attic, wall, ceiling, crawl space under a building or concealed space of a building. Safety Instructions _ 3 This document can not be used without Samsung's authorization”...
- Page 5 DO NOT exhaust dryer air into a window well, gas vent, chimney or enclosed, unventilated area, such as an attic, wall, ceiling, crawl space under a building or concealed space of a building. 4 _ Safety Instructions This document can not be used without Samsung's authorization”...
- Page 6 You can install the exhaust vent in the following four (4) positions: back, either side, 4-way Vent(Elec.) bottom. You can use “Delicate dry” with tumble dry. Samsung dryer can save your clothes damage by high Delicate Dry temperature heat. Features and...
- Page 7 Electric (W) Heater ra琀椀ng 22000 Gas (BTU/hr) “A. Height” Spec can vary from 42.4 to 43.3 inches (107.7 - 108.9 cm) depending on the leveling feet adjustment. 6 _ Features and This document can not be used without Samsung's authorization”...
- Page 8 Gas - 215 liter ↓ Gas - 215 liter ↓ Gas - 215 liter ↓ (kWh/cycle // Liter/cycle) Yearly Energy Consumption 607 kWh/year (Elec) 607 kWh/year (Elec) 607 kWh/year (Elec) (kWh/year) Features and This document can not be used without Samsung's authorization”...
- Page 9 ASSY CONNECTOR - Outer Diameter : 24mm DC97-15103A - Pitch : 2.2mm default ASSY HOSE CONNECTOR - Outer Diameter : 24mm DC97-15249A - Pitch : 2.2mm SEAL-WATER DC62-40178A 8 _ Features and This document can not be used without Samsung's authorization”...
- Page 10 Tool to protect the idle and abrasion of the bolt Vice pliers for the box driver. Other (Driver, Diagonal Cutter, General tools for the after service. Long Nose Pliers) Removal and Reassembly _ 9 This document can not be used without Samsung's authorization”...
- Page 11 3-2. STANDARD DISASSEMBLY DRAWINGS To avoid risk of electrical shock, personal injury or death, disconnect the power to the Clothes Dryer. ► This is a standard disassembly diagram and may differ from the actual product. Use this material as a reference when disassembling and reassembling the product. Part Figure Description...
- Page 12 4. Separate 6 Hook from Guide Panel. 5. Remove Console. Console Removal 6. Remove Each Housing. 8. Remove screws from the Assy PCB Sub. Be careful of external scratch on the console. Removal and Reassembly _ 11 This document can not be used without Samsung's authorization”...
- Page 13 3. Remove 3 screws from the frame+plate 4. Remove the Wire holder Main PCB Removal 5. Remove the Housings Shaking the heater terminal side ways to pull it out is prohibited. 12 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 14 Part Figure Description 1. Door Opening 2. Remove 2 screws from the Frame Front 3. Separate the temporary fixation part of the Assembly Door. 4. Remove 10 screws from the Holder Glass 5. Remove the Door-Cover Door Removal 6. Remove 4crews from the Support-Hinge 7.
- Page 15 1. Disconnect the Power Supply to the unit 2. Remove the Top Cover, the Console, and the Front Plate Removal Panel 3. Remove 4 screws from the Plate (u) 14 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 16 Front Bulkhead Removal (Continued) 7. Lift Bulkhead from the Cabinet then remove it. 8. Remove 2 screws from the Duct Outlet 9. Remove the Duct Outlet Removal and Reassembly _ 15 This document can not be used without Samsung's authorization”...
- Page 17 13. Remove the Case Filter (B/F). Make sure the Filter does not get damaged by the Roller. 14. Disconnect 2 Housing Sensor-Plate. 15. Remove 2 Sensor-Plate. 16 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 18 2. Remove the Top Cover, the Console, and the Front Panel 3. Remove 2 Housing Sensor Sensor (Thermistor, Thermostat) Removal 4. Remove the Sensor Do not apply excessive force to the terminal. Removal and Reassembly _ 17 This document can not be used without Samsung's authorization”...
- Page 19 4. Remove 1 screw from the Heater Heater Removal 5. Separate the Heater from the Drum-back 6. Remove 4 screws from the Thermostats Do not apply excessive force to the terminal. 18 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 20 4. Separate the Duct Connector Assy Motor Removal 5. Remove 1 Housing Motor. (Continued) 6. Remove 2 Housing Belt Cut Off Switch. 7. Remove 3 screws from the Motor-Bracket. Removal and Reassembly _ 19 This document can not be used without Samsung's authorization”...
- Page 21 Assy Motor Removal (Continued) 11. Remove 3 screws from the Cover-Duct Fan 12. Remove the 2 Spring Plate 13. Remove the 1 screw Belt cut Off Switch 20 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 22 Part figure Description 14. Remove the Holder Shaft Assy Motor Removal 15. Remove the Roller-Idler Removal and Reassembly _ 21...
- Page 23 5. Separate the wire in the Wire Holder. Drum Back Removal (Continued) 6. Separate the Drum Back from the Frame. 7. Remove the terminals from the Valve-Water. 22 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 24 In case the screws for a power code are dropped into the dryer, after removing Duct Exhaust, you can put it out through the hole. Duct Exhaust Removal Removal and Reassembly _ 23 This document can not be used without Samsung's authorization”...
- Page 25 In case the screws for a power code are dropped into the dryer, after removing Duct Exhaust, you can put it out through the hole. Duct Exhaust Removal Removal and Reassembly _ 24 This document can not be used without Samsung's authorization”...
- Page 26 7. Reassemble 2 screws on Inside Holes. 8. Remove 1 black screw from the Door Hinge. The black screw is for the Door to the Frame Front. 25 _ Removal and Reassembly This document can not be used without Samsung's authorization”...
- Page 27 DOOR REVERSAL 11. Reattach the Holder Lever. 12. Reattach the screws in the Remaining Holes. Reassembly procedures are in the reverse order of dissasembly procedures. Removal and Reassembly _ 25 This document can not be used without Samsung's authorization”...
- Page 28 If the igniter heats up but the main burner flame does not ignite, disconnect power and using normally but fails an ohmmeter, check the following: • Secondary coil / Holding coil / Wire harness / Flame sensor if it’s closed To ignite 26 _ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 29 • Roaring: check if the blower wheel collides with the blower housing, or if the motor bearings are worn. • Popping or squealing: check for a sticky or frayed belt. 27 _ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 30 • First check the PCB and wire harness. Electronic control problem • Replace the PCB if the problem persists. (Invalid Communication). Invalid heating Temp in running • Check the PCB and Thermistor. the dryer. 28 _ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 31 Check the motor and heater Press the Start button to enter the diagnosis mode. The diagnosis result appears. : Both motor and heater work normally : Motor or heater doesn’t work normally Troubleshooting _ 28 This document can not be used without Samsung's authorization”...
- Page 32 4-3. TROUBLE DIAGNOSIS As the micom dry machine is for the complicate structure, there might be a service call. The below information is prepared for exact trouble diagnosis and suitable repair guide. ■ Caution for the repair and replacement Please follow below instruction for the trouble diagnosis and parts replacement. some electronic components can be damaged by static electricity from the resin part of dryer or the human body, remove the potential difference of the human body and the dryer by contacting the power plug before you start working at PCB.
- Page 33 Scraping Check for front or rear bulkhead felt seal out of position or worn tumbler front bearings. • “Roaring” Check for blower wheel rubbing on blower housing or bad motor bearings. • Popping or squealing sound. Check for a sticky or frayed belt. Troubleshooting _ 30 This document can not be used without Samsung's authorization”...
- Page 34 PCBs in good condition? Replace the sub PCB. (Check DC power, signal and key) Is the sub PCB normal? The problem is in the main PCB assembly. Please replace it. 31 _ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 35 Check whether the motor protector is operating. Is the motor normal? (Check for overload, drum constraint, centrifugal S/W etc.) The problem is in the PCB assembly. Please replace it. Troubleshooting _ 32 This document can not be used without Samsung's authorization”...
- Page 36 (Remove the power and check whether the heater coil has a resistance of about 10Ω) Is the heater normal? The problem is in the PCB assembly. Please replace it. 33 _ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 37 S/W) connection normal? Replace the lamp. (Check for disconnection of lamp and socket) Is the lamp normal? Check if the input voltage is properly coming in. Neutral Earth Troubleshooting _ 34 This document can not be used without Samsung's authorization”...
- Page 38 (Change the contacting part and check noise from the heater the screw part? 2. Vibration of heater heat wire. (Check the part of the heat wire) It is normal. 35_ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 39 • Lamp resistance : ∞ Ω, (-) : BLU, (+) : WHT Lamp DC3V, 45mA, 700Lux • Motor (Electronic & GAS) Contacts ( : Contact closed) Function Start Troubleshooting _ 36 This document can not be used without Samsung's authorization”...
- Page 40 • Valve 6-7: Resistance value approx. 1000 Ω • If resistance is infinite, replace valve. Thermostat (60T21 Hi-Limit)230F-50F • Resistance value < 1 Ω • If resistance is replace Thermostat 120V 20A (60T2) 37 _ Troubleshooting This document can not be used without Samsung's authorization”...
- Page 41 Approx 10 KΩ at 25 °C/77 °F Cycling Thermistor2 Disconnect harness and test Yellow wire Pin 2 to White wire Pin 7. • Approx 238.231 KΩ at 25 °C/77 °F Troubleshooting _ 38 This document can not be used without Samsung's authorization”...
- Page 42 North & Latin America gspn3.samsungcsportal.com China china.samsungportal.com © 2024 Samsung Electronics Co.,Ltd. All This Service Manual is a property of Samsung Electronics Co.,Ltd. rights reserved. Any unauthorized use of Manual can be punished under applicable Printed in Korea International and/or domestic law.
