User Guide

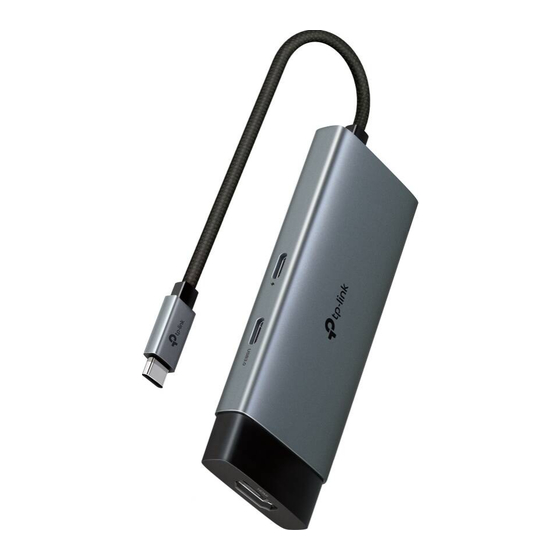

USB Type-C 5-Port Hub
Images are for demonstration only.
1910013790
REV1.0.0
©2024 TP-Link
1 Product Overview
HD MI
For connecting to your host
USB-C Connector
device.
USB-C PD (Power
For unidirectionally charging your
Delivery) Port*
host device when connected to a
PD charger.
PD 3.0; Up to 100W
* Does not support data transfer.
USB 3.0; Up to 5 Gbps data transfer
USB-C Port
HDMI Port
Up to 4K@60Hz
(backward compatible)
USB-A Ports ×2
USB 3.0; Up to 5 Gbps data transfer
Note: The ports' actual performance may vary based on your host
device specifications.
Input
PD: 5V/3A, 9V/3A, 12V/3A,
15V/3A, 20V/5A
USB-C Connector: 5V/3A
Supported Systems
Windows, iOS, macOS, iPadOS,
Nintendo OS, Chrome OS, Linux,
Android.
Plug and Play
USB-C PD port, USB-C port,
HDMI port, USB-A ports.
