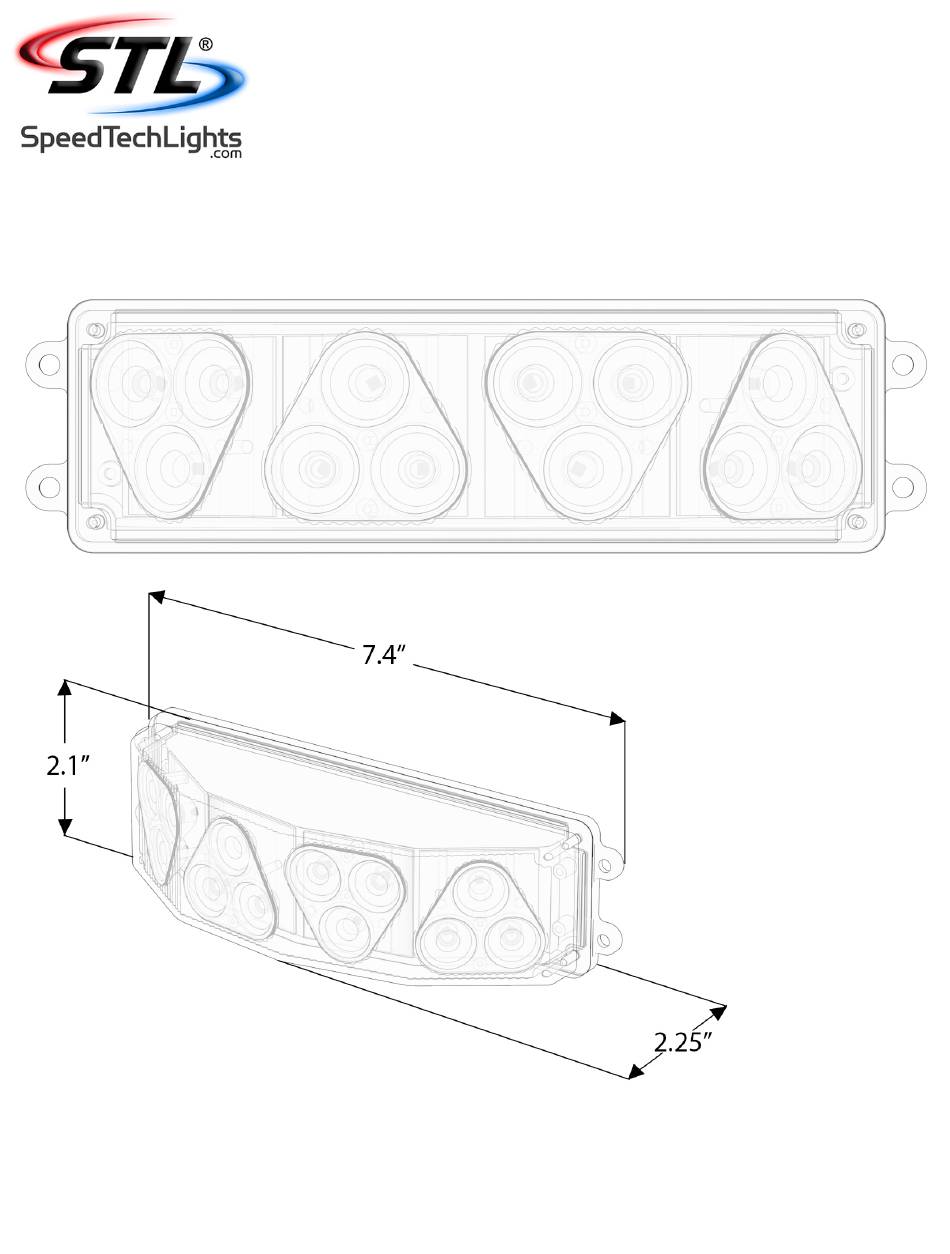

- Page 1 HALF OCTO ® SURFACE MOUNT G-HOT4 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2024...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 If you have trouble call Customer Service at 800-757-2581 before proceeding. Maintenance While STL’s Light Bars are very durable, there are some things you need to keep in mind and practice to preserve the longevity and function of your Bar. •...
- Page 4 HALF OCTO ® SURFACE MOUNT Wiring Diagram Wire Color Function Wire Color Function Positive Mode 1 Red* Green Steady Burn Override Black* Negative Sync White Yellow Flash Pattern Blue Alternating Sync Programming NOTE: All cables except Negative and Sync contact +12 VDC. Positive Mode 2 Brown* NOTE: Mode 2 will override Mode 1.
- Page 5 HALF OCTO ® SURFACE MOUNT Extension Cable (Sold Separately) • If you are extending the main cables, just add the desired length of cable to the end of the main cables coming out of the unit. You will solder and heat shrink the wire you are lengthening from the unit to each additional length of extension cable.
- Page 6 HALF OCTO ® SURFACE MOUNT Flash Pattern List • Slow Left/Right • Left/Right • Fast Left/Right • Accelerating Left/Right • Slow-Fast-Slow Left/Right • Slow Alternating LED • Alternating LED • Fast Alternating LED • Faster Alternating LED • Fastest Alternating LED •...
