Operator's Manual
Keep this manual for the safety warnings and precautions, assembly,
40V BATTERY POWERED
Visit our website at: http://www.litheli.com
When unpacking, make sure that the product is intact

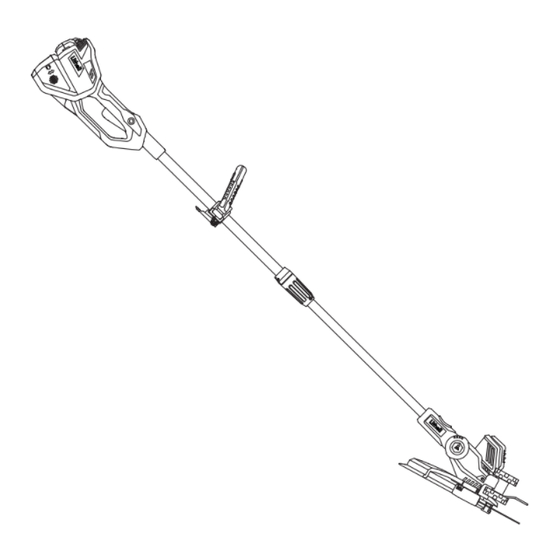

STRING TRIMMER
and undamaged. If any parts are missing or broken,
please contact us: WWW.LITHELI.COM.
©
Copyright 2020 Litheli. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Litheli.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
U1GT17002
Advertisement
Related Manuals for Litheli U1GT17002
Summary of Contents for Litheli U1GT17002
- Page 1 Failure to do so can result in serious injury. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Litheli. SAVE THIS MANUAL. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein.
- Page 2 13. Store Idle Appliances Indoors - When not in use, Wear thick jeans and steel-toed appliances should be stored indoors in dry, and work boots to help prevent injury high or locked-up place - out of reach of children. caused by flying debris. Page 2 WWW.LITHELI.COM U1GT17002...
- Page 3 6. Remove or disconnect battery after use, contains important safety and operating before servicing, cleaning or removing instruction for battery charger Model U1GT17002. material from the gardening appliance. 2. Before using battery charger, read all instructions 7. Do not dispose of battery in a fire. The and cautionary markings on battery charger, cell may explode.
- Page 4 Battery Pack before putting the These carry important safety information. appliance down, making any adjustments, or If unreadable or missing, contact Litheli for a servicing the appliance. replacement. 2. Do not use in rain, snow, sprinklers, or wet grass.
- Page 5 Charge level indication. for a long time and do not place it on radiators (max. 45 ° C). Dispose of the batteries at a collection point for old batteries, from where they are taken to environmentally friendly recycling. U1GT17002 WWW.LITHELI.COM Page 5...
- Page 6 Functions Spool Storage Compartment Trigger Safety Lock Trigger Auxiliary Handle Extension Lock Extension Tube Edger/Trimmer Button Head Angle Button Guard Line Cutter Edger Wheels Spool Housing Edge Guide not shown. Page 6 WWW.LITHELI.COM U1GT17002...
- Page 7 Battery pack fully with battery pack charged Red LED lights up with Battery pack charging battery pack Red and green LEDs Battery pack defect flashing Red and green LEDs Battery pack too cold continuously lit or warm U1GT17002 WWW.LITHELI.COM Page 7...
- Page 8 Trimmer with two included Screws. Guard Screw 2. Remove protective tape covering Line Cutter. NOTE : Line Cutter is set to 12" cutting width. Screws 3. To change the spool, remove Line Cutter Screw, rotate Line Cutter, then replace Screw. Page 8 WWW.LITHELI.COM U1GT17002...
- Page 9 Install Edger Wheels Edger Wheels 1 . Slide Edger Wheels into slot. Push down until Edger Wheels lock into place. 2. Remove Edger Wheels by pushing Tab and pulling up on Edger Wheels. Slot U1GT17002 WWW.LITHELI.COM Page 9...
- Page 10 1 . To install: Slide Battery Pack into slot on back Battery Pack of String Trimmer until it clicks into place. Release Buttons 2. To remove: Press both Battery Pack Release Buttons and pull Battery Pack out of slot. Battery Pack Page 10 WWW.LITHELI.COM U1GT17002...
- Page 11 • Remove battery pack. • Wipe external surfaces of the appliance 6. Install fully charged Battery Pack. with clean cloth. Store in an indoor dry area out of reach of children. U1GT17002 WWW.LITHELI.COM Page 11...
- Page 12 Spool 4. Clean interior of Spool Housing with soft cloth. Cover 5. Replace Spool, insert Line through Line Outlet in Line Spool Housing and pull line out past Line Cutter. Cutter Tabs 6. Replace Spool Cover. Page 12 WWW.LITHELI.COM U1GT17002...
- Page 13 Nylon Insertion Line Hole Line Outlet Spool Housing Spool Spool Cover 7. Replace Spool, insert Line through Line Outlet in Spool Housing and pull line out past Line Cutter. Line Cutter Tabs 8. Replace Spool Cover. U1GT17002 WWW.LITHELI.COM Page 13...
- Page 14 Record Product’s Serial Number Here: NOTE : If product has no serial number, record month and year of purchase instead. NOTE : Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 14 WWW.LITHELI.COM U1GT17002...
- Page 15 Assembly Diagram U1GT17002 WWW.LITHELI.COM Page 15...
- Page 16 Against Defects in Materials, Parts or Workmanship. Litheli at Its Own Discretion Will Repair or Replace Any and All Parts Found To Be Defective. All Units Must Be Used and Maintained in Accordance with The Directions and Regulations in The Operator's Manual.
