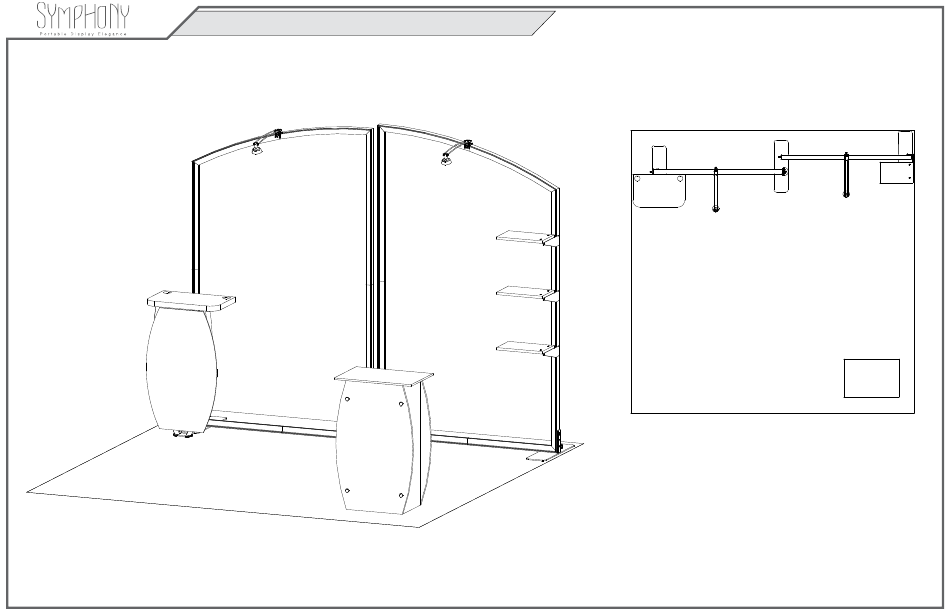

- Page 1 © 2024 Order #XXXXX SYK-1044 - 10’ x 10’ Portable Display 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Order #XXXXX Plan View = 1 sq ft...
- Page 3 © 2024 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 4 © 2024 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 Order #XXXXX SEG Graphic Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame.
- Page 6 © 2024 Order #XXXXX Case Packing Top View of Each Level Counter Shelf Legs Lights Shelf Workstation Graphic Graphics Shelf Setup Hardware Counter Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 2...
- Page 7 © 2024 Order #XXXXX Case Packing Top View of Each Level Shelf Shelf Counter Top Supports Supports Left & Back Panel Right Front Panel Side Panels Shelf Standoffs & Key Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 2 of 2...
- Page 8 © 2024 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
- Page 9 © 2024 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
- Page 10 © 2024 Order #XXXXX Backwall Frames Connection Item Qty. Description Steps: 6” x 22” Two-Connection Base Plate 1) Install Base Plate [14] to verticals [3/4] & [3/4] as shown. Base Plate Attachment detail. Base Plate Attachment 1) Place key hole over bolt When assembled on panel &...
- Page 11 © 2024 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to front of assembled frames. Insert narrow side of STEP 1: Attach Corners silicone welt into the channel at corner 1, with fabric to the outside. Repeat for opposite corner 2, then corner 3, Always insert graphic...
- Page 12 © 2024 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
- Page 13 © 2024 Order #XXXXX Backwall Attachments (cont’d) Steps: Shelf Attachment Hook bracket 1) Attach Shelves to backwall vertical. Hook the Mounting Bracket over the over vertical Shelf Attachment detail. vertical extrusion, then slide bracket down extrusion onto V4 connector on vertical extrusion. Extrusion Bracket Bracket...
- Page 14 © 2024 Order #XXXXX SYM-408 Reception Counter Steps: 1) Use screw caps to secure side panels to front & back panels. 2) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports. 3) Attach Counter Top to assembled pedestal base. See Counter Top Attachment detail.
