U-Line U-2224RGLINT-01A User Manual page 19

24" glass door refrigerator

Advertisement

USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

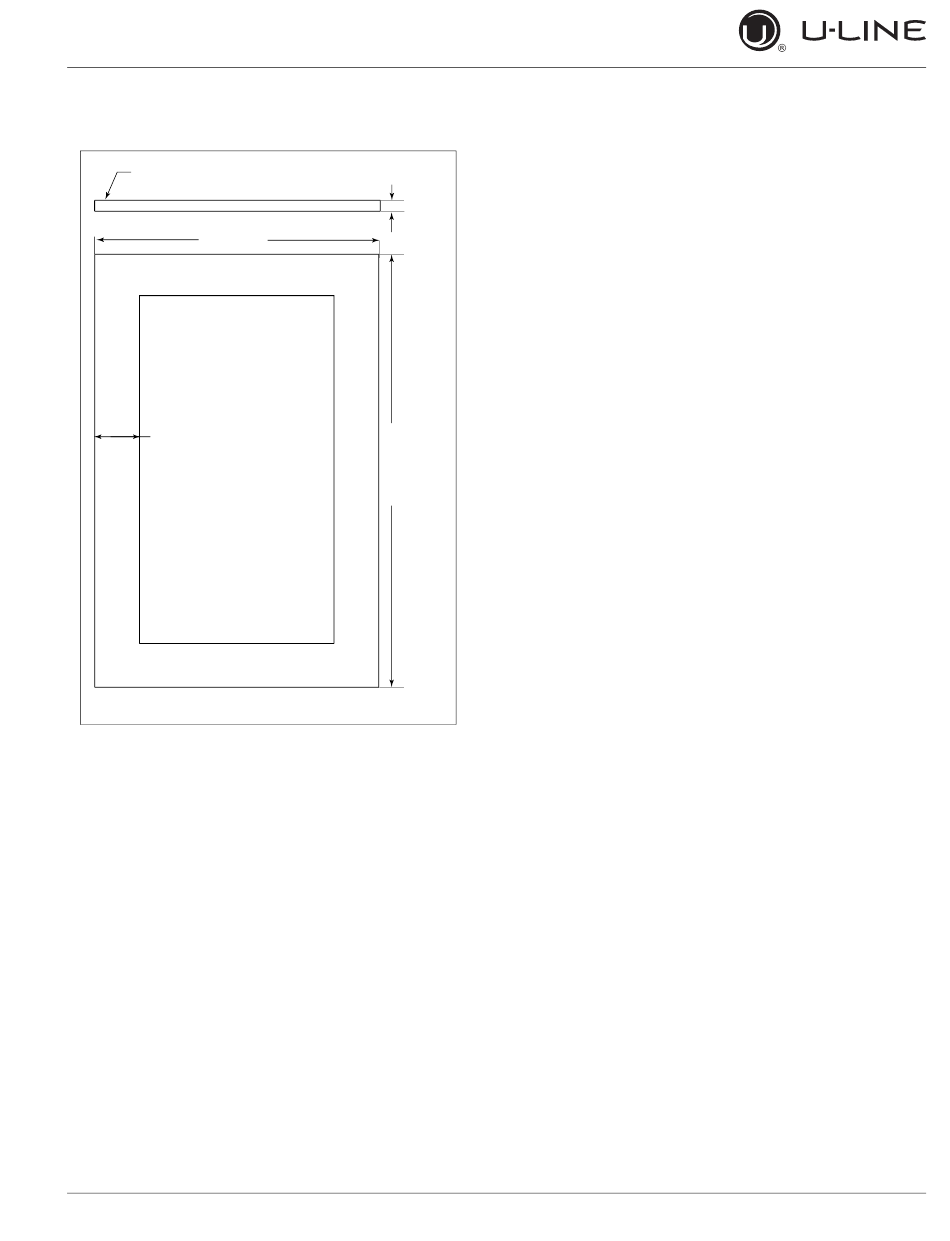

Extended Integrated Frame Dimensions
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY FRAME FLAT AND WITHOUT
INTERFERENCE
23-3/8"
(594 mm)
2-3/4" MIN
(70 mm MIN)
Integrated Frame
* A minimum of 1" (25 mm) is required from the
floor to the bottom of the extended integrated
panel/frame for proper ventilation.
NOTICE
The minimum border thickness for a 30"
(762 mm) tall integrated frame is 2-3/4"
(70 mm). The top/bottom border of the frame
must account for any additional length.
3/4"
(20 mm)
32-7/8" -
33-7/8"
(834 mm -
860 mm)*
u-line.com
Integrated Panel Dimensions 6
