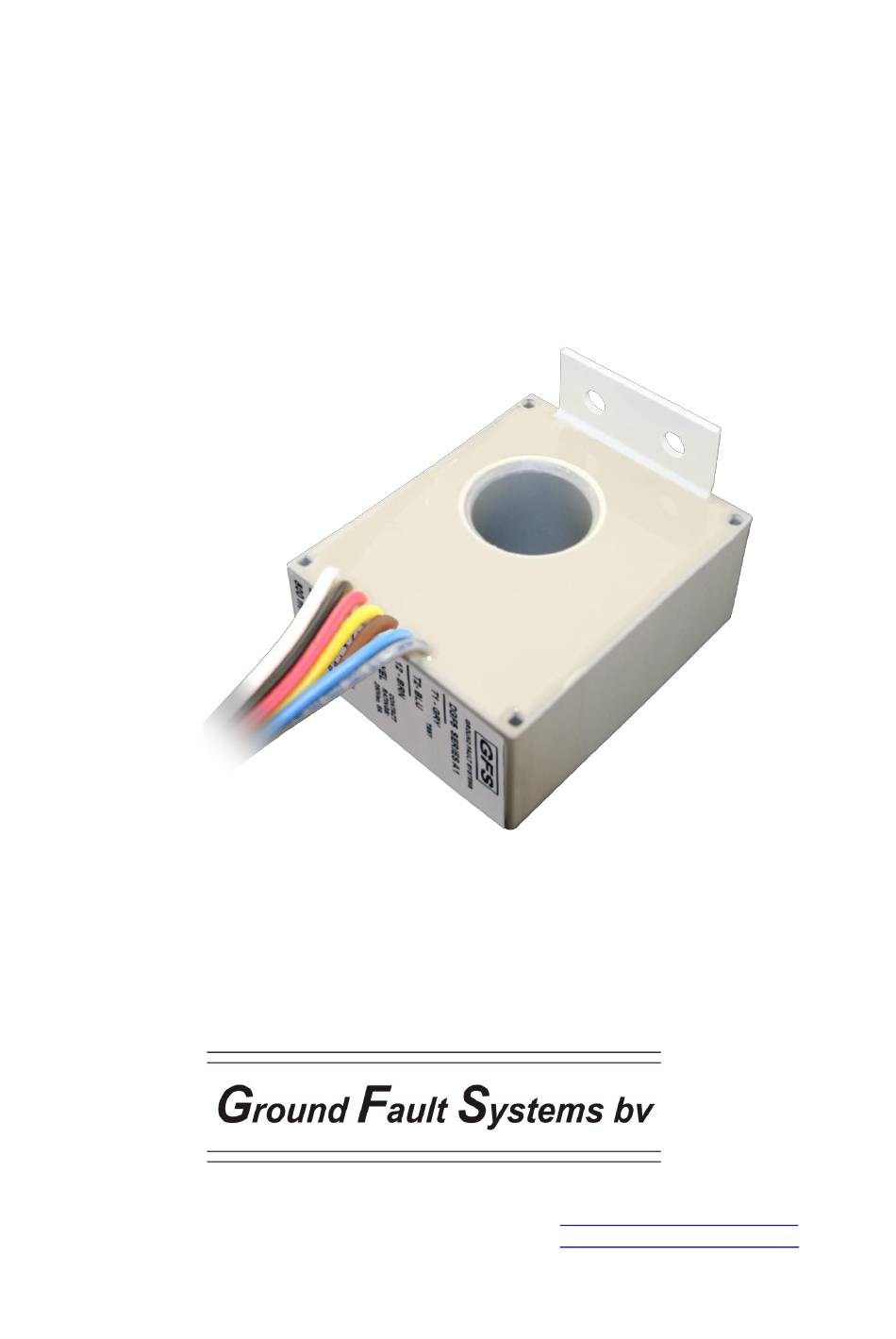

- Page 1 DGF5-2 Digital Ground Fault Protection reference manual Ground Fault Systems B.V. www.groundfaultsystems.com Rigtersbleek-Aalten 4B15 info@groundfaultsystems.com 7521 RB Enschede Tel: +31 53 4318628 The Netherlands CofC: 55400914...
- Page 2 External button Control Voltage System power Wires Relay contacts Mechanical properties (installed) Environment APPLICABLE STANDARDS TABLES AND FIGURES Figure 1 - Typical Field Connection Figure 2 - Dimensions DGF5-2 B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
- Page 3 CS. The DGF5-2 houses a non-isolated universal power supply of 24 – 48 V AC or DC and is equipped with form ‘C’ (3-wire), changeover contacts. The relay operating mode is Pulsed Output Auto Reset. The Ground Fault Current Trip level is factory set at 500 mA;...
- Page 4 Current Level or after three seconds. 2.5 Test The DGF5-2 can be connected to a remote momentary ,voltage free, N.O. button for a relay test (see section 6.2), using the T1 (grey) and T2 (blue) wire leads. A simulated current of 600 mA (1,2 times the Trip Current) replaces the measured current.
- Page 5 OLTAGE The DGF5-2 has a universal power supply input, accepting nominal voltages between 24 and 48 V AC or DC with a -45% / +10% tolerance for AC and -20% / + 10% for DC. The total range of accepted voltages is therefore 15,6 to 52,8 V AC and 19,2 to 52,8 V DC.
- Page 6 Figure 1 for typical field connections. Place the DGF5-2 in a clean dry enclosure. Locate the relay in the vicinity of the isolating device (circuit breaker or contactor) that is protecting the circuit being monitored. Provide maximum clearance between the DGF5-2 and any strong magnetic flux producing devices such as power transformers, autotransformers, control transformers, reactors, high power conductors, contactors and other buswork.
- Page 7 Ground Fault Protection Unit with built-in 28 mm current sensor, 24 – 48 V AC Control Voltage, for use on 660 V maximum, 45 - 450 Hz power systems. Can be expanded with remote test button. B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
- Page 8 6.4 System power Voltage and current range 0 – 660 V AC, 0 – 100 A Frequency range 45 - 450 Hz Isolation voltage 2,5 kV RMS, 1 minute B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
- Page 9 Depth 82 mm Internal CS opening diameter 28 mm Screws for screw mounting Suitable for 6,5 mm holes (2 needed) Weight (open) 0,38 kg Weight (packaged) 0,42 kg B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
- Page 10 10 G Vibration resistance (no malfunction) 10 G , 10 – 55 Hz at 1,5 mm double amplitude The DGF5-2 is encapsulated in polyurethane (PUR) to keep the exposure to mechanical shock, vibration and weather to a minimum. B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023...
- Page 11 UL 1053 UL standard for Safety Ground-Fault Sensing and Relaying Equipment, Class 1. CSA C22.2 NO. 144-M1991 CSA standard for Ground Fault Circuit Interrupters. File E203514 CE mark – Declaration of Conformity B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
- Page 12 8. T ABLES AND FIGURES Figure 1 - Typical Field Connection B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
- Page 13 Figure 2 - Dimensions DGF5-2 B.V. DGF5-2 reference manual, rev. 1.0, June 12, 2023 Ground Fault Systems...
