Wolverine Brass 80754 Installation Instructions

Installation Instructions for models:
80754 | 80753

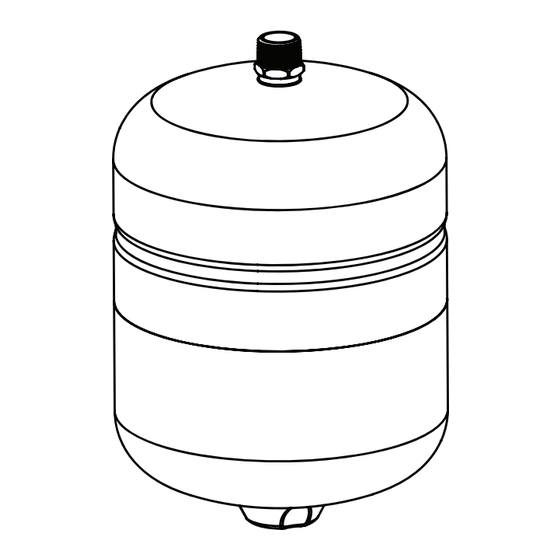

Hydronic System Expansion Tank
Improper installation, adjustment, alteration, service or maintenance can cause property damage, serious
bodily injury or death. Read instructions completely before proceeding with installation. Only qualified
personnel may install or service this equipment in accordance with local codes and ordinances.
Do not exceed 80psi (5.5 bar) air charge. Air charge pressure exceeding 80psi (5.5 bar) could become
hazardous and will void any and all warranties, either written or implied. Failure to follow these instructions
will result in the possibility of property damage, serious bodily injury or death.
This Expansion Tank is designed and intended for hydronic forced heat system water storage only. This
Expansion tank is NOT for potable water systems. It is intended to withstand a maximum pressure of 150psi
(10.3 bar) and a maximum temperature of 210°F (99ºC) for model 80754 and 240°F (116ºC) for model
80753. Any use other than for hydronic systems or a sustained or instantaneous pressure in excess of 150psi
(10.3 bar) or 210°F (99ºC) for model 80754 and 240°F (116ºC) for model 80753 is UNSAFE and can
cause property damage, serious bodily injury or result in death.
DISCLAIMER: The manufacturer of this tank does not accept any liability or other responsibility for personal injury
or property damage resulting from improper use, installation or operation of this tank or the system of which it is a
part.
NOTICE: The expansion tank, piping and your connections may in time leak. Select a location to install the
expansion tank where a water leak will not damage the surrounding area. The manufacturer is not responsible for
any water damage in connection with this expansion tank.
ACCEPTANCE VOLUME
AIR SIDE
PRE-PRESSURE
psi (bar)
20 (1.4)
40 (2.8)
60 (4.1)
80 (5.5)
GENERAL INFORMATION
DESCRIPTION
Maximum Pressure - psi
Maximum Temperature - °F
Tank Volume - gallons
Tank Acceptance - gallons
Air Pre-Charge - psi
Connection Size - inches
Diameter - inches
Length - inches
Weight - lbs
NEED HELP?
For additional assistance or service please contact:
WATER SIDE VOLUME @ 150psi
(10.3 bar) (gallons)
80754 80753
(1.48) (3.42)
(1.26) (2.88)
(1.00) (2.49)
(0.80) (1.85)
80754 80753
150
210
2.1
1.26
12
½" MNPT ½" MNPT
8
12
4.5
CAUTION
Pre-charge prior to installation in the system. Do not adjust the air
pre-charge of the expansion tank with the system under pressure.
The air pre-charge should only be adjusted under zero system
pressure.
If necessary, adjust the pressure reducing valve to the expansion
tank pre-charge as determined in Step 2.
IMPORTANT!
• A pressure relief valve sized and installed in accordance with
local codes must be incorporated in the systems requiring a
combined temperature and pressure safety relief valve. The
temperature and pressure safety relief valve should be sized and
installed in accordance with local codes.
• Never plug a Safety Relief Valve.
150
• This product's performance and life span can be significantly and
240
adversely impacted by aggressive water conditions. A water test
4.5
should be done at regular intervals looking for corrosive water,
acids, and other contaminants which must be teated immediately if
2.8
present.
12
• The system piping must be properly grounded to earth and a
11
dielectric union is recommended in the installation.
15
8
www.wolverinebrass.com
800-944-9292
92-80753-80754-03
