STAMINALIFT TS6000

OPERATOR MANUAL

SAFETY WARNING

Read this manual before using the unit and follow all instructions

Need help?

Do you have a question about the STAMINALIFT TS6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for RIHA Industries STAMINALIFT TS6000

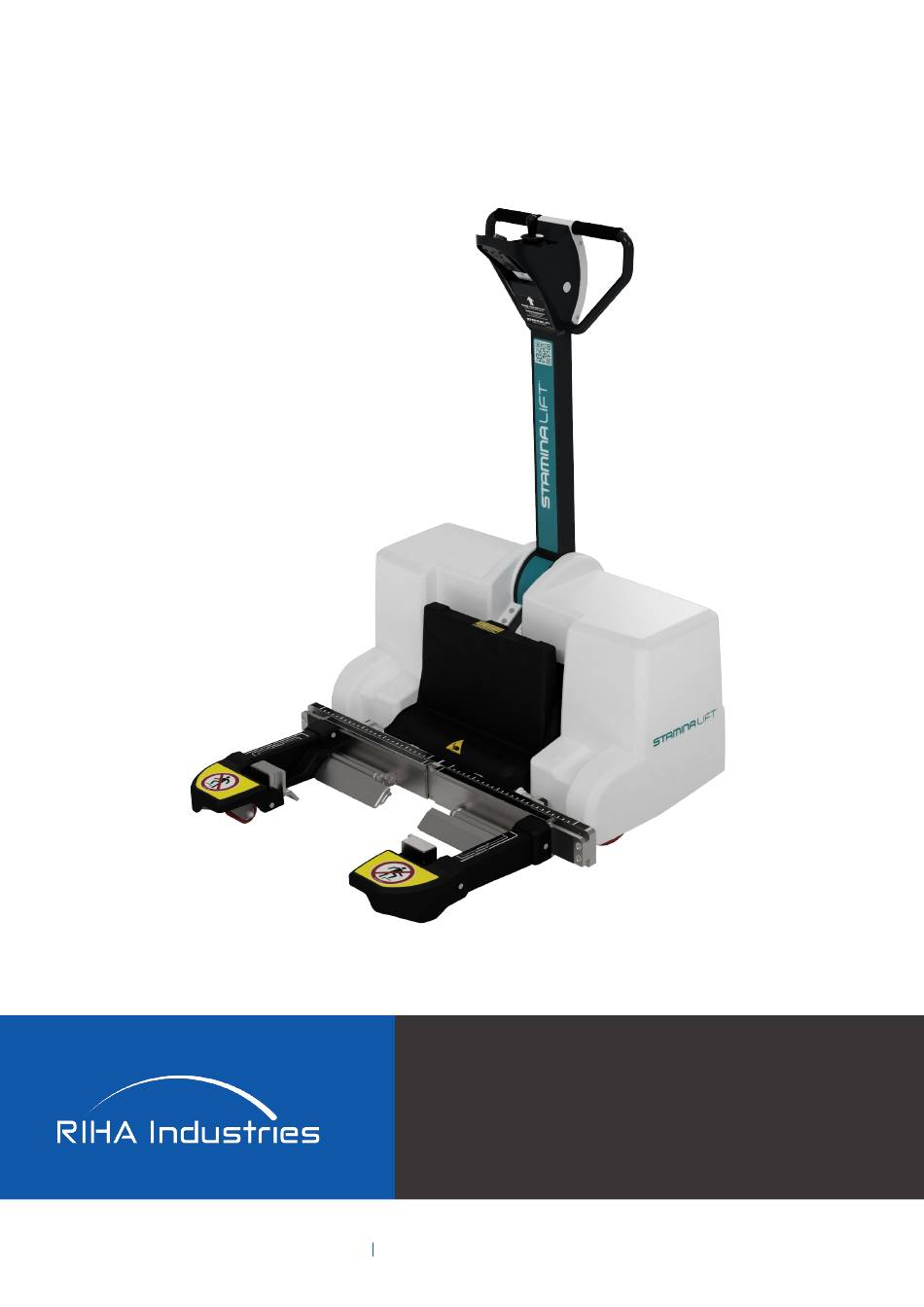

Page 1 STAMINALIFT TS6000 OPERATOR MANUAL SAFETY WARNING Read this manual before using the unit and follow all instructions...
Page 2 Congratulations on the purchase of your new StaminaLift TS6000. Please direct any queries to your nearest authorised StaminaLift service agent quoting the details below: Agent Details JD Healthcare Group Agent Name: Agent Address: 3/22 Beaumont Rd Mt. Kuring-Gai Town/Suburb State:...
Page 3 Current Version – Issue D (Serial 600052 onwards) RIHA Industries Pty Ltd Unit 3, 59 - 61 West Avenue Edinburgh, South Australia, Australia, 5111 ABN: 30 643 058 986 TS6000 Transfer System Language Version: English – Original Instructions STAMINALIFT TS6000 OPERATOR MANUAL...
Page 4 2.10. Lift & Jaw Mode 2.11. Jaw height indicator 2.12. Jaw Open and Close 2.13. The Horn 2.14. Handle Adjustment 2.15. Battery Gauge 2.16. Jaw Adjustment 20-21 2.17. Bypass Systems 2.18. Batteries 2.19. Battery Charger 23-24 STAMINALIFT TS6000 OPERATOR MANUAL...
Page 5 Replacement of Parts 4.6. Transportation 4.7. Disposal TROUBLESHOOTING OTHER INFORMATION 6.1. Approved Beds & Stretchers 6.2. Warranty Conditions 6.3. Standards Compliance 6.4. EMC – Guidance and 51-54 Manufacturers Declaration 6.5. Essential Performance 6.6. Trademarks & Patents STAMINALIFT TS6000 OPERATOR MANUAL...
Page 6 Bed: INTENDED USE The StaminaLift TS6000 is a transporting device that effectively and efficiently moves heavy wheeled objects such as hospital beds, trolleys and stretchers. The StaminaLift TS6000 is specifically designed for the transportation of beds and stretchers with a patient over smooth even floors within hospitals.
Page 7 Clean and Decontaminate the Unit in accordance with Section 4.2. • Dispose of components in accordance with Section 4.7. • Only use accessories approved for the Unit by the Company. • Read, understand, and follow all instructions provided with the approved accessory. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 8 Unit), or attempt to use the supplied Battery Charger to charge any device other than the Unit. Note: Do not attempt to move bed/patent combinations in excess of 800kg without assistance – Refer to Section 3.4 STAMINALIFT TS6000 OPERATOR MANUAL...
Page 9 Horn Button. See section 2.13 for instructions. Lift & Jaw Toggle Button. Toggle to operate lifting and lowering of rack, opening and closing of jaws. See section 2.10 and section 2.12. Driving speed adjustment. See section 2.7. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 10 The TS6000 is not rated for use at high altitude (>2000m). • IP21 2.2 Electrical Specification: Normal Use Operating Voltage: 24±6V DC 93A max (<10s @ 20°C initial) 60A nominal 20A cont. (@ 20°C ambient) 15A nominal Charging AC input: 115V/230V selectable 4/2A Max 60/50Hz STAMINALIFT TS6000 OPERATOR MANUAL...
Page 11 Suits Bed wheels measuring 125mm, 150mm and 200mm in diameter. • Suits 100mm Bed wheels by using the Jaw Insert Accessory (S00072), available separately • Suits bed wheels with outside to outside measurements ranging from 550mm to 1010mm. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 12 Brake Release Cap RH. Remove to access Brake Release pin. Bypass System Brake Release Cap LH Remove to access Brake Release pin Jaw Mechanism Attaches securely to the bed’s wheels. The Jaws are adjustable to fit different wheel sizes STAMINALIFT TS6000 OPERATOR MANUAL...
Page 13 Illuminates green when the Jaw is in Drive mode. Bypass System Lower Jaws Lowers jaws to release bed in case of controller failure Open Jaws Opens jaws to release bed in case of controller failure STAMINALIFT TS6000 OPERATOR MANUAL...
Page 14 As soon as the joystick is released back to the centre the unit will drive normally. OONAPU is a feature that prevents sudden and unexpected movements if the joystick is not centred when the controller is turned on. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 15 The Unit starts to drive in the direction of the joystick movement. The amount of joystick movement determines the speed of the Unit. If the joystick is moved further from the centre, the Unit will drive faster. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 16 Press the Emergency Stop Button to activate it. When depressed the Emergency Stop will stop drive, lift and jaw functions and activate the bypass System. To release the Emergency Stop Button and re-activate the drive, lift and jaw functions, rotate the button clockwise. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 17 The ‘Drive’ will illuminate in green. 2.11 JAW HEIGHT INDICATOR Use the Lift mode to raise and lower the jaws.Raise the jaws to Drive position. The LED will be green. Lower the Jaws to Connect position. The LED will be red. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 18 2.14 HANDLE ADJUSTMENT You can adjust the position of the handle by pulling the Handle Adjustment Lever upwards. Release the lever to lock the handle in the new position POSITION 1 POSITION 2 POSITION 3 POSITION 4 STAMINALIFT TS6000 OPERATOR MANUAL...
Page 19 The Fault Indicator LED will show a Flash Code. Contact your service agent. The LEDs slowly flash from right to left indicating that the Controller is locked. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 20 The pivoting Adjustment Flap can be positioned up or down. Align the inside edge of the Block with the marks on the Wheel Size Selector Label to suit the wheel size. 125mm wheel setting Alignment Label Adjustment Block Adjustment Flap STAMINALIFT TS6000 OPERATOR MANUAL...
Page 21 150mm wheel setting Alignment Label Adjustment Block Adjustment Flap 200mm wheel setting Alignment Label Adjustment Block Adjustment Flap STAMINALIFT TS6000 OPERATOR MANUAL...
Page 22 WARNING : Failure to use the Unit in accordance with this Manual may result in personal injury or damage to property, and will invalidate the Unit’s warranty (refer to Section 6.2). STAMINALIFT TS6000 OPERATOR MANUAL...
Page 23 The batteries are only to be replaced by an agent. Chassis covers can only be removed by trained service personnel. 2.19 BATTERY CHARGER The batteries cannot be overcharged; frequent charging will prolong battery life. The Drive and Lift functions are disabled when the Battery Charger is connected. Battery Charger Power LED STAMINALIFT TS6000 OPERATOR MANUAL...
Page 24 Unit by holding connector and pulling gently. Carefully coil and store the cables so they do not present a hazard to others. Secure the Battery Charger to a wall or shelf using the supplied bracket and fasteners. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 25 Unit repaired by an Agent. Follow your Organisation’s • Fault indication on the procedures to tag the Unit Controller’s Information as faulty to ensure no other Gauge operators attempt to use it. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 26 Press and hold the Bypass System – Jaw Open Button. Observe the jaws Section 2.17 opening to their maximum width. If either Bypass System does not work do not use the Unit. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 27 Ensure any loose, faded, or otherwise damaged warning labels are noted for repair immediately. Do not operate the unit unless the correct warning labels are present. Damage Check Carry out a visual inspection of the unit to ensure nothing is damaged or missing. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 28 Only connect to a Bed on flat, environment. Certain bed/ level ground. patient combinations may not be appropriate for this • Position the Bed so that there is device. Unsuitable beds are adequate space to move it once to be identified by trained connected hospital staff STAMINALIFT TS6000 OPERATOR MANUAL...
Page 29 To ensure the shortest overall connected length orientate the Bed’s caster wheels inwards. If there is interference between the Unit and the Bed, try orienting the Bed’s caster wheels outwards. Caster wheel inwards Caster wheel outwards Orient the Bed’s caster wheels so that they are parallel with jaws. Incorrect Correct STAMINALIFT TS6000 OPERATOR MANUAL...
Page 30 The Unit is designed for operation and storage in a clean indoor environment with the following characteristics: The Unit will compensate for some central misalignment. In Drive Mode, align the Unit centrally at the end of Bed. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 31 Lower the Jaws Lower the Jaws so that they are in the Connect position. The Jaw Height Indicator will be red. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 32 Open the Jaws Open the Jaws so they clear the outside of the Bed’s castor wheels. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 33 Drive forward Slowly drive the Unit forward until the sloped surface of each Adjustment Flap is touching each of the Bed’s castor wheels. For maximum control reduce the drive speed STAMINALIFT TS6000 OPERATOR MANUAL...
Page 34 Close the Jaws so that each of rubber Jaw surfaces are against the outside of each of the Bed’s castor wheels. The Unit is programmed to provide the correct gripping force to secure the Bed’s wheels. The jaws will stop automatically when they touch the Bed’s castor wheels STAMINALIFT TS6000 OPERATOR MANUAL...
Page 35 Lift the Jaws Change to Lift Mode and raise the Jaws to their maximum height. The Jaw Height Indicator will change to green. Before lifting, check that there are no obstructions. Ensure the Lift Indicator is illuminated green STAMINALIFT TS6000 OPERATOR MANUAL...
Page 36 Check that the Bed’s castor wheels have been lifted off the ground. Lift the Jaws Jaw in highest position STAMINALIFT TS6000 OPERATOR MANUAL...
Page 37 Bed. BE PREPARED FOR: Persons stepping out of doorways. Persons (especially small children) or objects behind you when reversing. Hearing impaired persons not able to hear the horn Tight spaces, slopes and elevators STAMINALIFT TS6000 OPERATOR MANUAL...
Page 38 Emergency Stop Button to prevent the Unit moving within the elevator. • When leaving the Unit, choose a location which is out of the way, depress the Emergency Stop Button and lock the Controller to prevent inadvertent operation. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 39 Only lower and release the Bed on flat, level ground. Lower the Jaws Lower the Jaws to the minimum height so that the Bed’s wheels are on the ground. The Jaw Height Indicator will be red. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 40 Open the Jaws Open the Jaws to their maximum width to clear bed and trolley wheels. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 41 Drive the Unit away from the bed Reverse the Unit away from the Bed. Ensure the Jaws to not catch the Bed’s wheels while reversing. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 42 Close the Jaws Close the Jaws to their minimum width. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 43 Raise the Jaws to Drive mode Raise the Jaws to Drive mode. The Jaw Height Indicator will change to green. Drive the Unit away. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 44 Always lock the Controller when leaving the Unit unattended. To Lock the Controller Press the on/off button for 4 seconds when the Controller is turned on. The Controller turns off immediately when the on/off button is pushed. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 45 Store the Unit in an area with restricted public access to avoid improper use. • Use the Joystick to close the jaws to the minimum width to reduce tripping hazards. • Depress the Emergency Stop Button • Lock the Controller STAMINALIFT TS6000 OPERATOR MANUAL...
Page 46 The Unit must only be serviced by an Agent. Do not service the TS6000 while in use – always refer to the service manual. A 6 monthly service must be carried out to not void the warranty. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 47 This product has been supplied by an environmentally aware manufacturer. Please recycle this product at the end of its life in accordance with your local regulations. This product may contain substances that could be harmful to the environment if disposed of in a landfill. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 48 Section 2.10 The Jaw will not close Is the jaw already at its minimum width? Section 2.12 Battery Gauge Refer to the Battery Gauge codes or con- Section 2.15 LEDs flashing tact an Agent for assistance. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 49 OTHER INFORMATION 6.1. APPROVED BEDS & STRETCHERS Contact your Agent to enquire about compatibility of the StaminaLift TS6000 with your bed and stretcher needs. 6.2. WARRANTY CONDITIONS The Unit is warranted by the Company to be free from faulty materials or workmanship for a period of twelve months or 1 year from date of purchase.
Page 50 United States: UL 60601-1 (previously UL 2601-1) • Canada: CAN/USA C22.2 No 601.1 • European Union: EN 60601-1 • BS EN 60601-1 • Australia/NZ: AS/NZ 3200.1.0 • Japan: JIS T 0601-1 This product contains dry natural rubber. STAMINALIFT TS6000 OPERATOR MANUAL...
Page 51 Guidance and manufacturer’s declaration – electromagnetic emissions The StaminaLift TS5000 Hospital Bed Mover is intended for use in the electromagnetic environment specified below. The customer or the user of the StaminaLift TS6000 Hospital Bed Mover should assure that it is used in such an environment.
Page 52 Guidance and manufacturer’s declaration – electromagnetic immunity The StaminaLift TS6000 Hospital Bed Mover is intended for use in the electromagnetic environment specified below. The customer or the user of the StaminaLift TS6000 Hospital Bed Mover should assure that it is used in such an environment.
Page 53 Guidance and manufacturer’s declaration – electromagnetic immunity The StaminaLift TS6000 Hospital Bed Mover is intended for use in the electromagnetic environment specified below. The customer or the user of the StaminaLift TS6000 Hospital Bed Mover should assure that it is used in such an environment.
Page 54 Recommended separation distances between portable and mobile RF communications equipment and the Stamina Lift TS6000 The StaminaLift TS6000 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the StaminaLift TS6000 can help prevent...
Page 55 Unit 3, 59 - 61 West Avenue Edinburgh, South Australia, Australia, 5111 ABN: 30643058986 E: info@rihaindustries.com W: www.rihaindustries.com...
