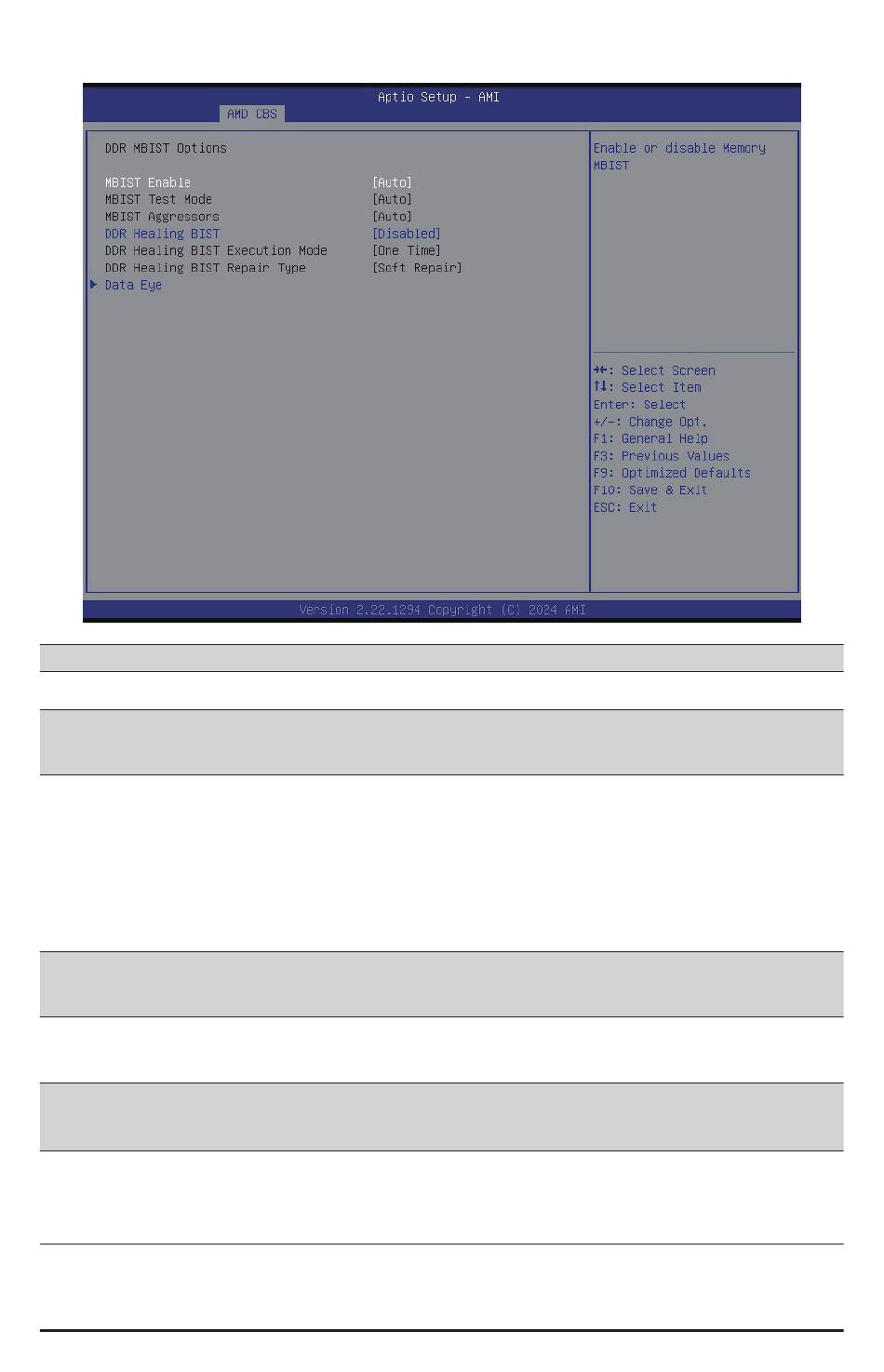

5-3-3-3 DDR MBIST Options
Parameter
DDR MBIST Options
MBIST Enable
MBIST Test Mode
(Note1)
MBIST Aggressors
(Note1)
DDR Healing BIST
DDR Healing BIST Execution
Mode
(Note2)
DDR Healing BIST Repair
Type
(Note2)
(Note1) This item appears when MBIST Enable is set to Enabled.
Description
Enable/Disable the Memory MBIST function.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
Selects MBIST Test Mode.
Interface Mode: Tests Single and Multiple CS transactions and Basic
Connectivity.
Data Eye Mode: Measures Voltage vs. Timing.
Options available: Auto, Both, Interface Mode, Data Eye Mode. Default
setting is Auto.
Enable/Disable MBIST Aggressor test.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Options available: Disabled, PMU Mem BIST, Self-Healing Mem BIST,
PMU and Self-Healing Mem BIST. Default setting is Disabled.
Options available: One Time, Every boot.
Default setting is One Time.
For DRAM errors found in the BIOS memory BIST select the repair type.
Options available: Soft Repair, Hard Repair, No Repairs -Test only. Default
setting is Soft Repair.
