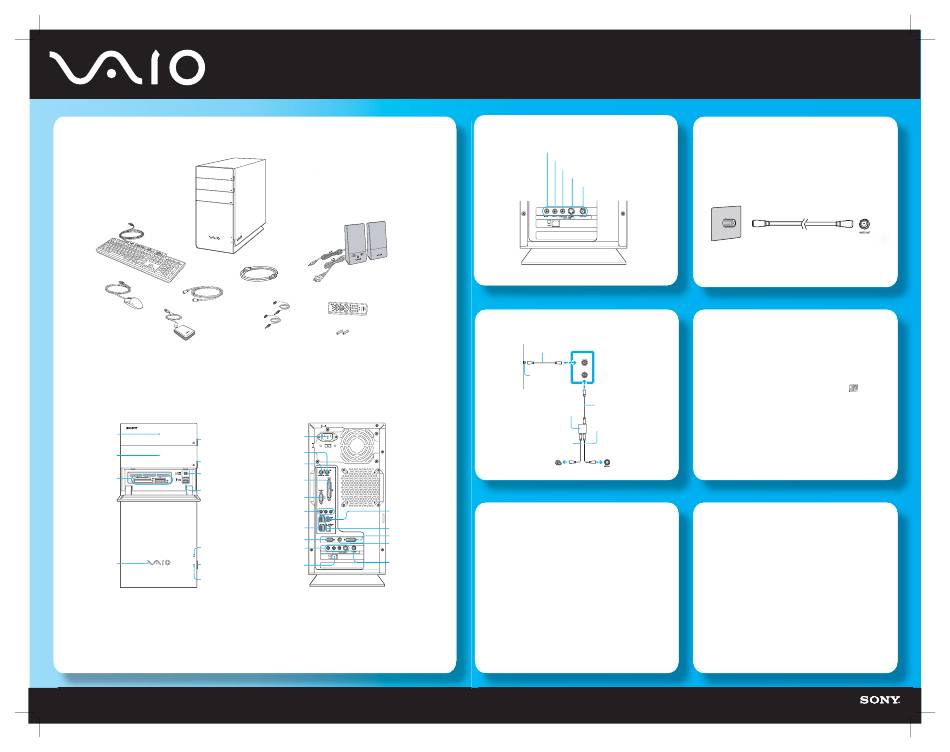

Sony VAIO VGC-RB32 Manual

Black Pantone 2925 C
VGC-RB30 Series
Meet your new

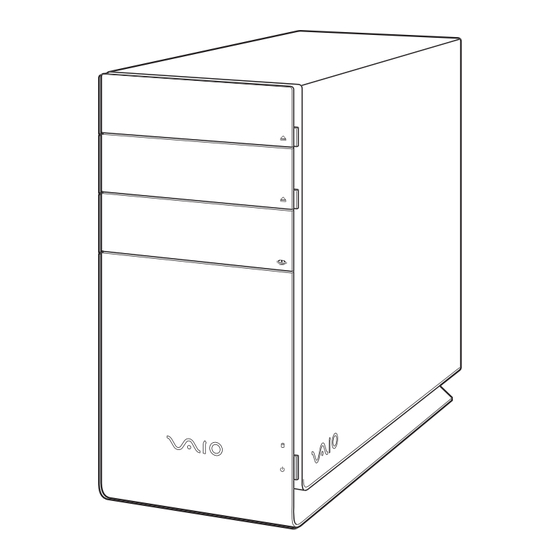

System unit
Keyboard
Mouse
Infrared receiver*
*Not supplied with all VAIO® computer models. For details on the accessories supplied with your computer, see the online Specifications sheet. ®
Front Panel
Optical drive 1
Optical drive 2
Media card readers
and access indicator
Power indicator
(VAIO)
*258970301*
2-589-703-01 © © 2005 Sony Electronics Inc. All rights reserved.
Downloaded from: https://www.usersmanualguide.com/
Your VAIO® O O computer is not supplied with System or ®
Application Recovery CDs. Use the VAIO Recovery Wizard
utility program to recover your computer's operating system
and preinstalled software.
Speakers
Power cord
Remote control*
TV coaxial cable*
Remote sensor controls (2)*
AA batteries* (2)
Back Panel
AC input port
Eject button
Mouse port
Eject button
Keyboard port
i. LINK 4-pin S400
(IEEE 1394) port Printer port
Universal Serial Bus
Monitor port*
(USB 2.0) ports
Audio jacks
Universal Serial Bus
(USB 2.0 ports)
Monitor port*
Hard disk drive Audio / Video*
access indicator ports & jacks
Power button Modem line
jack
Standby indicator
*Not available with all VAIO® computer models. ®
Printed in USA.
Audio / Video
Locating
Composite audio R In jack
Composite audio L In jack
Composite video In jack
'
This feature is not available with all VAIO® computer models.
Set-top box
Setting up
TV coaxial cable
(back panel detail)
(optional)
Cable service
access (wall outlet)
Splitter
(optional)
TV coaxial cable
(optional)
VHF/UHF port
(television)
This feature is not available with all VAIO® computer models.
I.LINK 6-pin S400
Hard Disk Drive Recovery
port (IEEE 1394)
Ethernet port
Monitor (DVI-D) port*
Your computer is equipped with the VAIO Recovery Wizard, a utility program
TV Out (S-Video) jack* that recovers your computer's operating system and preinstalled software to
original factory-installed settings.
VHF/UHF For online information about hard disk recovery:
port*
1 Click Start > Help and Support.
2 From the VAIO Help And Support Center menu,
click VAIO Recovery Options.
To access the VAIO Recovery Wizard utility from Windows XP:
1 Click Start > Control Panel > Performance and Maintenance.
2 From the Performance and Maintenance window,
click VAIO Recovery Wizard.
Setting up
S-video In jack
VHF/UHF port
Cable service access
(wall outlet)
® This feature is not available with all VAIO® computer models.
Starting
Set-top box
Your VAIO® computer is enhanced with the Microsoft ®
Media Center Edition* operating system.
VHF/UHF
IN
Use the Media Center setup wizard to activate and configure your
audio/visual settings.
VHF/UHF
OUT
Using the remote control
1 Point the remote control at the remote sensor and press
2 Use the arrow buttons on the remote control to locate and
select menu options. Press OK to activate your selection.
TV coaxial cable
(optional)
Using the mouse
1 Click Start > Media Center.
TV coaxial cable
2 Use the mouse to locate and select menu options.
(supplied)
Click to activate your selection.
*The Microsoft® Windows ®
VHF/UHF port
VAIO® computers. See your online specifications sheet for more information about your ®
(computer)
computer's operating system.
®
Support Options
VAIO® Computer User Guide
The VAIO® Computer User Guide provides detailed information on how to ®
maximize your computer capabilities and solve common problems.
1 Click Start > Help and Support.
2 From the VAIO Help And Support Center menu,
click VAIO User Guide.
VAIO® Computer Specifications sheet
The online specification sheet describes the hardware and software
configuration of your VAIO computer model.
1 Connect to the Internet.
2 Go to http://www.sony.com/pcsupport*.
3 Click the Documentation link and follow the on-screen instructions to
locate your model's specification sheet.
*The Sony online Support Web site provides technical support and links to helpful information
about your VAIO computer.
Cable access
VHF/UHF port
(on computer
back panel)
TV coaxial cable (supplied)
®
Media Center
® ® Windows ® ® XP
.
® ® XP Media Center Edition operating system is available on certain
