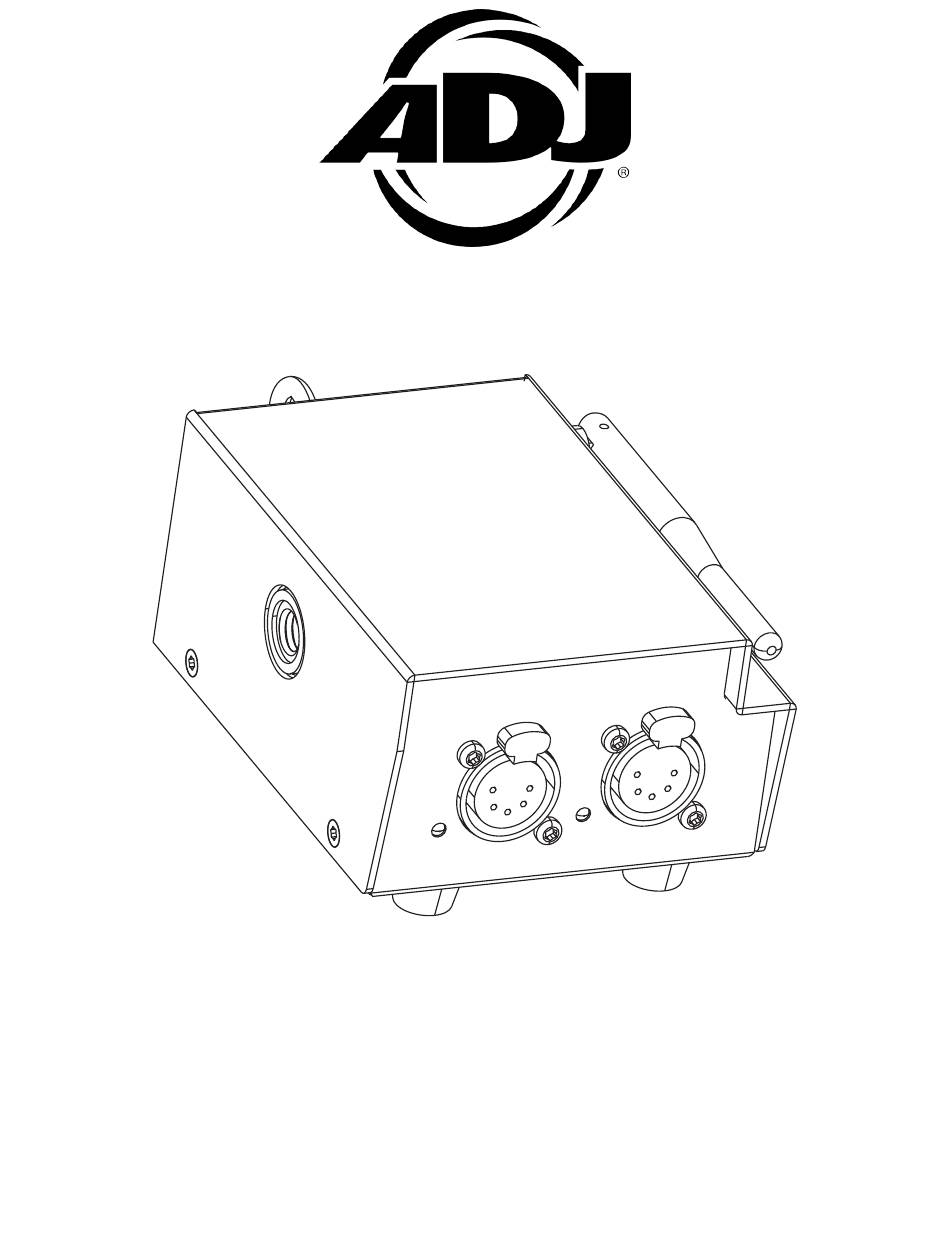

- Page 1 WIFI NET 2 User Manual...
- Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Installation Connections Remote Device Management (RDM) Setup Maintenance | Ordering Information Specifications Dimensional Drawings FCC Statement...
- Page 4 Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | support@adj.eu ADJ PRODUCTS LLC USA 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-2650 | Fax 323-532-2941 | www.adj.com...
- Page 5 All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
- Page 6 WA R R A N T Y R E G I S T R AT I O N This device carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.
- Page 7 To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this device and only the original rigging parts included with this device should be used for installation.
- Page 8 S A F E T Y G U I D E L I N E S • For your own personal safety, please read and understand this manual in its entirety before attempting to install or operate this device. • Save the packing carton for use in the unlikely event the device may have to be returned for service.
- Page 9 O V E R V I E W Ethernet Wifi Link Power Port Indicator Button Antenna Indicator Link Indicator Safety Power DMX Out Cable Mounting Indicator Input Ports Loop Hole...
- Page 10 I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep device at least 8in. (0.2m) away from any flammable materials, decorations, pyrotechnics, etc. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
- Page 11 I N S TA L L AT I O N CLAMP INSTALLATION This device features an M10 bolt hole built into the side of the device, as well as a safety cable loop located on the rear face of the fixture beside the power button (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, use the mounting hole to insert and install a mounting clamp.
- Page 12 This device receives input signals from a computer or DMX controller via Ethernet cable only, and sends output signals via both WiFi and DMX cable. Refer to the diagram below. Fixture Output via WiFi Ethernet Cable Wifi Net 2 Outputs via Controller / Computer DMX Cable Fixture Fixture...
- Page 13 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
- Page 14 S E T U P Follow the directions below to set up your device. Please note: for best signal quality, position the antenna at a 45-degree angle. 1. Use the included power supply to connect the unit to power, then press the power button to switch the unit on.
- Page 15 S E T U P 4. Go to your browser window. Enter in the exact IP address (for all numbers this time) shown on the bottom of your device. This should take you to a login screen, where you can use the password “ADJadmin”...
- Page 16 S E T U P Now that initial setup has been complete, you can jump to various pages in your web browser to con- figure various operational settings and functions. DMX PORT Use this page to select the operating protocol for this device, and set activation status, network, and universe for each of the 2 DMX ports.
- Page 17 S E T U P UPDATE Use this page to update the software on this device. Simply click the “Choose File” button to select the update file, then click “Start Update” to commence the update process. PASSWORD Use this page to update the software on this device. Enter the current password in the “Old Pass- word”...
- Page 18 Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this device. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
- Page 19 S P E C I F I C AT I O N S Features: • ArtNet / sACN /DMX, 2 Port Node • 2.4G Wifi • Line Voltage or PoE powered • Configurable from unit menu or web browser Protocols: •...
- Page 20 D I M E N S I O N A L D R AW I N G S 3.5in (88.50mm)
- Page 21 F C C S TAT E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
