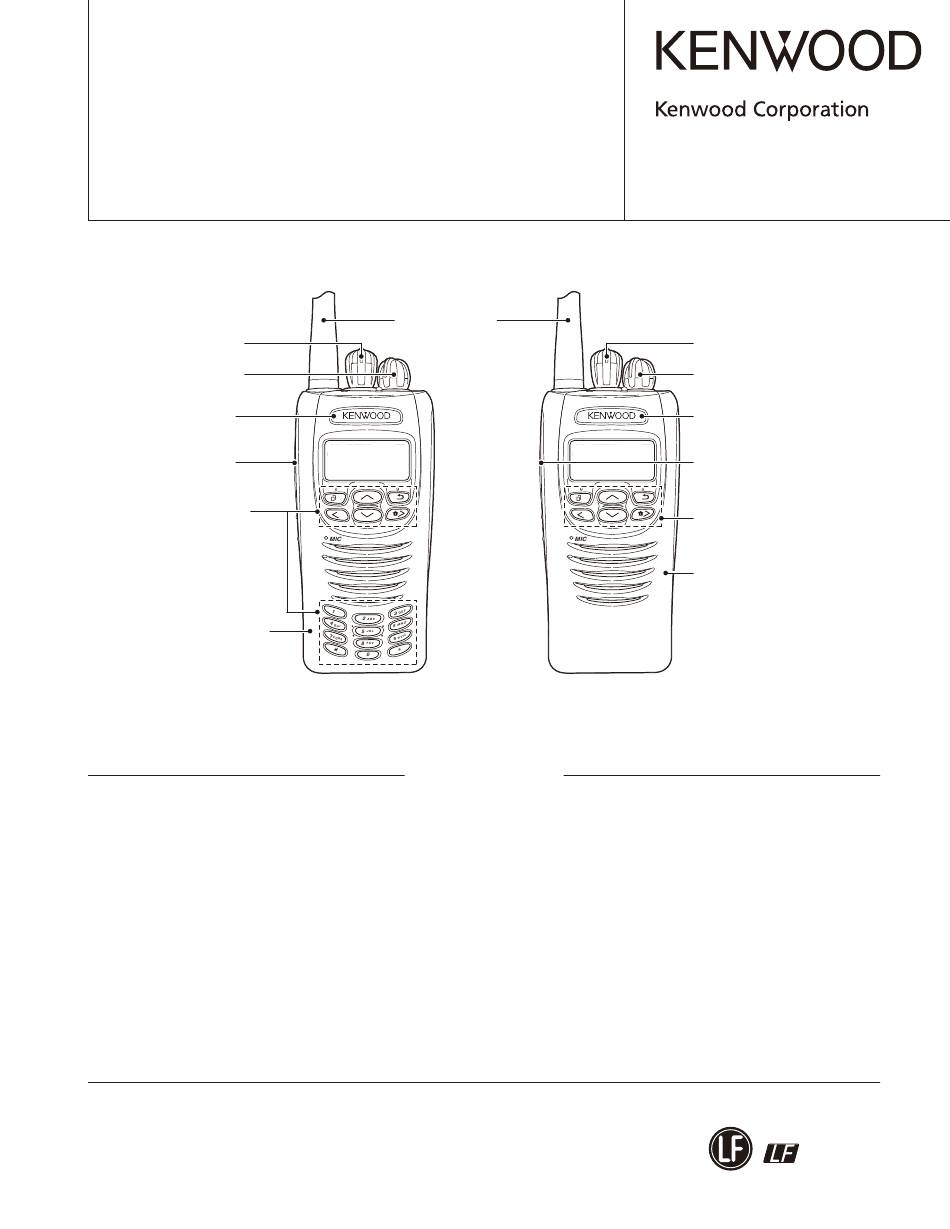

VHF DIGITAL TRANSCEIVER
NX-200
SERVICE MANUAL
E version
NX-200 E
Knob (Selector)
(K29-9408-13)
Knob (Volume)
(K29-9407-03)
Badge
(B43-1606-04)
Knob (PTT)
(K29-9405-03)
Packing (18 key)
(G53-1766-11)
Plastic cabinet assy
(18 key)
(A02-4003-23)
Does not come with antenna. Antenna is available
as an option.
GENERAL ................................................................... 2
SYSTEM SET-UP ....................................................... 3
REALIGNMENT ......................................................... 3
INSTALLATION .......................................................... 7
DISASSEMBLY FOR REPAIR .................................... 8
CIRCUIT DESCRIPTION .......................................... 18
COMPONENTS DESCRIPTION ............................... 24
PARTS LIST ............................................................. 26
EXPLODED VIEW .................................................... 37
PACKING .................................................................. 38
TROUBLE SHOOTING ............................................ 39
ADJUSTMENT ........................................................ 43
This product complies with the
RoHS
Helical Antenna
(KRA-22: option)
CONTENTS
directive for the European market.
© 2009-1 PRINTED IN JA PAN
B51-8858-00 ( N ) 157
NX-200 E3
TERMINAL FUNCTION ........................................... 68
CONTROL UNIT (X53-4260-XX) ........................ 76
TX-RX UNIT (X57-7360-10) ............................... 80
INTERCONNECTION DIAGRAM ............................ 84
SCHEMATIC DIAGRAM .......................................... 86
BLOCK DIAGRAM ................................................ 100
LEVEL DIAGRAM ................................................. 104
KNB-47L (Li-ion Battery Pack) ........................ 105
KNB-48L (Li-ion Battery Pack) ........................ 105
SPECIFICATIONS ................................. BACK COVER
Knob (Selector)
(K29-9408-13)
Knob (Volume)
(K29-9407-03)
Badge
(B43-1606-04)
Knob (PTT)
(K29-9405-03)
Packing (6 key)
(G53-1765-11)
Plastic cabinet assy
(6 key)
(A02-4002-23)
This product uses Lead Free solder.
