htech WG5400 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
EN
Dishwasher / User Manual
WG5400

Advertisement

loading
Need help?

Need help?

Do you have a question about the WG5400 and is the answer not in the manual?

Questions and answers

Related Manuals for htech WG5400

Summary of Contents for htech WG5400

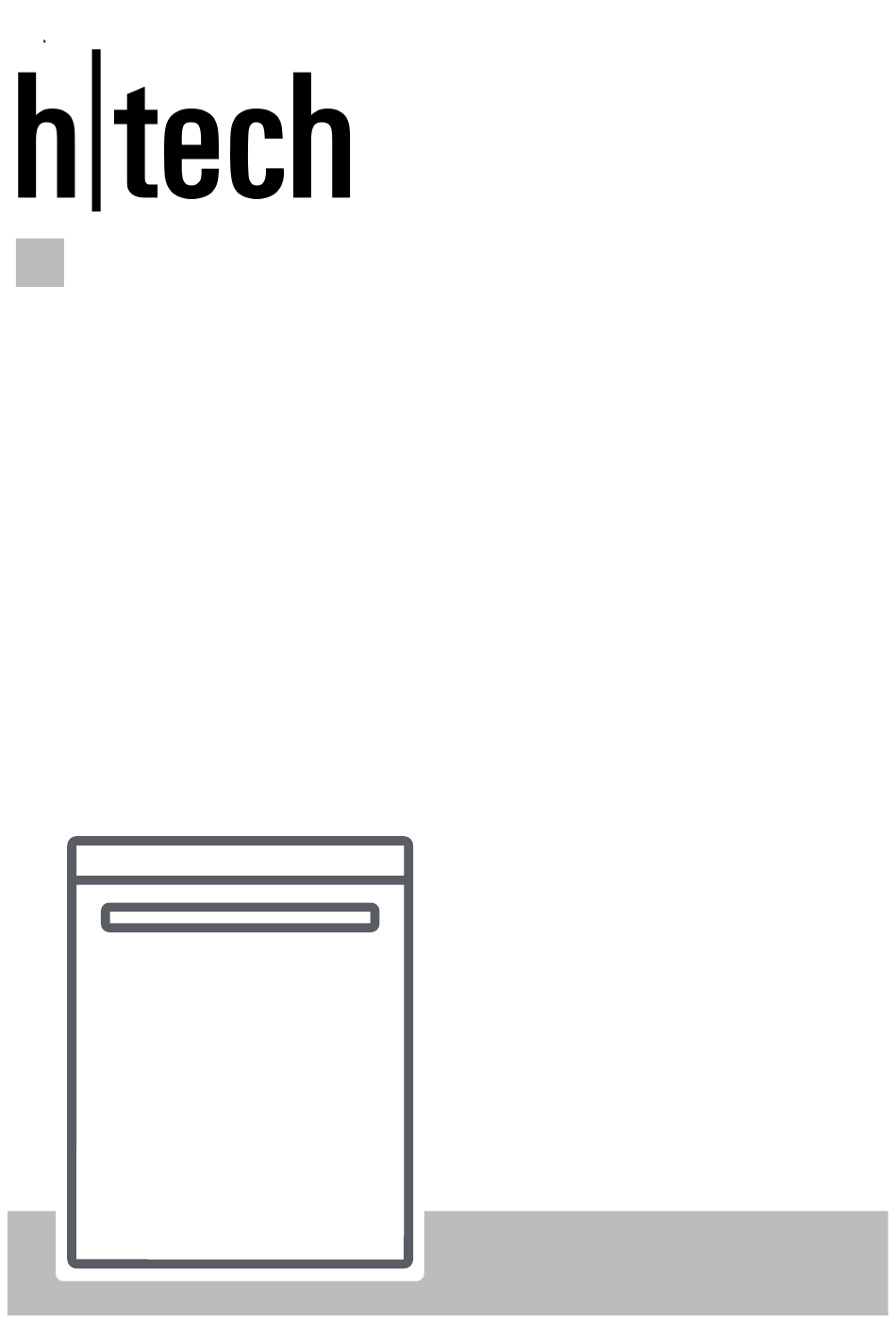

  • Page 1 Dishwasher / User Manual WG5400...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
  • Page 3 CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Electrical Connection ....................7 3.TECHNICAL SPECIFICATIONS ..................8 3.1.
  • Page 4 8.CLEANING AND MAINTENANCE ................. 19 8.1. Filters ........................... 19 8.2. Spray Arms ........................19 8.3. Drain Pump ........................20 9.TROUBLESHOOTING ....................23...
  • Page 5 1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
  • Page 6 2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
  • Page 7 pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
  • Page 10 2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.
  • Page 11 2.4. Electrical connection BUILT-IN DISHWASHER INSTALLATION FOR COLUMN CABINET TYPE WHICH INCLU-DES WARNING: Your machine is set to THE ANTI-SIFONAGE FEATURE. operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a 1. Integrated dishwasher assembly have to transformer of 110/220 V and 3000 W suitable to user manuel and installation guide.
  • Page 12 a o o 820-ll70 EN -8...
  • Page 13 3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 13 place Capacity settings Dimensions (mm) Height 820-870 (mm) Width 598(mm) Depth 570(mm) Net weight 33,100 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Upper basket with racks Total power 2.
  • Page 14 4.3. Fill the salt (IF AVAILABLE) 4. BEFORE USING To add softener salt, open the salt THE APPLIANCE compartment cap by turning it counter clockwise. (1) (2) At first use, fill the 4.1. Preparing your compartment with 1 kg salt and water (3) until dishwasher for first use it is almost overflowing.
  • Page 15 4.4. Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second munite munite NOTE: The factory hardness level setting is “3”. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.
  • Page 16 Do not fill detergent into the detergent setting set too low, whitish stains remains compartment more than required; otherwise on dishes and dishes do not dry and you can see whitish streaks or bluish layers washed clean. If rinse aid dosage setting on glass and dishes and may cause glass set too height, you can see bluish layers on corrosion.
  • Page 17 5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 18 Upper Basket Height Adjustable Rack (peg type) Height adjustment The height adjustable racks enable glasses and cups to be placed on or under the Turn the Rail Stop Clips, at the ends of the racks. The racks can be adjusted to 2 rails, to the sides to open them (as shown in different heights.
  • Page 19 5.2. Alternative basket loads Unsuitable items for dishwashing Lower basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
  • Page 20 6. PROGRAMME TABLE Auto Intensive 65°C Program Super 50’ Prewash Name: (Model depending) (Model depending) Standard program for Suitable for normally soiled normally Suitable to rinse Auto program daily using Suitable for heavily soiled daily dishes that you Type of Soil: for heavily soiled dishes with soiled dishes...
  • Page 21 7. THE CONTROL PANEL time is cancelled. NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections. NOTE: When there is insufficient 1. On/Off button softening salt, the Salt Lack Warning 2.
  • Page 22 7.2 Cancelling a Programme Buzzer Sound Control Follow the steps below to cancel a To change the buzzer sound level, follow programme while in operation. the below steps: 1. Open the door and press Programme (2) and Half Load (3) buttons simultaneously When the door of your machine is for 3 seconds.
  • Page 23 5. To save the selected setting, turn off the machine. In factory setting, Save Power Mode is active. Infoled 2.1 (Model Dependent) LED Indicator State of the Machine The machine is running a Red, continuous program. Red, flashing A program is cancelled. The machine has a fault.
  • Page 24 8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.
  • Page 25 8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.
  • Page 26 9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 27 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 28 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE CODE POSSIBLE FAULT WHAT TO DO Make sure the water inlet tap is open and water is flowing. Water inlet system Separate the inlet hose from the tap and failure clean the filter of the hose. Contact for service if the error continues.
  • Page 29 The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only.
  • Page 30 https://www.hk-appliances.com/de/start.html 52253525 R35...
