USER
MANUAL
Manual to download in PDF format on www.majorcom.fr
COMPACT LINE ARRAY 200W - 8 Ω
5 6 , c h e m i n d e l a Fl am b è r e • 3 1 3 0 0 To u l o u se • FRA N CE • Té l . 3 3 ( 0 ) 5 6 1 3 1 8 6 8 7
Fax 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 • c o m m e r c i al @m aj o r c o m .f r • w w w .m aj o r c o m .f r

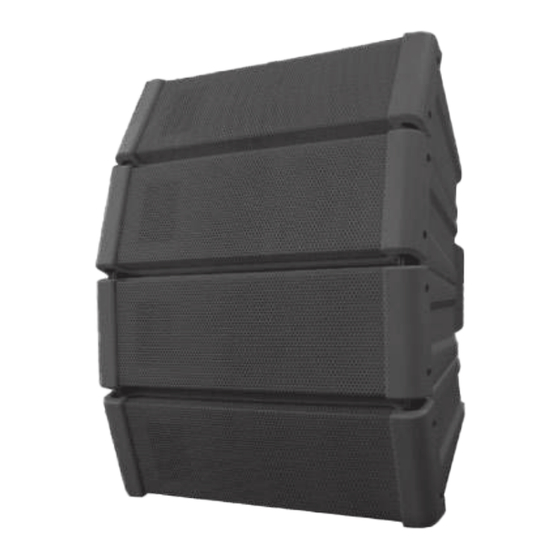

CLA-200
COMPACT LINE ARRAY
200W - 8 Ω
CLA-200
1
User manual
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Majorcom: CLA-200
- Page 1 COMPACT LINE ARRAY 200W - 8 Ω CLA-200 USER MANUAL CLA-200 COMPACT LINE ARRAY 200W - 8 Ω User manual Manual to download in PDF format on www.majorcom.fr 5 6 , c h e m i n d e l a Fl am b è r e • 3 1 3 0 0 To u l o u se • FRA N CE • Té l . 3 3 ( 0 ) 5 6 1 3 1 8 6 8 7...
- Page 2 COMPACT LINE ARRAY 200W - 8 Ω COMPACT LINE ARRAY 200W - 8 Ω CLA-200 CLA-200 1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
- Page 3 The CLA-200 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high VERTICAL background noises.
- Page 4 6. CHANGING THE ORIENTATION OF REAR PLATE The orientation of the speaker system’s rear plate can be changed as follows : Figures show the CLA-200 speaker system with a directivity angle set to 60° mode (factory-preset). FACTORY-PRESET MOUNTING INPUT SECTION...
- Page 5 COMPACT LINE ARRAY 200W - 8 Ω COMPACT LINE ARRAY 200W - 8 Ω CLA-200 CLA-200 8. CHANGING THE SPEAKER’S DIRECTIVITY ANGLE Step 3. • Reposition the 4 bolts to the desired directivity angle, then retighten them securely. • The sound coverage area can also be made asymmetrical by shifting the position of each bolt to different directivity angle.
- Page 6 COMPACT LINE ARRAY 200W - 8 Ω COMPACT LINE ARRAY 200W - 8 Ω CLA-200 CLA-200 9. SUSPENDED INSTALLATION Step 2. • For vertical suspension : Remove the 2 front bar fixing bolts. The speaker systems may be suspended either vertically or horizontally. The 2 suspension brackets are included.
- Page 7 COMPACT LINE ARRAY 200W - 8 Ω COMPACT LINE ARRAY 200W - 8 Ω CLA-200 CLA-200 Step 3. Fix the suspension bracket and the front bar with the bolts removed in step 2. Step 6. • Suspend the speaker system using appropriate commercially obtained wires, chains, or anchor shackles.
- Page 8 The CLA-200CBK is designed for indoor use. The CLA-200CBK is designed to be used exclusively to mount the CLA-200 speaker system to a ceiling. The speaker can be rotated 360° horizontally. It can also be tilted vertically up to 82.5° when suspended horizontally, Note : Anchor bolts, nuts, and washers are not supplied with the speaker system.
- Page 9 The speaker can be rotated 360° horizontally. It can also be tilted vertically up to 82.5° when suspended horizontally, • With the CLA-200’s vertical orientation set to the desired position, fix the vertical angle adjustment bolts (one and depending on the speaker directivity mode, up to 67.5° (for 60° mode) or 75° (for 15°, 30° or 45° mode) when each for left and right) to the speaker bracket.
- Page 10 CLA-200 13. CLA-200FRAME RIGGING FRAME MOUNTING 12.2 FINISHED ASSEMBLY DIAGRAM PRECAUTIONS CLA-200FRAME is used exclusively to suspend the CLA-200 speaker system from the high ceiling. The CLA-200FRAME is designed for indoor use. WHEN SUSPENDED VERTICALLY WHEN SUSPENDED HORIZONTALLY Since the unit is designed for indoor use, do not install it outdoors. If installed outdoors, the aging of parts causes the unit to fall off, resulting in personal injury.
- Page 11 Using the optional CLA-200TR matching transformer allows the speaker system to be connected to a high-impedance A stack of up to 4 x CLA-200 can be suspended vertically. Only 1 x CLA-200 can be suspended horizontally. amplifier. This matching transformer is best for use when the distance between the amplifier and speaker is very long, or when multiple speaker systems are parallel-connected to a single amplifier.
- Page 12 Failure to do this could cause the speaker to fall, potentially resulting in damage and/or personal injury. When the CLA-200TR matching transformer is installed on the CLA-200 speaker, the optional CLA-200CBK mounting bracket cannot be used. MOUNTING POSITION Mount the matching transformer CLA-200TR in the speaker system’s rear mounting plate.
- Page 13 COMPACT LINE ARRAY 200W - 8 Ω COMPACT LINE ARRAY 200W - 8 Ω CLA-200 CLA-200 15. EQUALIZATION USING A DIGITAL SIGNAL PROCESSOR Step 2. • Choose the primary connection wire : red for 100V line and yelow for 70V line.
- Page 14 COMPACT LINE ARRAY 200W - 8 Ω CLA-200 CLA-200 COMPACT LINE ARRAY 200W - 8 Ω User manual User manual 5 6 , c h e m i n d e l a Fl am b è r e • 3 1 3 0 0 To u l o u se • FRA N CE • Té l . 3 3 ( 0 ) 5 6 1 3 1 8 6 8 7 5 6 , c h e m i n d e l a Fl am b è...
