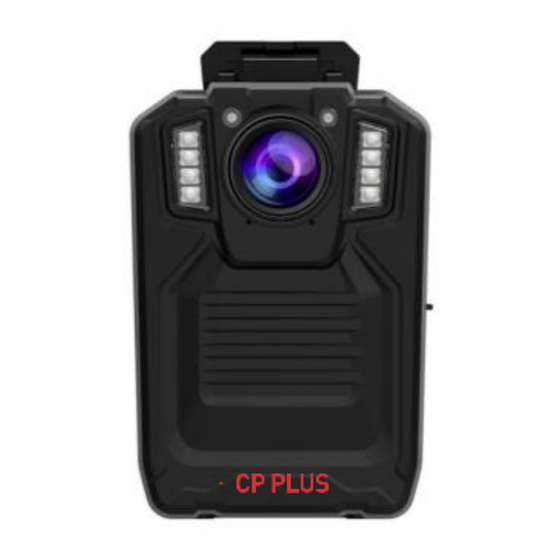

- Page 1 CP-DBP-H20 Body Worn Camera User manual VER 3.0 Introduction...
- Page 2 Sincerely thanks all the user pick out and buy our company's law enforcement recorder, please read this manual carefully before you use it. moreover, please keep this manual properly. In order to query when needed. The right to interpret the relevant content of this manual is owned by our company, If there is no further notice of change.
- Page 3 -1- Machine key description -2- Quick start guide Turn on/off Short press the power button to boot, the machine come into the standby state, long press 3 seconds to turn off in any state. Switch the screen Boot in any state, on / off screen saver function through short press the power button.
- Page 4 Recording Standby mode, short press the recording button, a "Ding" sound with the motor vibration sound, and the yellow light is bright, the screen shows a flashing red dot and shows the recording time, recording is normal, press again to stop the Recording and saving file. Switch resolution In standby mode, long press the recording key to switch the recording resolution FHD (1920x1080 30P) and HD (1280x720 30P)
- Page 5 Short press the video button to boot video when machine is shut down, the screen shows a red flashing dot and the recording time, it is normal. Take pictures Standby mode, short press the camera button, there is a "click" sound and the red light will be bright, take a photo and the screen will switch to the camera interface, you can switch the focus in the camera interface, long press up / Down key to adjust 0-16x focal length.
- Page 6 After taking a picture into the focus state, long press to adjust the focal length in the 1-16 times. Rewind playback In the video playback, short press to 2x, 4x, 8x speed up the playback, press the “OK” to pause / resume. White light In standby mode, short press the white light button to turn on / off the white light, which can be used as lights and fill-light.
- Page 7 star display after the long press, then record the file and it will be marked as a key document. the file name has caudal vertebrae-IMP words when you check on the computer. Menu In the standby mode, press the menu button to enter the system setting interface, it shows as a vertical selection, press the “up”...
- Page 8 In the playback interface, select the video and open, press the Up / Down keys to select the video file you want to play, press “OK” to play, and then press again to pause / resume. The video file format is .MOV. Picture playback Select the picture and open in the playback interface, , press the up / down button to select the picture file you want to view, press the “OK”...
- Page 9 One-key to play back In standby mode, short press one-key to play back the last recorded file after recording the file. Reset function When the machine crashes or failed, press the reset button to reset the machine. Data output / charge interface Connect to the computer through the data cable, you can output video files or charging with the charger.
- Page 10 Movie Quality Video quality is "high, middle, low" three options. Photo Size The photo size has five options for "30m, 14m, 12M, 8m, 5m", representing the pixels from the 5 million -3000, the photo size refers to the photo taken by the pixel, the default photo size is "14m".
- Page 11 Photo Rate Triple shot switch has "off on" two options. Open the triple shot switch, press the camera button for shooting three photos. The default triple shot switch is “off". Light Change Screen brightness has “high, middle, low” three options. Screen brightness refers to LCD screen’s high and dark.
- Page 12 machine prompt tone and key tone. Default volume is "high". Sound Record Sound recording has two options: "on and off", on / off sound recording. The default sound record is "open". Movie Clip Movie clip has four options: "5 minutes, 10 minutes, 15 minutes, and 30 minutes". After setting, the video recording for a few minutes is automatically saved as a file, the default video segment is "15 minutes".
- Page 13 Delay Record The delay record has "off, 10 seconds, 20 seconds, 30 seconds, 1 minutes, 5 minutes " six options, after the delay record is set, the number of seconds after shooting the video button can also be recorded in the video. The default delay record is "off". Infrared Switch Infrared has “manual, auto”...
- Page 14 Power Off Automatic shutdown has "never, 30 seconds, 1 minutes, 3 minutes, 5 minutes, 10 minutes." six options, Automatic shutdown means that the machine is turned on automatically without any operation. The default auto shut off is never. Car Mode Car mode has ”on, off”...
- Page 15 Loop Video There are two options for loop video is "open and close”. In the process of video recording, the memory is full, cannot save the recording, open loop video setting, at this point the system will automatically delete the previous video, continue recording. The default loop video is "off".
- Page 16 Clock Setting When you select the clock settings option. Press confirm key to enter clock setting interface, press up/down key to adjust number size, press confirm key to confirm setting. Change PWD Select the "change password" option, press confirm key to enter change password interface, The interface has the old password and the new password, default password is 000000.press up or down key to, respectively, Press "up and down"...
- Page 17 PID Setting Select "PID" option, press "confirm" key to enter the PID setup interface, the default is "00000-000000", the first front 5 digits represent the number of devices, behind the 6 digit represents the user number. According to the "up down" key can be modified. Press OK to confirm settings.
- Page 18 The language has two options: "Chinese, English". The default language is "English". -4- Data transmission (no drive device) 1. connecting the machine and compute through the use of USB data cable in the machine shutdown state, the machine boot into the password input status, enter the set password, press “OK”...
- Page 19 3. unplug the USB after data transmission, the machine will automatically shut down. Machine formatting method: After the machine is connected to the computer, open "My Computer", right click on the "removable disk", select "format (A) ..." "FAT32" format for memory 16GB / 32GB , "exFAT"...
- Page 20 Computer Data line Replace data line identification problem recorder Thank You for Choosing CPPLUS...
