- Page 1 USER MANUAL GERBUIKERSHANDLEIDING MANUELLE D’USAGE BENUTZERANLEITUNG MANUAL DEL USUARIO UNIVERSAL TIMER MODULE WITH USB INTERFACE UNIVERSELE TIMERMODULE MET USB-INTERFACE MODULE MINUTEUR UNIVERSEL AVEC INTERFACE USB UNIVERSAL-TIMER MIT USB- SCHNITTSTELLE TEMPORIZADOR UNIVERSAL CON INTERFAZ USB WMT206 whadda.com...
- Page 2 • Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

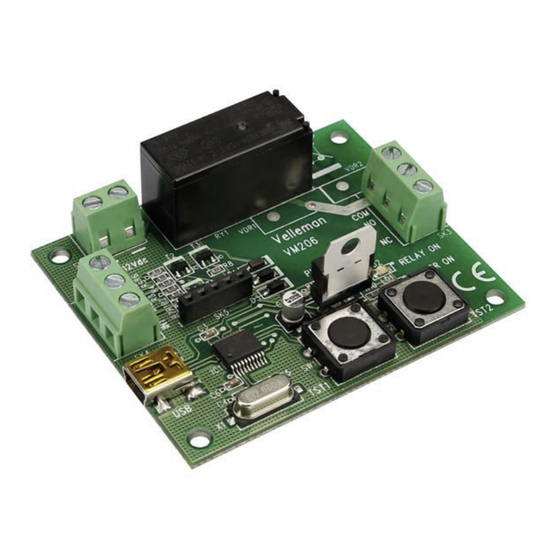

- Page 3 Product overview No timer is universal, except this one! Two reasons why this timer is truly universal: 1. The timer comes with a wide variety of operating modes. 2. If the built-in modes or delays don’t suit your application, you can simply tailor them according to your needs using the supplied PC software.
- Page 4 First, you will need to plug your VM206 into an available USB port on your computer so Windows can detect your new device. Then download the latest software version for the VM206 on www.velleman.eu via these simple steps: 1. go to: http://www.vellemanprojects.eu/support/downloads/?code=VM206 2.
- Page 5 Now you can set up your first timing program for the VM206: 1. select any of the options from 1 to 9 2. enter the time or use the default 2sec and 1sec 3. now click the ‘Send’ button The VM206 is now programmed! You can check the operation by pressing the TST1 (Start) button.
- Page 6 Relay output The relay contacts are connected to the SK3 connector: • COM: Common • NO: Normally Open • NC: Normally Closed Space is provided on the board for a transient suppressor (option) to reduce contact wear. Mount VDR1 for suppression of the NC contact. Mount VDR2 for suppression of the NO contact. Description of the timer operation 1: On delay –...
- Page 7 3: One shot - a single pulse of length t2, after delay t1 Timing begins on the leading edge of the Start signal. When the first set time (t1) has elapsed, the relay contacts transfer to the ON state. The contacts remain in the ON state until the second set time (t2) has elapsed or the Reset signal is applied or power is interrupted.
- Page 8 START RESET OUTPUT 6: Toggle mode When a Start signal is supplied, the relay contacts transfer immediately to the ON state. When the Start signal turns ON again, the relay contacts transfer to the OFF state and on the next Start signal to ON state etc.
- Page 9 8: Staircase timer When a Start signal is supplied, the relay contacts transfer immediately to the ON state and the set time (t1) begins. When the set time (t1) has elapsed, the relay contacts transfer to the OFF state. The timer is reactivated by applying the Start signal before the set time (t1) has elapsed. START RESET OUTPUT...
- Page 10 START RESET OUTPUT Relay state Time fields Timing event list...
- Page 11 Timing sequence user interface Options: • add timing / insert timing • delete timing • copy timing • repeat • sustain the first state until Start signal is OFF • auto start & repeat By selecting the option ‘Sustain ...’, the relay state of the first timing event is sustained as long as the Start signal is ON or the Start button is kept pressed down.
- Page 12 Modifications and typographical errors reserved - © Velleman Group nv. HWPI471 – Velleman Group NV, Legen Heirweg 33 - 9890 Gavere...
