ChiliTec CT PW-50 User Manual

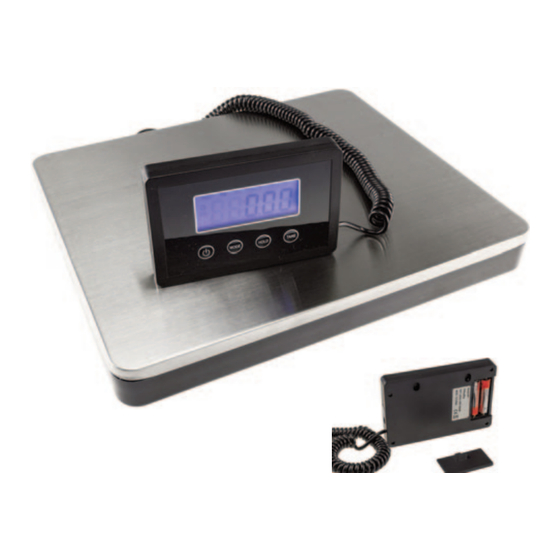

Parcel scale / shipping scale "CT PW-50"
0.1-50kg, ±10g, 30x25cm stainless steel plate
Product description:
This high-quality multi-range scale is ideal for storage and
shipping: High-quality scale with a sturdy stainless steel plate
300x255mm and a maximum load capacity of 50kg. Universally
applicable as a parcel scale, luggage scale, suitcase scale,
warehouse scale and in many other areas such as kitchen,
warehouse, logistics.
Technical details:
• Separate illuminated LCD display with 30-90cm long
flexible spiral cable
• 12x8x1.5cm display unit for wall mounting
• 0.1-50kg: 10g display accuracy
• Durable 255x300mm stainless steel weighing surface
• Operation via 2x Micro/AAA batteries or plug-in
power supply (optional 5V=(DC) 1000mA)
• Units of measurement: kg (kilograms), lb (pounds), lb:oz (pounds: ounces)
Operating instructions
A short press on the ON/OFF button activates the scale, a long press on the button deactivates it. After pressing it, it takes
2-4 seconds for the device to start up, the display automatically sets itself to 0.00. You can use the Mode button to "switch
through" the weighing units. The units of measurement are shown on the display. You can choose from kg (kilograms), lb
(pounds) and lb:oz (pounds/ounces). You can reset to zero at any time using the Tare button. To increase the accuracy of the
measurement, we recommend switching the scale on while it is lying horizontally on a hard surface, e.g. on a table.
Safety instructions:
The scale is not waterproof. If the scale is not used for a long period of time, the batteries must be removed. Do not
shake the scale. Automatic switch-off after approx. 4 minutes of non-use. The scale has an overload indicator (0-Ld in
the display) and a battery capacity detection system. If "Lo" is displayed, the batteries (2x AAA) should be replaced
immediately.
Safety instructions and important information!
To ensure safety at all times and to use the full performance range of the device, please read the
safety instructions carefully and thoroughly!
The product must not be modified technically or mechanically, otherwise the operating license and conformity will
expire with immediate effect! The type plate / print must not be removed under any circumstances! Check the
product for damage before each use. If damage is visible on the product, it must be checked, repaired or replaced
by a specialist company and disposed of in accordance with the applicable guidelines (footer page 1). Under no
circumstances must a damaged or defective product be used! Please keep all packaging material and accessories,
especially small parts such as screws and foil, away from children and animals. Danger of suffocation! The
manufacturer accepts no liability for damage to property or personal injury if the instructions are not followed or if
the product is used improperly, for purposes other than those intended, or if modifications are made to the
product. This product must never be operated, kept, put down or stored within reach of children or animals. Keep
these instructions in a safe place. If this product is passed on, the instructions and packaging must be passed on.
Thank you! We reserve the right to make printing errors or changes to the packaging, the product or the
instructions.
Electronic products marked with the crossed-out waste bin do not belong in household waste! You can return these products free of charge to
municipal collection points. Ask your local authority, the responsible town hall or a local or municipal waste disposal company. Thank you. Old
batteries must not be disposed of in household waste. Consumers are legally obliged to take batteries to a suitable collection point at a retailer or
municipality. Old batteries may contain pollutants or heavy metals that can harm the environment and health. The symbols under the label (waste
bin) stand for: Pb: battery contains lead, Cd: battery contains cadmium Hg: battery contains mercury. The environment and ChiliTec say thank you.
Reproduction only with permission from
ChiliTec GmbH, Bäckerberg 12, 38165 Lehre
District Court Braunschweig, HRB 201747
www.chilitec.de / technik@chilitec.de
User manual
Status: 08/2024 - Version 1.00
EAR (WEEE): DE25841852
LUCID Packaging: DE5562476395648
GRS (UBA Register) No.: 21003466
Page 1
Item No. 23913
