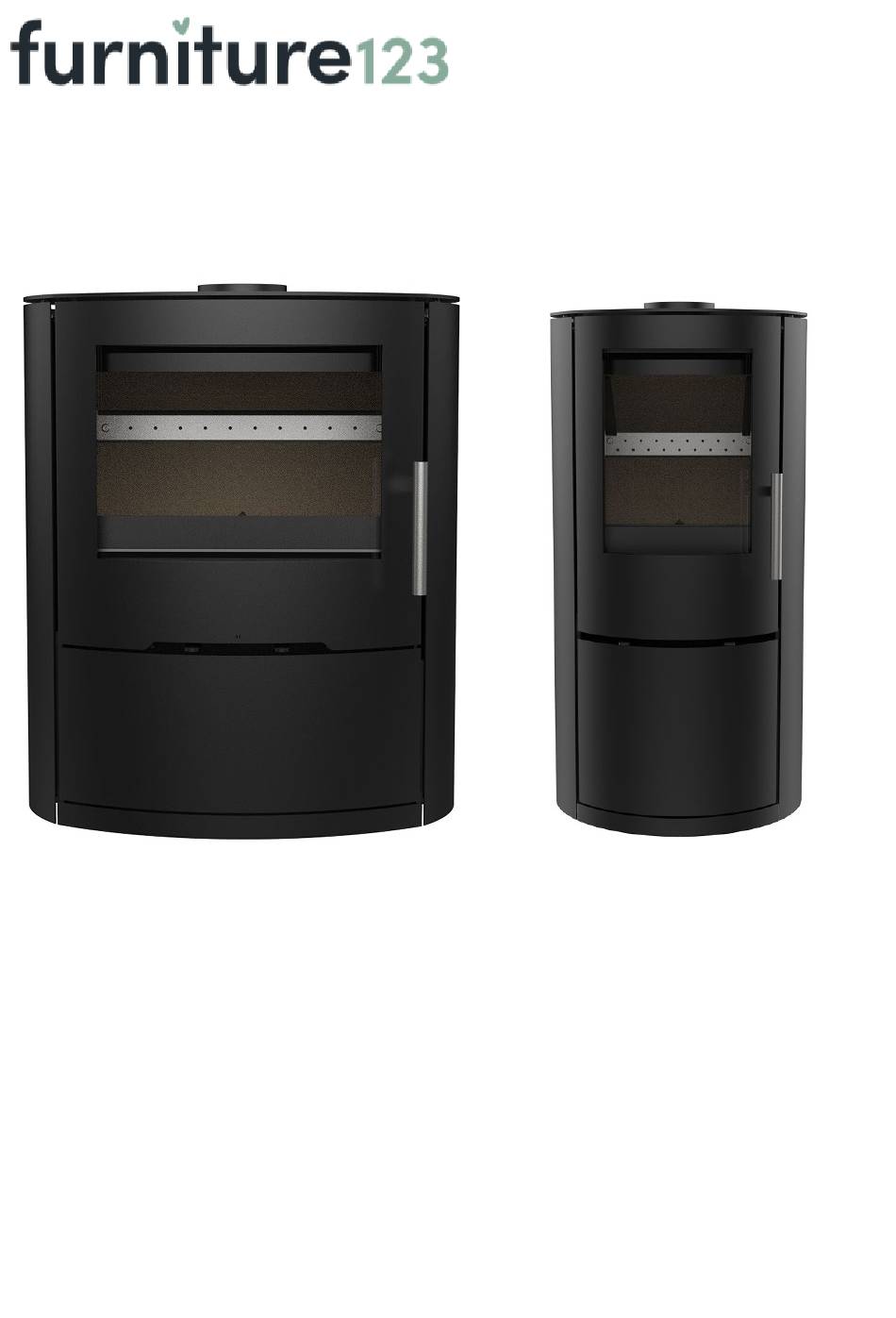

INSTALLATION AND USER

MANUAL

MULTI-FUEL STOVE

AGL070 - Small 5.0KW Multifuel Black Stove

AGL071 -Small 6.9KW Multifuel Black Stove

Thank you for choosing this AmberGlo multi-fuel stove.

Please read this guide, which aims to improve your understanding and appreciation

of your new heater, and please retain it for future reference.

IMPORTANT: This product is not suitable for primary heating purposes.

V1 20240621

Need help?

Do you have a question about the AGL070 and is the answer not in the manual?

Questions and answers

Summary of Contents for furniture123 AGL070

Page 1 INSTALLATION AND USER MANUAL MULTI-FUEL STOVE AGL070 - Small 5.0KW Multifuel Black Stove AGL071 -Small 6.9KW Multifuel Black Stove Thank you for choosing this AmberGlo multi-fuel stove. Please read this guide, which aims to improve your understanding and appreciation of your new heater, and please retain it for future reference.
Page 2 CONTENTS SAFETY INFORMATION PRODUCT OVERVIEW DIMENSIONS INSTALLATION PLACEMENT VENTILATION CHIMNEY HEARTH CONSTRUCTION OPERATION LIGHTING THE STOVE CONTROLLING THE STOVE RECOMMENDED FUELS CLEANING AND MAINTENANCE TROUBLESHOOTING PRODUCT FICHE SUPPORT TECHNICAL DRAWINGS...
Page 3 Both stoves are factory-fitted with a permanent stop to prevent full closure of the combustion air controllers. The AGL070 is set to allow a minimum gap of 2mm, and the AGL071 is set to allow a minimum gap of 6mm. These permanent stops must not be adjusted or removed.
Page 4 INSTALLATION • Read this manual before installation and use. If the appliance is passed on, retain it for future reference or pass it on to a third party. • Failure to follow the instructions in this manual could lead to damage or injury to persons and property.
Page 5 • WARNING: The combustion chamber and ashpit cover shall be kept closed except during ignition, refuelling and the removal of residue material to prevent fume spillage unless the appliance is intended to be operated with an open combustion chamber. • WARNING: Parts of the appliance, especially the external surfaces, will be hot to the touch when operating.
Page 7 DIMENSIONS AGL070 Height (mm) Width (mm) Depth (mm) Weight (kg) Collar (mm) Max Log Length (mm) 492.5 491.1 98.2...
Page 8 AGL071 Height (mm) Width (mm) Depth (mm) Weight (kg) Collar (mm) Max Log Length (mm) 630.69 478.91 108.1 INSTALLATION PLACEMENT The appliance must be located at least a certain distance from its surroundings to prevent damage to nearby products and furnishings. You will also want to leave adequate space for maintenance and servicing.
Page 9 Front (mm) Side (mm) Back (mm) Hearth Temperature °C AGL070 >100 AGL071 >100 VENTILATION Your stove requires ventilation to supply it with air for combustion. Ventilation is also necessary to ensure the proper operation of flues and chimneys to ensure that the products of combustion are safely dispersed to the outside air.
Page 10 • Minimum diameter of 125mm and maximum diameter of 200mm. • Independent from a shared flue system of any type. • Larger or equal in diameter than the appliance flue collar size. • If using a single-wall flue, please ensure there is a clearance of at least three times the diameter of the flue pipe from any combustible material (e.g., 150mm pipe = 450mm minimum clearance to wooden beam).
Page 11 COMMISSIONING AND HANDOVER You should leave an appropriate period of time for fire cement and mortar to dry out upon completion of the installation. To ensure the smoke and fumes are taken from the stove up the chimney and emitted safely into the atmosphere, a small fire should be lit first. Do not run the stove at full output for at least 24 hours.
Page 12 The primary air intake can be adjusted to control the fire in the combustion chamber or closed when using the secondary for control. AGL070 has a minimum opening of 5mm, and AGL071 has a minimum opening of 10mm.
Page 13 BURNING WOOD The refuelling intervals at nominal heat output will be approximately every 1.5 hours. You may load wood higher in the stove than solid mineral fuel, but wood or logs must not touch the baffle plate. Wood burns most efficiently when the primary air controls are closed, and the secondary control is partially open.
Page 14 BURNING COAL • The Air-wash/secondary air lever (the control to the right) should be left partially open to allow the air-wash system to keep the glass clean. • Primary air control lever (The control to the left) - When burning coal, the stove should be mainly controlled using this lever.
Page 15 The recommended maximum dimensions of wood logs are as specified below: Model Max Load (kg) Max Log Length (mm) AGL070 AGL071 27.5 CHIMNEY FIRES Chimney fires are preventable, and the guidance within this manual should be followed to prevent them.
Page 16 SIGNS OF A CHIMNEY FIRE • A loud roaring noise as the air is drawn into the appliance. • Sparks and flames shooting from the top of the chimney. • Glowing, shimmering, or vibrating at the point the chimney connects to the appliance. •...
Page 17 DAMPERS/ CONTROLS LEFT OPEN Operation with the air controls or appliance dampers open can cause excess smoke. The appliance must not be operated with air controls, appliance dampers or door left open except as directed in the instructions. CLEANING AND MAINTENANCE A competent engineer must maintain the appliance regularly to ensure that it continues to operate safely and efficiently.
Page 18 FLUE / CHIMNEY CLEANING Please ensure that the Flue is swept as instructed. Blockages or build-ups within the flu can cause loss of performance, damage to the product, and harm to the surroundings and users. Depending on the fuel source used, it’s recommended that the flue is cleaned: Anthracite –...
Page 19 PRODUCT FICHE Part of the Buy It Direct Group AGL071 AGL070 Model Energy Efficiency Class Flue Position Top or Rear Direct External Air Supply Material Steel Body, Cast Iron Door Dimensions (WxDxH) (cm) 47.2*47.0*91.2 63.1*47.4*74.2 Weight 98.2 Kg 108.1 Kg...
Page 20 Model Identifiers: AGL070 AGL071 Indirect heating functionality Direct heat output 5.0 kW 6.9 kW Indirect heat output Space heating emissions at Space heating emissions at nominal heat output nominal heat output Other η s η s Preferred Suitable Fuel Fuel:...
Page 21 Buy It Direct, The Black Church, St Mary’s Place, Dublin 7, Ireland Contact Details Buy It Direct, Unit 2A, Trident Business Park, Neptune Way, Leeds Road, Huddersfield, HD2 1UA. SUPPORT The main body of your stove is guaranteed for 3 Years. Incorrect use or installation not carried out by a specialised installer will void the guarantee.
Page 22 AGL070...
Page 23 AGL071...
