Operations Manual
PDT-RCK-DIN-190-B
Revision 1.0 – March 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the PDT-RCK-DIN-190-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parallax PDT-RCK-DIN-190-B

  • Page 1 Operations Manual PDT-RCK-DIN-190-B Revision 1.0 – March 2024...
  • Page 2 Table of Contents Revision History .............................2 Abbreviations ..............................3 Safety Information ............................4 Packing List ..............................4 Product Overview ............................5 Installation Procedures ..........................6 Physical Dimensions ............................7 Hardware Specification ..........................7...
  • Page 3 1. Revision History Date Comments Checked Date 26/03/2024 Initial Release 26/03/2024...
  • Page 4 2. Abbreviations Abbreviation Description Access Point Copper Clad Aluminium Direct Current Energy Efficient Ethernet IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power over Ethernet Power Supply Unit...
  • Page 5 Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party.

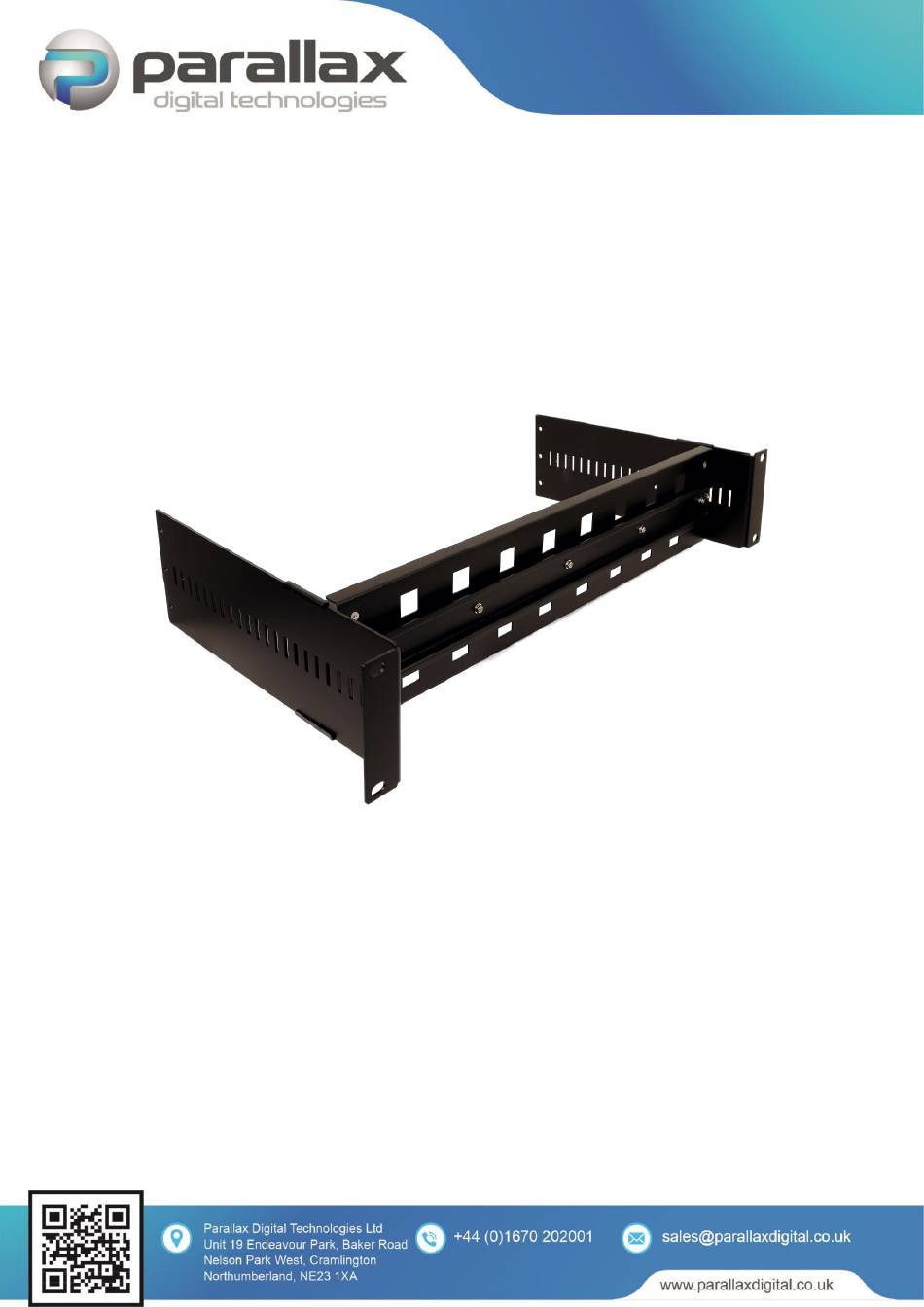

  • Page 6 5. Product Overview The PDT-RCK-DIN-190-B and PDT-RCK-DIN-190-S are DIN Rail Adapter Brackets which allow standard DIN Rail mounted equipment to be installed securely in a 19” Rack Cabinet or Enclosure. This allows for DIN Rail Power Supplies, Network Switches, Routers, Media Converters, and other types of equipment to be mounted in a central rack.
  • Page 7 6. Installation Procedures 1. Using a screwdriver, fasten the Metal Brackets to the Rackmount DIN Rail Chassis, on the left and right side, using the M3x6 Machine Screws 2. Slide the Rackmount Chassis Holders into the guide rails on both sides of the Rackmount DIN Rail Chassis, and adjust the position of the Chassis Holders to suit your application 3.
  • Page 8 7. Physical Dimensions 8. Hardware Specification Material Aluminium Max Load Capacity 8kgs Fixing Depth 2.5 – 20.5cms For all technical enquiries regarding this product, please contact our technical support team using the following email address: support@parallaxdigital.co.uk...
