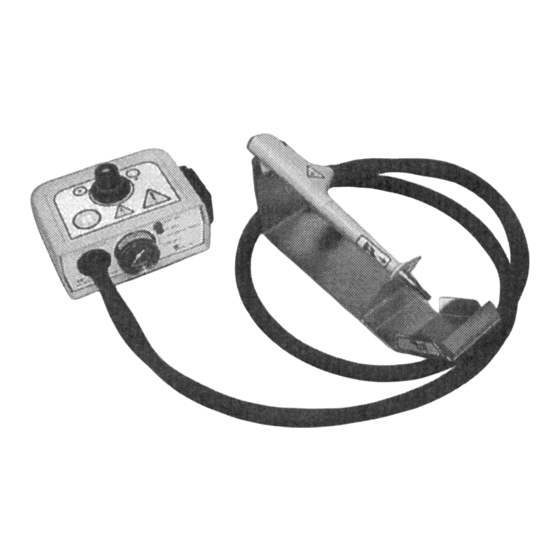

- Page 1 AA-400 Mark IV Super Heater CE 240 Vac Operation Manual Document number : TUS-44-3300 Revision : A3 Revision date : 03OCT2024...
- Page 2 PRODUCT INFORMATION +1 800 522 6752 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
- Page 3 TUS-44-3300 SECTION 1 GENERAL DESCRIPTION Heat Gun The CE 240-Vac AA-400 Mark IV The Solder Sleeve Reflector tip is used The needle-point tip is used for micro- super heater is a compressed-air for installing Solder Sleeve shield miniature connectors. This tip comes heating tool—...
- Page 4 TUS-44-3300 SAFETY (continued) Safety Precautions and The AA-400 Mark IV equipment must Emergency Shutoff General Warnings be connected to an earthed power The AA-400 Mark IV is not equipped • The heat gun must be placed on its supply. with stand when not in use.
- Page 5 The AA-400 Mak IV must be correctly Contact for assistance TE Connectivity user to install the appropriate plug that earthed. Failure to do so could cause meets local and national requirements. or missing parts if necessary.
- Page 6 TUS-44-3300 SECTION 4 OPERATION CAUTION WARNING Step 7 Never leave the 240-Vac AA-400 Mark If it is necessary to use a variable To turn the AA-400 Mark IV off, follow IV super heater running unattended. transformer to correct for a low-voltage Step 5 of the Installation Procedure.
- Page 7 TUS-44-3300 SECTION 5 ACCESSORIES AND REPLACEMENT PARTS Accessories and Replacement Parts Part Number Solder Sleeve Reflector 979646 Needle-Point Tip 979647 Boot and Tubing Tip 979691 Mini Solder Sleeve Reflector 979663 Low-Flow-Point Tip 979672 Stand 979649 Input Air Filter 979673 SECTION 6 TECHNICAL SPECIFICATIONS Power supply 240 Vac, 2A, 50–60 Hz Power consumption...
- Page 8 TE Connectivity’s only obligations are those in the TE Connectivity Standard Terms and Conditions of Sale for this product, and in no case will TE Connectivity or its distributors be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of the product.
