Summary of Contents for Electrolux EW 1288 W

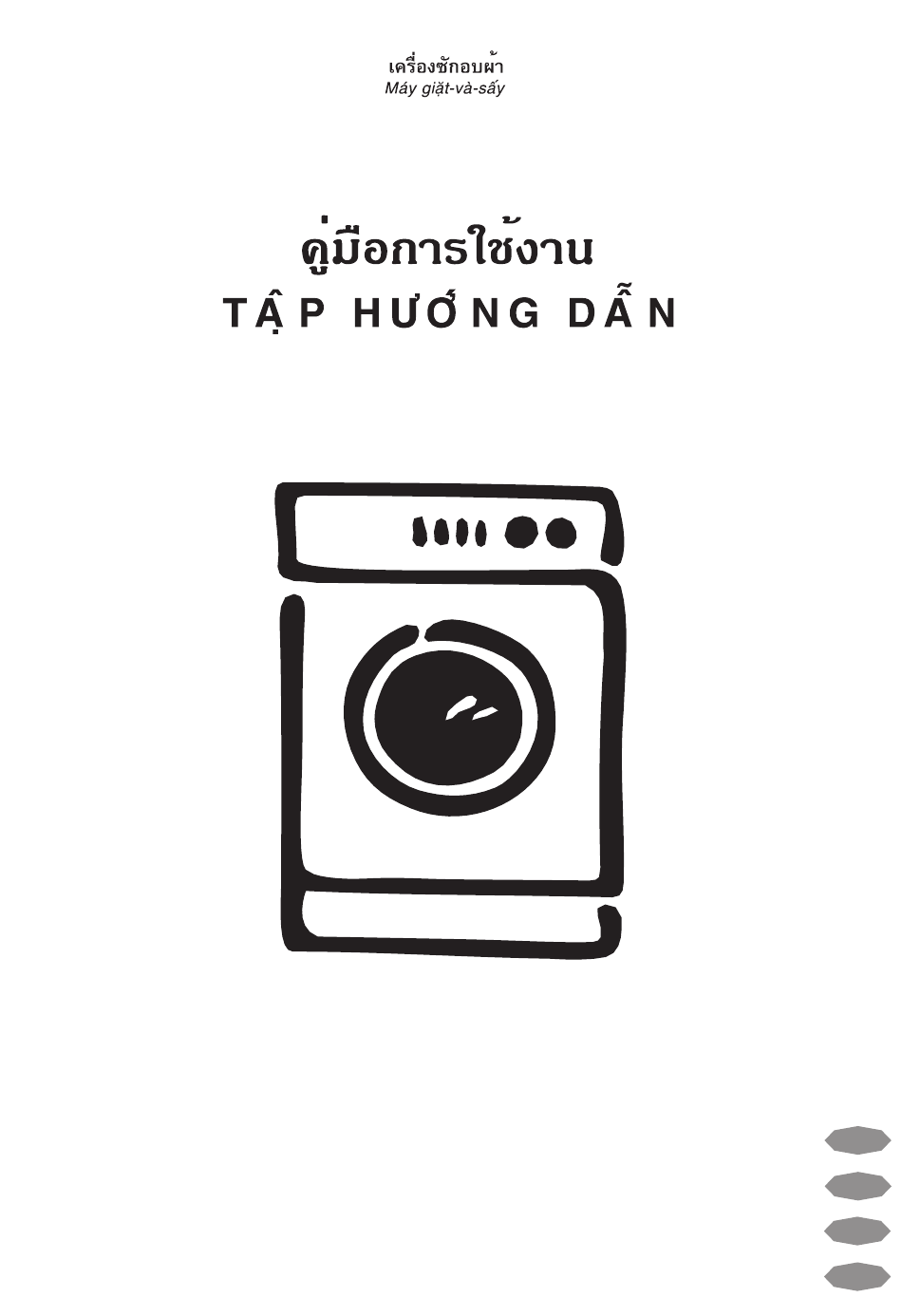

- Page 1 W A S H E R - D R Y E R M E S I N C U C I - P E N G E R I N G INSTRUCTION BOOKLET BUKU PETUNJUK EW 1288 W VI ET 124 971 910...
- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
- Page 3 Contents Warnings Operating sequence 19-21 Washing programmes Disposal Special programmes Timed dryings Tips for environmental protection 5 International wash code symbols Technical specifications Maintenance Bodywork Installation Detergent dispenser drawer Unpacking Drain filter Positioning Water inlet filter Water inlet Emergency emptying out Water drainage Frost precautions Electrical connection...
- Page 4 Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Use only the recommended quantities of fabric softener. An excessive amount could damage the • All internal packing must be removed before using laundry.
- Page 5 Child safety • Keep all detergents in a safe place out of children’s reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum.
- Page 6 Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 58 cm WASHING DRYING MAXIMUM LOAD Cotton 6.5 kg Synthetics Delicates Woollens SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE Minimum...
- Page 7 Installation Unpacking 7. Pull out the three plastic spacers from the holes into which the bolts were fitted. 8. Plug the open holes with the plugs which you will All transit bolts and packing must be removed find in the plastic envelope containing the before using the appliance.
- Page 8 The inlet hose must not be lengthened. If it is too Electrical connection short and you do not wish to move the tap, you will This machine is designed to operate on a 220-230 V, have to purchase a new, longer hose specially single-phase, 50 Hz supply.
- Page 9 Your new washer-dryer This new machine, which is fitted with the Direct Spray system, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed.
- Page 10 Control panel 1200 EW 1288 W 12 3 5 6 7 8 9 10 11 13 14 1 Programme chart Position E corresponds to the ENERGY SAVING programme and position to “cold wash”. A programme chart in English is in the interior part of At the end of the programme the selector dial the detergent dispenser drawer.
- Page 11 8 Extra rinse button Spin speed Can be used with all programmes except the wool The following speeds are available for the different programme. The machine performs 4 rinses instead fabrics: of 3. • Cotton, linen: This option is recommended for people who are 500/700/900 max 1200 r.p.m.
- Page 12 When the programme has finished a flashing zero Altering the delayed start is displayed. If you have selected the Anti-crease option , the • Depress START/PAUSE button zero will not flash. • Depress DELAY START button until the required time is displayed. Drying time If you wish to cancel the delay, depress the button The selected drying time is displayed in minutes or...
- Page 13 Alarm codes Draining of water In the event of operating problems, some alarm By depressing the Start/Pause button codes can be displayed, for example E20 (see • The water of programme “A” (Soak) is emptied out paragraph “Something not working”). •...
- Page 14 End of programme Programme information When the door locked light has gone out, the door Wool can be opened. The light (END) on the programme progress display illuminates. Washing programme for machine washable wool as A flashing zero appears on the display. well as for hand washable woollens and delicate Switch the machine off and remove the laundry.
- Page 15 F = Spin Separate spin at the maximum speed for hand washed garments. You can reduce the speed by means of button to adapt it to the fabrics to be spun. G = Miniprogramme This is a complete programme that can be combined with the following options: spin speed reduction, anti-crease and delayed start.
- Page 16 Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens.
- Page 17 Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly.
- Page 18 Drying symbols on garment labels Drying hints Always look at the garment label to check whether As a dryer, the machine works on the condensation garments can be machine dried. principle. The following symbols refer to drying: Therefore, the water tap must be open and the drain hose must drain water into a sink or into Machine drying is usually possible the drain pipe, even during the drying cycle.
- Page 19 4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Washing only Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub.
- Page 20 7. Select the required options 9. Start the programme The light corresponding to the depressed button To start the selected programme, press the illuminates. START/PAUSE button; the corresponding light stops flashing. The pilot light corresponding to the wash phase which is running is on. The door light comes on to indicate that the door is locked.
- Page 21 Drying only Automatic washing and drying (NON-STOP programme) Warning! Do not exceed the maximum laundry loads: Warning! For NON-STOP programmes, it is also kg for linen and cottons essential not to exceed the maximum load sizes of 3 kg for cotton and 2 kg for synthetics. kg for synthetics.
- Page 22 Programme chart Washing programmes Consumption* Type of Programme Additional Max. Section Temp. fabric description functions load Energy Water Time min. light blue 95° White Wash at 95°C 6.5 kg cotton 3 rinses Normal spin light blue White cotton Wash at 67°C 6.5 kg economy 3 rinses...
- Page 23 Programme chart Special programmes Consumption* Selector Programme Additional Max. Section dial Programme description functions load Energy Water Time position min. blue Soak Soak at 30°C 6.5 kg stop with water in tub. To drain, depress START/PAUSE button The machine automatically empties itself after 18 hours.
- Page 24 Programme table Timed drying Degree of Drying time Type of fabric Max. load Spin speed drying mins 1200 3 kg Extra dry Cotton and linen Ideal for (bathrobes, bath towelling towels, etc.) 1200 1.5 kg materials 1200 3 kg Cotton and linen (towels, T-shirts, bathrobes) Store dry...
- Page 25 International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not...
- Page 26 Maintenance 1. Bodywork 3. Drain filter Clean the outside of the machine with warm water The drain filter collects threads and small objects and a detergent used to handwash dishes. Rinse inadvertently left in the laundry. Check regularly that with clean water and dry with a soft cloth. the filter is clean.
- Page 27 5. Emergency emptying out If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •...
- Page 28 Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10 : problem with the water supply - E20 : problem with water draining - E40 : door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme.
- Page 29 Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
