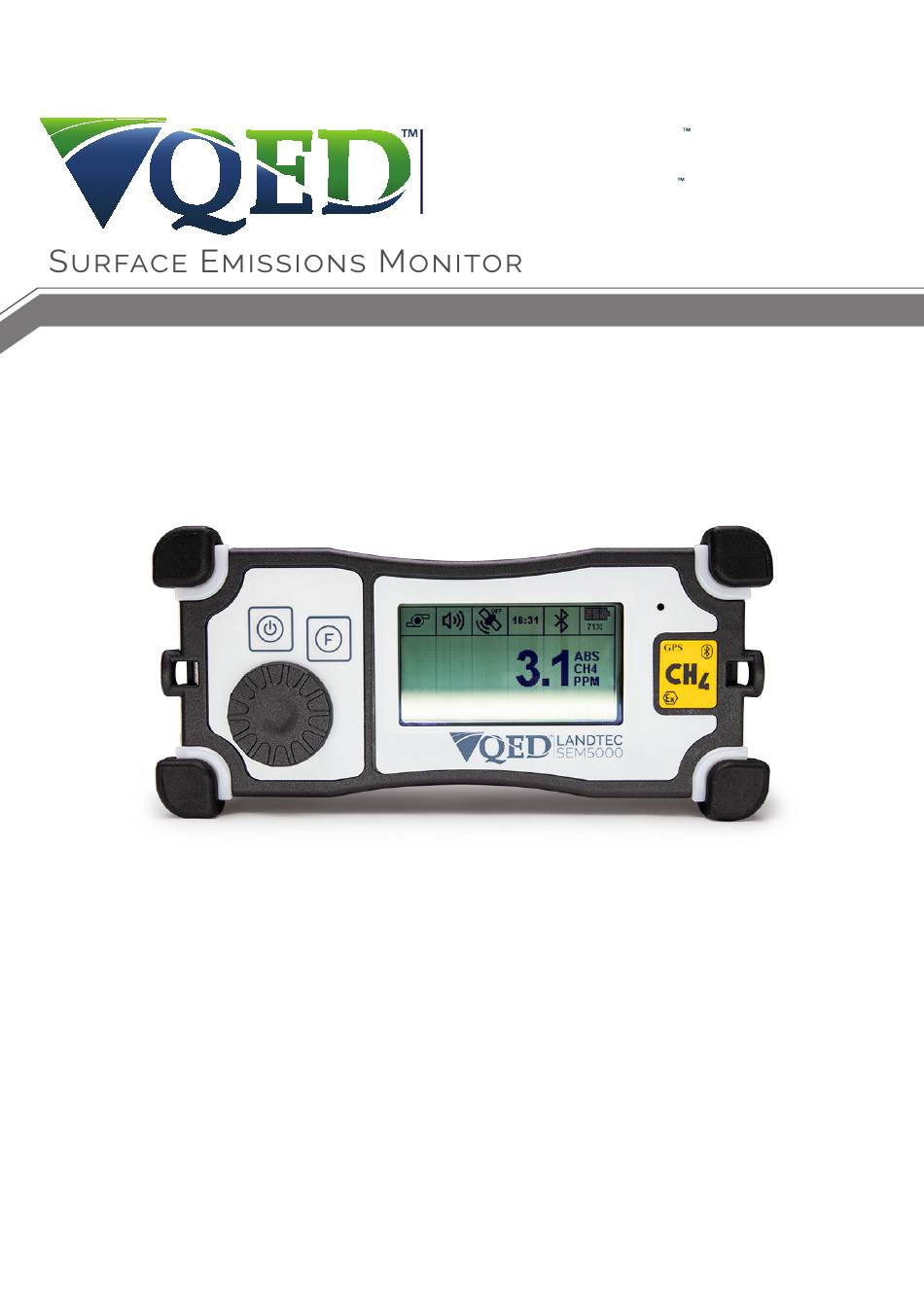

- Page 1 LANDTEC SEM5000 OPERATING MANUAL w w w . Q E D E N V . c o m...
-
Page 2: Table Of Contents
Up-wind Test ............................20 Down-wind test ..........................21 Functions ............................22 Data Save Options ........................... 22 Delete Memory ..........................23 Concentration Management ......................23 Alarms ............................. 24 Backlight and Contrast ........................24 www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 3 APPENDIX B – BLUETOOTH MODULE COMPLIANCE ................45 United States ............................45 Canada ..............................46 Europe ..............................46 APPENDIX C –EU DECLARATION OF CONFORMITY ................47 APPENDIX D - PRODUCTION/PRODUCT QUALITY ASSURANCE NOTIFICATION........48 www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 4: Atex Warnings
ATEX Accessories Use only the following accessories with the SEM5000 instrument: Rechargeable battery pack lithium ion (PBLO.NNNN.YY 3,7V 4000mAh) Code: 205014 Code: 100189 Battery charger (CCLO.NNNNN.YY) Code: 423007 Power supply (Um<15 volts) www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 5: General Description
Operating Manual General Description The SEM5000 is a digital gas detection instrument from QED Environmental Systems, Inc. The intended use of the SEM5000 is the measurement of low concentrations of methane in the field (Landfill surface emissions monitoring, leakage surveys of natural gas networks, control pinpointing outside buildings, quantifying methane fluxes, and laboratory applications for gas analysis). -
Page 6: User Interface
Page 6 of 48 SEM5000 Surface Emissions Monitor Operating Manual User Interface Overview Description ON/OFF button + Backlight Function button Buzzer Selector Dial and Button LED Alarm Lights and Impact Bumpers Strap Connectors www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 7: Connections
Bluetooth (also shows P C when connected) Battery status Concentration Level of Sample and reading type (ABS)/gas measured (CH4)/scale of Measurement (PPM or %VOL) Test Status Indicator/Gas Threshold Reading Type (ABS)/Gas Measured (CH4)/Scale of Measurement (PPM or %VOL) www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 8: Navigation
Clear all saved data LCD Contrast Adjust display contrast Manual Save Manually save readings during scan, (disables auto save) Save to Point Save reading to a point of interest Exit option menu www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 9: Using The Sem5000
A concentration level will be displayed. This is the actual measurement of methane in the atmosphere. Naturally occurring methane levels in atmosphere are typically 2.5ppm. The SEM5000 is now ready for operation. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 10: Pump Control
To switch off the instrument, press and hold the ON/OFF button [A] for a few seconds. A shut off message will appear on the display and will count down to shut off. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 11: Using Gps
In the event of signal loss during the survey, the instrument will continue to log gas values and will associate the to the last saved tracked GPS position until the signal is reacquired. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 12: Sem5000 Set Up
When the “Log” function is activated, the percent symbol, (%), will be displayed at the bottom of the screen. During the survey, this will indicate the percentage of available memory that has been used. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 13 “Manual Save” option. You must also turn the “LOG” option to OFF before using the “Manual Save” option. This option will allow you to use the “Function” button to manually save readings at desired intervals. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 14: Field Calibration
Air o Gas plus expected concentration (500, 250, 100) o Upwind test o Downwind test The screen will also display instructions to start, stop and track each test. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 15: Air Test 1
F button can be used to stop the test when stabilized. Once reading stabilized on the display, press the Function, (F) button again to stop the pump and complete Air Test 1. Stabilization will take approximately 20-30 seconds. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 16: Gas Test 1
The gas test is timed and will continue for up to twenty seconds. The remaining time is displayed above the sample concentration level. If the test gas reaches the threshold within the allocated time, the test result is automatically saved. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 17 After purging for several seconds, the pump will shut off automatically. After the pump shuts off, the instructions “Press F to start Air 2” will appear. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 18: Air Test 2
After purging for several seconds, the pump will shut off automatically After the pump shuts off, the instructions “Press F to start Air 3” will appear www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 19: Air Test 3
The pump will continue to run for several seconds to clear any residual methane from the chamber before the next test begins. After purging for several seconds, the pump will shut off automatically www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 20: Up-Wind Test
The Up-wind test is a timed test and will draw a sample of atmosphere in through the sample inlet for 30 seconds. The time remaining in the Up-wind test will be displayed above the sample concentration level. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 21: Down-Wind Test
If you plan to survey multiple sites on the same day, you will need to perform field calibration at each site. Connect the extendable sample probe to the sample inlet of the SEM5000, press the Function button, (F) and begin your survey www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 22: Functions
Selector Dial to scroll through to the Manual Save option and press the Selector Dial to save that specific location as an event point. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 23: Delete Memory
The SEM5000 is designed to alarm at exceedance levels of 100ppm, 250ppm and 500ppm. The user must establish the desired exceedance threshold level prior to daily field calibration, (see “SEM5000 Set Up”). www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 24: Alarms
Bluetooth is always active and the icon now appears in the top row of the display. If connected to a peer host, the Bluetooth™ logo is annotated with ‘PC’. When not connected, the Bluetooth logo is shown alone. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 25: Points Of Interest
‘<’ entry to delete a character. Use the ‘!’ character to exit the menu without saving. A short press of the Power button will return to the instrument main screen as well. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 26 Selector dial to save the current reading and associate it with the named point. If the required point is not displayed (perhaps too many points within a fence), then press the Function (F) to enter the full menu, as above. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 27: Geo-Fencing
Display the location on the screen The instrument does not automatically record any data against these fences; they are used primarily for ease of location for operators. NOTE: For further information please contact QED Technical Support at (800) 968-2026 or email service@qedenv.com www.qedenv.com OMSEM5000L Rev 01 ©... -
Page 28: Maintenance
Page 28 of 48 SEM5000 Surface Emissions Monitor Operating Manual Maintenance Changing the Battery Follow these diagrams for changing the battery on a SEM5000 Replace the battery only in non-hazardous locations! www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 29: Charging The Battery
The duration of the complete charge cycle is typically 4 hours 30 min. The typical autonomy of the device in operation is 10 hours at ambient temperature and with the backlight ON. Many factors, such as ambient temperature, activation of the backlight or the alarms can affect this duration. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 30 PC. Just as with the Bluetooth connection, the SEM5000 instrument will need to be turned on when connected to your PC via cable for instrument recognition and data download. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 31: Replacing The Water Trap Filter
NOTE: The water trap filter should be checked and changed periodically. It is recommended that it be changed prior to each SEM event. At a minimum, it should be checked quarterly and is recommended to be checked weekly during periods of heavy use. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 32: Extendable Sample Probe Maintenance
Both filters should be replaced periodically. It is recommended that, at a minimum, they be changed at the beginning of each SEM event. You may need to change them more often, depending on individual site conditions. To change the bronze dust filter: www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 33 Page 33 of 48 SEM5000 Surface Emissions Monitor Operating Manual To change the cellulose dust filter: www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 34: Replacing The Sample Tubing
The SEM5000 extendable sample probe contains a 5-foot section of tubing that directs the sample into the instrument. Should the tube become kinked or break, it must be replaced to avoid restricting the pump or causing errors in the concentration readings. To replace the tubing: www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... - Page 35 Page 35 of 48 SEM5000 Surface Emissions Monitor Operating Manual www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
- Page 36 Page 36 of 48 SEM5000 Surface Emissions Monitor Operating Manual www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 37: Factory Calibration
SEM5000 Surface Emissions Monitor Operating Manual Factory Calibration It is recommended that your SEM5000 be sent to QED biennially, (every two years), for inspection and calibration. Your instrument’s recommended calibration due date is shown on the unit’s display screen at start www.qedenv.com... -
Page 38: Instrument Specifications
The maximum flow is 1 l/m. The use of accessories, such as the probe, can slightly reduce this flow. It is advised to only use the parts and accessories supplied by QED. The gas sample entrance connector has a size of D2 X D4 mm. - Page 39 Equipped with a security ring. Quick-connect gas inlet coupling with locking Gas connections mechanism: suction rod on the right side. Quick-connect gas outlet coupling. Carrying Straps Synthetic band, 30mm www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems...
-
Page 40: Troubleshooting
Communication has Turn off and restart SEM5000. If the error persists, SENSOR ERROR 150 failed contact Technical Support. NOTE: For further information please contact QED Technical Support at (800) 968-2026 or email service@qedenv.com www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 41: Pump Error
If in normal operation, the pump icon will be displayed. If in manual save operation, the save icon will be displayed. If no GPS is available, the manual save icon will be displayed with a cross. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 42: Replacement Parts
SEM-HOLD SEM5000 Removable Filter Holder for Hydrophobic Filter CGCH4-500 Calibration gas for SEM. CH4 500ppm / Balance Air, 105L bottle CGAIR-0 Calibration gas for SEM. Air - Ultra Zero Grade, 105L bottle www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 43: Sem5000 Warranty
3 years from the date of the shipment to the user. During this period QED will repair or replace defective parts on an exchange basis. The decision to repair or replace will be determined by QED. -
Page 44: Appendix A -Safe Use Of The Instrument
The checks and maintenance of certified equipment should be performed according to the criteria of the standard EN60079-17. Repair In the event of malfunction or damage is recommended to send the equipment to QED for repair. NOTE: For further information please contact QED Technical Support at (800) 968-2026 or email service@qedenv.com www.qedenv.com... -
Page 45: Appendix B - Bluetooth Module Compliance
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 46: Canada
(Article 3.2) and are summarized below : Certification Standards Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Health EN 62479:2010 En 301 489-1 V1.9.9 (2011-09) EN 301 489-17 V2.2.1 Radio EN 300 328 V1.8.1 (2012-06) Notified Body CE 2903 www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 47: Appendix C -Eu Declaration Of Conformity
Page 47 of 48 SEM5000 Surface Emissions Monitor Operating Manual APPENDIX C –EU DECLARATION OF CONFORMITY www.qedenv.com OMSEM5000L Rev 01 © QED Environmental Systems... -
Page 48: Appendix D - Production/Product Quality Assurance Notification
Intrisic Safety (ia) (ib) e. Optical Radiation (Op is) f. Flameproof (d) 5. Manufacturer or Authorized Representative: a. QED Environmental Systems Ltd. b. 2355 Bishop Circle West c. Dexter, MI 48130 USA 6. Manufacturing locations: As above 7. CSA Group Netherlands B.V., notified body number 2813 in accordance with in accordance with Article 17 of the Council Directive 2014/34/EU, notifies that the manufacturer has a quality system which complies with the requirements of Annexes IV &...
