Proove TSR201 User Manual

CREATE YOUR Smart home
Features
• Self-learning, 6 memory settings
• May be used with all kinds of remote controls (portable,
wall mounted, sensors etc.)
• The receiver is Tellstick compatible.
WARNING!
• Do not place two receivers too close to each other. The
distance between two receivers must be at least 1 m.
• DO NOT OVERLOAD THE SYSTEM!
Do not use the system in humid places, e.g. in farms or basements
and not in the vicinity of inflammable liquids, solvents, colours or
similar products.

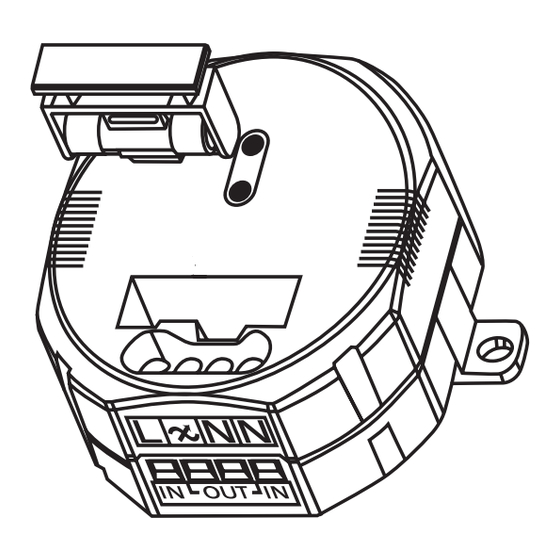

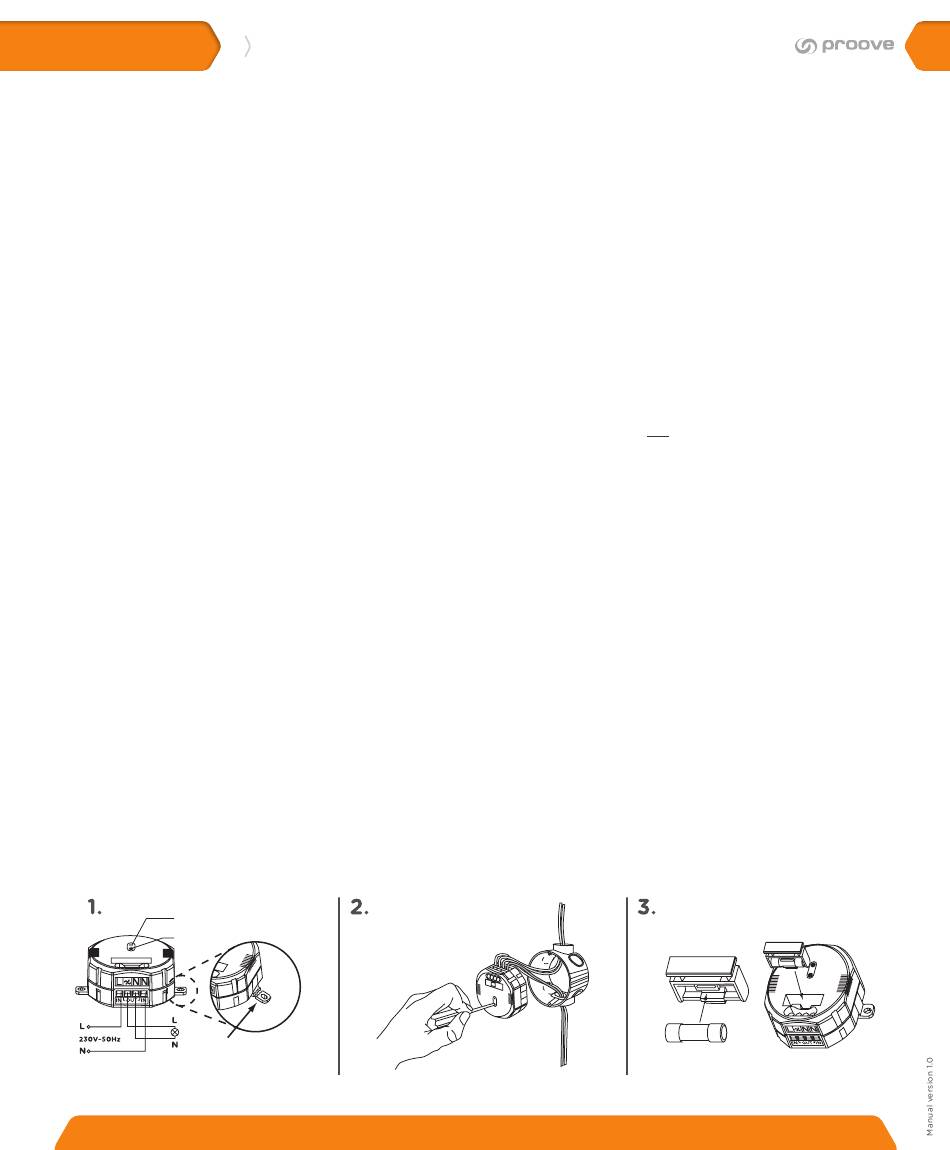

Installation (picture 1)
NOTE! Always disconnect main power prior to installation!
1. Connect AC wire and load to receiver's block terminal
2. Turn on the main power. The LED on receiver will be lit.
Programming a receiver
1. Install the receiver as explained under "Installation" above.
2. Press the receiver's programming button (pic 2). The LED
blinks slowly.
3. Press one of the ON buttons on the remote control
within 10 seconds to link the receiver to the button. (The
programming mode is automatically disabled if no button
is pressed.)
4. The connected lamp blinks twice as confirmation.
Deprogramming a single code:
1. Press the receiver programming button (pic 2). The LED
blinks slowly.
2. Press the corresponding OFF button on the remote
control to remove the programmed code. (The
programming mode is automatically disabled after 10
seconds if no button is pressed.)
3. The connected lamp blinks twice as confirmation.
Deprogramming all codes:
1. Keep the receiver programming button pressed for 6
seconds (pic 2). The LED blinks rapidly.
2. Press the receiver programming button once more
to remove all codes. (The programming mode is
automatically disabled after 10 seconds if the button is
not pressed.)
3. The connected lamp blinks twice as confirmation.
Programming button
LED
USERS MANUAL • TSR201
A SMARTER CHOICE
The receiver has 6 memory settings
It is possible to programme the receiver to switch
on separately or switch them on and off in different
combinations.
Note: Do not program an on/off receiver and a dimmer receiver to
the same remote control button. It is recommended to only program
one dimmer receiver to each remote control button.
Tellstick compatible
The receivers are compatible with Tellstick products. Select
"Proove" as the receiver type when programming the
receivers for use in this manner. Please visit www.telldus.
se for more information on how to use the receivers with
Tellstick products.
"The lamp is not working" - Troubleshooting
1. If the receiver's LED is lit:
• Check the light source
• If there is a power switch on the connecting cable,
make sure it is switched on.
2. If the receiver's LED is not lit:
• Check the power supply to the receiver
• Check the fuse and replace it if needed (pic 3)
• Try pressing the ON button on the remote control
once again.
3. If the problem persists:
• Check the battery in the remote control (transmitter)
• Check the programmed codes. It may be necessary to
erase old codes and reprogram the receiver.
Specifications
Receiver:
Load (min/max) . . . . . . . . . . . . . . . . . . . 40W – 300W
Operating range . . . . . . . . . . . . ca 25m (free line of sight)
Protection class. . . . . . . . . . . . . . . . . . . . . . . . . IP20
Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
Operating temperature (max.) . . . . . . . . . . . . . . . . 40°C
Frequency. . . . . . . . . . . . . . . . . . . . . . . . 433.92MHz
Power supply . . . . . . . . . . . . . . . . . . . . . . 230V~ 50Hz
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . T1.6A, H250V
