Summary of Contents for axing CAST ISW 2-130

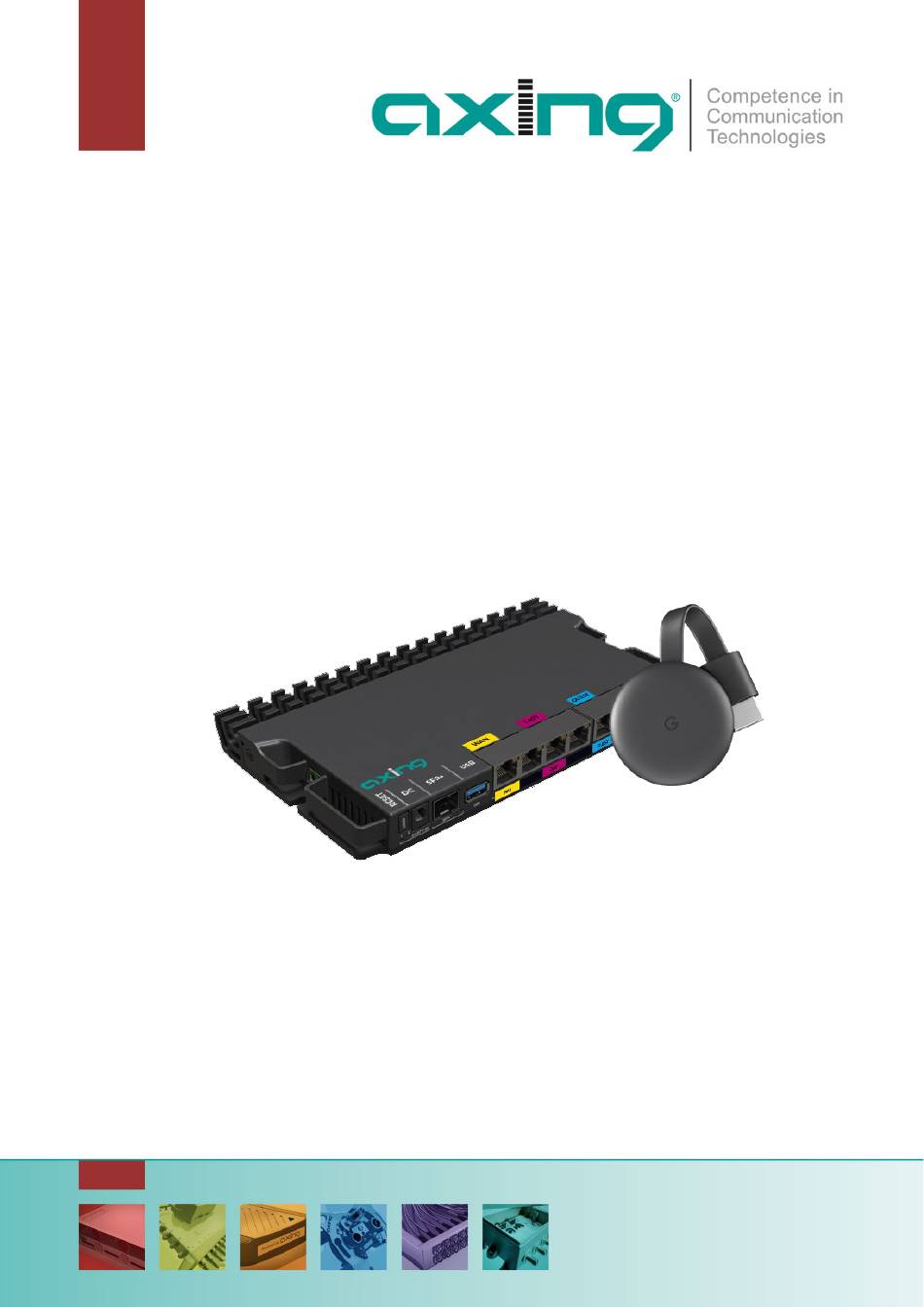

- Page 1 ISW 2-130 AXING CAST solution Hardware server Operation instructions...
-
Page 2: Table Of Contents
Operation instructions | ISW 2-130 Table of contents Product description ................................4 1.1. General ................................... 4 1.2. Scope of delivery ..............................4 1.3. Display elements and connectors ........................... 4 System integration ................................5 2.1. Requirements for the network ..........................5 Mounting and Installation ............................... - Page 3 If the device is used for other purposes, no warranty will be assumed! Herewith AXING AG declares that the marked products comply with the valid guidelines. WEEE Nr. DE26869279 | Electrical and electronic components must not be disposed of as residual waste, it must be disposed of separately.
-
Page 4: Product Description
1.1. General The hardware server is the central unit of the AXING CAST solution. It manages the assignment of the guest smartphones to the Chromecast devices in the rooms and handles streaming to the hotel TVs. In addition, messages can be sent to the individual rooms and statistics on user behaviour can be viewed. -
Page 5: System Integration
• Two DHCP servers, one each for the GUEST and CAST network • Two IP addresses reserved in the DHCP server in the GUEST and CAST network (must be transmitted to AXING to finalize the configuration) • Reserved IP addresses must be accessible for the devices in the respective network •... -
Page 6: Mounting And Installation
3.2. Mounting in a 19“rack The AXING CAST server comes with brackets for 19“installation. Mount these on the right and left of the housing using the enclosed screws. Then install the server in the 19“rack. -
Page 7: Configuration
Accessing the configuration interface: http://x.x.x.x/console x.x.x.x = the IP address assigned to the AXING CAST server. 4.1. Login and logout Enter Username and Password and click Login. -
Page 8: Dashboard
Operation instructions | ISW 2-130 4.2. Dashboard The user interface starts with the dashboard. Following areas are accessible on the dashboard: • Casting duration in seconds of the last 30 days • Number of casting sessions of the last 30 days •... -
Page 9: Changing Password Or Log Out
If you click on the light bulb icon on the right, a menu will open. Here you can select the light or dark display mode and select the display colours. 4.2.1. Changing Password or Log out You can change the password or log out using the menu on the right corner. 4.3. - Page 10 Operation instructions | ISW 2-130 To reboot one Chromecast, click on the icon shown below. To turn off notifications for the device, click on the icon shown below. Notifications will no longer be sent to this device. To access settings, click on the icon shown below. You can enter or change the Number or Name of the Room.
-
Page 11: Rooms
4.4. Rooms If you click on the Rooms icon on the left, the section Rooms is displayed. This section includes all the rooms in the system. You can add rooms or a range of rooms by using the 'Add rooms' button. Step 1: Insert the range of rooms in the fields “Room room number”... -
Page 12: Cast Notification
Operation instructions | ISW 2-130 You can delete rooms by clicking on the bin icon. You can also mark rooms as been checked out. 4.5. Cast notification If you click on the Cast notification icon on the left, the Cast notification area is displayed. In this area, you can send notifications to individual rooms or to all rooms. -
Page 13: Background Setup
4.6. Background setup Note: Background images must have a resolution of 1920 x 1080 pixels! If you click on the Background setup icon on the left, the Background setup area is shown. In the Background setup area, you can add a background image. Step 1: Click on Add new as shown below. - Page 14 Operation instructions | ISW 2-130 Step 3: The background is uploaded. If you have added several backgrounds, you must activate one of them, by clicking the Activate button. You can delete a background image by clicking on the bin icon. 2024-10-24 | Technical improvements, changes in design, printing- and other errors reserved.
-
Page 15: Chromecasts Status Log
4.7. Chromecasts status log Various events are logged in the Status log area. You can choose the order in which you want to sort the events. You can also configure a webhook, to send messages to another application. 2024-10-24 | Technical improvements, changes in design, printing- and other errors reserved. -
Page 16: Technical Specifications
Operation instructions | ISW 2-130 5. Technical specifications Type ISW 2-130 Interfaces Ethernet connectors (LAN) 3 × RJ-45* Ethernet standards IEEE 802.3, 1000 Base-T/1 GbE @ CAST IEEE 802.3, 1000 Base-T/1 GbE @ GUEST IEEE 802.3bz 2.5GBASE-T/2.5 GbE @ WAN General Operating voltage 24 …... - Page 17 2024-10-24 | Technical improvements, changes in design, printing- and other errors reserved.
- Page 18 Operation instructions | ISW 2-130 2024-10-24 | Technical improvements, changes in design, printing- and other errors reserved.
