Serenco BOXO NI317-20 User Manual

Pneumatic hammer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Pneumatic hammer
NI317-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOXO NI317-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Serenco BOXO NI317-20

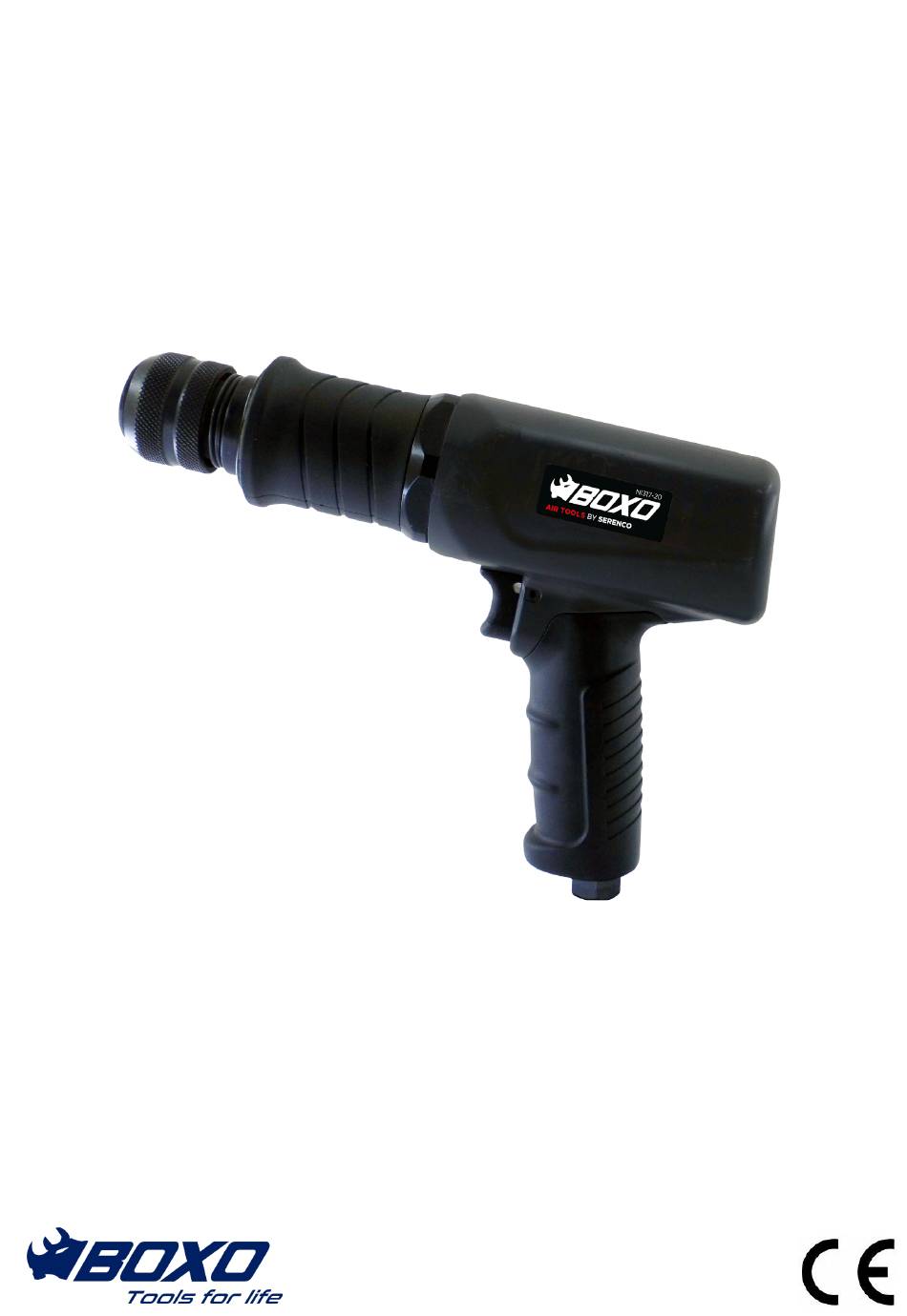

  • Page 1 User manual Pneumatic hammer NI317-20...

  • Page 2: Table Of Contents

    • Whipping air hoses caused by bad connections or damaged hoses Wear protective work gloves Wear a dust mask Your special attention is asked for important specific instructions or safety risks User manual BOXO NI317-20 Pneumatic composite hammer...

  • Page 3: Main Application

    4 Main application • Unexpected tool movement caused by reaction forces or breakage of This tool is intended for the removing of accessories can cause injuries. material using a chisel. User manual BOXO NI317-20 Pneumatic hammer...

  • Page 4: Installation

    Thoroughly inspect the air-tool every 3 months when used daily. Only use original spare parts, that are available through your distributor. User manual BOXO NI317-20 Pneumatic composite hammer...

  • Page 5: Operating Instructions

    Bring the tool in position and press the starting switch. Disconnect the air-tool before changing chisels. Check that the chisel is fitted properly before each use. Do not use damaged chisels and spring retainers. User manual BOXO NI317-20 Pneumatic hammer...

  • Page 6: Technical Specifications

    Technical specifications Item nr. NI317-20 Max free speed [blows per minute] 3,500 Vibrations [m/s 3.14 Air inlet [inch] Air consumption [l/min] 96.3 Max. air pressure [bar] Sound power level [dBA] Weight [kg] Length [mm] User manual BOXO NI317-20 Pneumatic composite hammer...

  • Page 7: Exploded View

    RUBBER RING ST2061913 SPRING (37x3x20L) ST2061926 CLAMP NUT ST2061914-1 WEAR RING ST2061927 CYLINDER CASE ST2061915 O-RING (AS032) ST2061928 SPRING (30.4x2.3x36L) ST2061916 CYLINDER SLEEVE ST2061929 COLLAR ST2061917 VALVE SEAT ST2061930 SNAP RING (STW-29) ST2061918 VALVE PIN User manual BOXO NI317-20 Pneumatic hammer...

  • Page 8: Eu Declaration Of Conformity

    Responsible for making this declaration is the: Brand Owner Authorized representative established within the EU   Company Name : Serenco Nederland B.V. Company Address : Positronweg 12 3542 AZ Utrecht The Netherlands Company Phone : + 31 (0) 30 2415011...
