Instruction Manual

Proton Products

HST4 Pneumatic Control System

For SL i4 series gauges

Issue 1b

27 March 2023

Proton Products Co. Ltd.

10 Aylesbury End

Beaconsfield

Buckinghamshire HP9 1LW

England

www.protonproducts.com

Page 1 of 29

HST4 Pneumatic Control System Instruction Manual, issue 1b

Need help?

Do you have a question about the HST4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Proton HST4

Page 1 Proton Products HST4 Pneumatic Control System For SL i4 series gauges Issue 1b 27 March 2023 Proton Products Co. Ltd. 10 Aylesbury End Beaconsfield Buckinghamshire HP9 1LW England www.protonproducts.com Page 1 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 2 ......29 ONTACT DETAILS FOR ENQUIRIES SALES AND SERVICE ............................29 EB SITE ......................... 29 NQUIRIES AND SALES ..........................29 ERVICE ENQUIRIES ............29 ANUAL FEEDBACK AND COPYRIGHT Page 2 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 3 Compliance with EMC directives was by the standards route. It is declared for and on behalf of Proton Products Ltd that the equipment specified below conforms to EC directives EMC: 2014/30/EU and Low Voltage: 2014/35/EU and Laser Safety BS EN 60825- 1:2007.

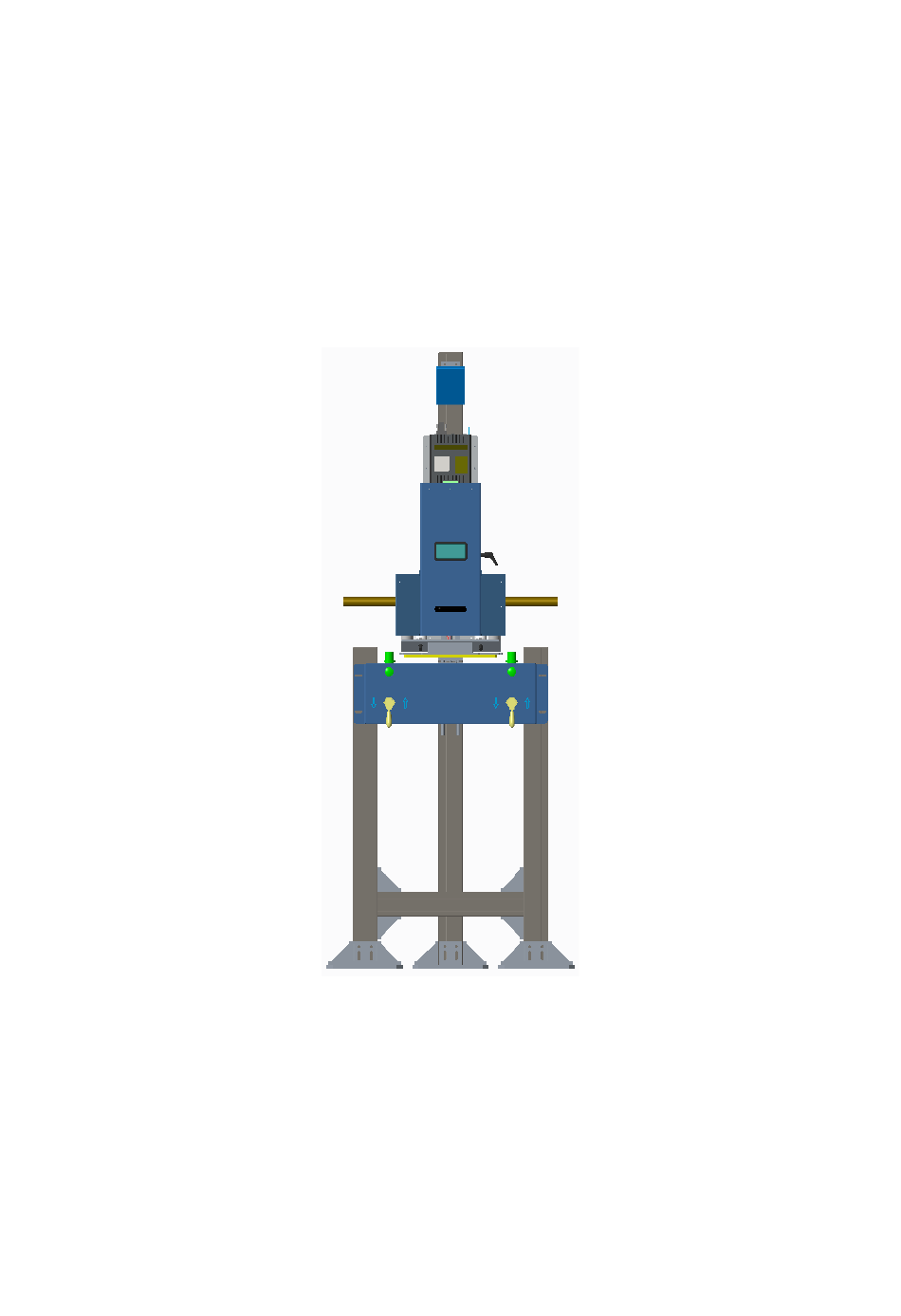

Page 4 The HST4 pneumatic control system is designed specifically for ease of operation and guaranteed cable centering for optimal speed measurement which consists of five parts: HST4-SL height stand, HST4 VX50 Laser Guard, Pneumatic Control Panel, HST4 VX50 Roller Set and HST4-SL X Roller Support.
Page 5 HST4-SL HST4-SL is a single column combined height adjust and SL Gauge mounting stand. The single column stand also includes guide roller mounting options and laser guard fitting capability. The HST4-X Roller Support The HST4-X Roller Support is a double support stand designed specifically to hold various roller configurations.
Page 6 HST4 VX50 Roller The HST4 VX50 is a very special guide roller designed to ensure that the cable position is always perfectly aligned with the optimum height for the SL i4 or SLmini i4 Speed and Length Gauge. The upper rollers of this assembly are fixed at the correct height for the standoff distance of the gauge.
Page 7 HST4 VX50 Laser Guard The HST4-SL VX50 Laser Guard is designed to fully shield the possible reflections and direct viewing of the laser beam which is emitted from the SL Gauge. The Laser Guard comes with a safety switch so that when the Guard cover is lifted the laser beam is automatically shut off.
Page 8 (HST4-SL) IMENSIONAL DRAWING Page 8 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 9 (VX50 R IMENSIONAL DRAWING OLLER Page 9 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 10 (VX50 L IMENSIONAL DRAWING ASER UARD Page 10 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 11 (HST4-X R IMENSIONAL DRAWING OLLER UPPORT Page 11 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 12 IMENSIONAL DRAWING NEUMATIC ONTROL ANEL Page 12 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 13 (CDI4 M IMENSIONAL DRAWING OUNTING RACKET Page 13 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 14 HST4-SL H OUNT THE TO THE EIGHT TAND Attach the SL(R) i4 gauge to the base plate on the HST4-SL Height Stand. The mounting holes are indicated below. Page 14 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 15 HST4-SL H OUNT THE ASER UARD LIDES TO THE EIGHT TAND Attach the Laser Guard slides to both sides of the HST4-SL Height Stand using fixing screws indicated below. Page 15 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 16 UARD TO THE EIGHT TAND Install the Laser Guard onto the HST4-SL Height Stand along the slides and attach it to the pneumatic control rod using 8 screws indicated below. Page 16 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 17 HST4-X R OUNT THE OLLER TO THE OLLER UPPORT Attach the upper roller to the HST4-X Roller Support using 6 fixing screws indicated below. Front view Top view Page 17 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 18 OUNT THE NEUMATIC ONTROL ANEL TO THE OLLER UPPORT Attach the Pneumatic Control Panel to the HST4-X Roller Support using 4 fixing screws indicated below. 8. M HST4 VX50 L OUNT THE OWER OLLER FIXING PLATE ONTO THE PNEUMATIC CONTROL...
Page 19 TAND TO THE FLOOR Attach the HST4-SL Height Stand to the floor through the screw holes indicated below. It’s recommended to use four M×12 expansion screws to mount the stand to the floor (Proton does not provide the screws with the stand).
Page 20 UPPORT TO THE FLOOR Attach the HST4-X Roller Support to the floor through the screw holes indicated below. It’s recommended to use four M×12 expansion screws to mount the stand to the floor (Proton does not provide the screws with the stand).
Page 21 ( Φ11) Connector type: SUS-20PM ( Specification Minimum Maximum Unit Air pressure The compressed air quality must meet or exceed: ISO 8573-1; Particle Class 6; Oil Class 4. Page 21 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 22 2. Wire together the following 2 pins on the DB44 male (plug) connector: DB44 male (plug) connector Label Function 3 or 4 DGND Power supply ground Connect together with a wire link: DGND Digital ground Page 22 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 23 Label Screw Colour Label Function +24V DC power supply +24V +24V +24VDC power supply Shutter enable /SHUT_EN Blue Shutter control Power supply ground DGND Black Power supply ground Page 23 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 24 Power supply ground Connect together with a wire link: DGND Digital ground 4. Connect the PSU-BOB i4 to the SL i4 gauge INTERFACE socket using a DB44-to-DB44 cable: Page 24 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 25 (for Laser Guard) Lift control handle (for Roller Set) Press the cap to rotate the handle Rotate the handle to the left (right) to lower (raise) the laser guard. Page 25 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 26 To lower the laser guard mechanically, hold and push the handle upwards a little bit then rotate the lift latch to the middle position to release the laser guard. Page 26 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 27 3. Rotate the Laser Guard control handle to the left to raise the Laser Guard. 4. Rotate the Roller control handle to the left to drop the lower roller set. Page 27 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 28 6. Rotate the Roller control handle to the right to raise the lower roller set. 7. Rotate the Laser Guard control handle to the right to lower the Laser Guard. Page 28 of 29 HST4 Pneumatic Control System Instruction Manual, issue 1b...
Page 29 Proton Products is not responsible for consequential or incidental damage related to the provision or use of the information contained in this manual. • The information contained in this manual is the property of Proton Products and may not be circulated or distributed to third parties. •...
