Xylem Bell&Gossett NRF Instruction Manual

CSA C22.2 No.108
UL 778
Installer
NOTICE:
PLEASE LEAVE THIS MANUAL FOR OWNER'S USE
SAFETY INSTRUCTIONS
This safety alert symbol will be used in this manual and on the unit safety in‐
struction decals to draw attention to safety related instructions. When used, the
safety alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
A SAFETY HAZARD.
Introduction
Note: Bell & Gossett recommends Bronze or Stainless Steel Booster Pumps be
used for pumping potable water.
This pump is for indoor use only.
Your NRF/NBF/SSF Booster Pump should have the warning/ caution label and
non submersible warning label displayed to the right, See
on the pump conduit box. If this warning and caution label is missing or illegible,
contact your local B&G Representative for a replacement.
WARNING
BEFORE INSTALLING, USING OR SERVICING
THIS PRODUCT, READ THE INSTRUCTIONS.
TO REDUCE RISK OF ELECTRICAL SHOCK
SEE INSTRUCTIONS FOR PROPER
INSTALLATION
CAUTION
FOR SUPPLY CONNECTIONS USE WIRE
SUITABLE FOR AT LEAST 90°C. USE COPPER
CONDUCTORS ONLY.
EMPLOYER DES FILS
D'ALIMENTATION ADEQUATS POUR 90°C.
FOR INDOOR USE ONLY. EMPLOYER
UNIQUEMENT A L'INTERIEUR.
Figure 1: Warning label
Description

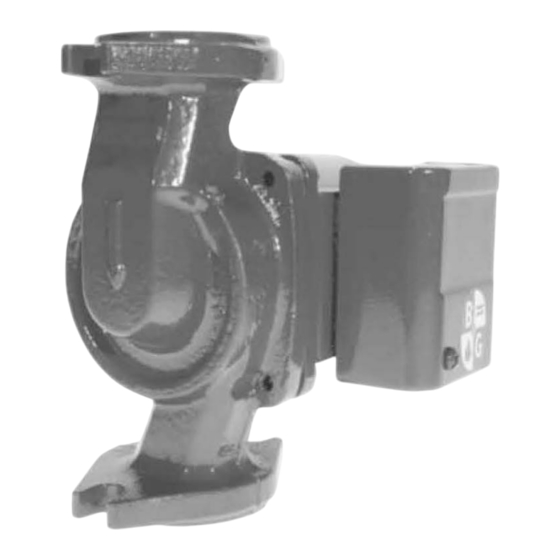

The Model NRF/NBF/SSF Circulator Pump features system liquid lubricated
bearings, non-overloading permanent split capacitor motor with impedance pro‐
tection and quiet operation.
NRF/NBF/SSF Circulator
Figure 1
on page 1
WARNING
RISK OF ELECTRICAL SHOCK;
THIS PUMP HAS NOT BEEN INVESTIGATED
FOR USE IN SWIMMING POOL AND
MARINE AREAS.
-NONSUBMERSIBLE PUMP-
INSTRUCTION MANUAL
Pump Application
The Model NRF/NBF/SSF Booster Pump may be used for water circulating appli‐
cations in hydronic and solar systems. This pump is nonsubmersible, for indoor
use only.
It has not been investigated, nor is it intended for use in swimming pool and ma‐
rine areas.
Glycol mixture statement
• PL pumps can be used to circulate water and glycol mixtures up to a recom‐
mended 30% concentration and 40% for snow melt applications.
• Pump performance is based on 77℉ (25℃). Therefore pumping of glycol
mixtures will affect max performance, depending on mixture concentration
and temperature.
Recommended accessories
• Pump is recommended to be used with clean water systems.
• Dirt or magnetic separators are recommended if the water is high in particu‐
late matter such as iron oxide and/or mineral deposits. Clean water promotes
long pump life.
Operational limits
These pumps are designed to pump liquids compatible with their iron, bronze or
stainless steel body constructions.
Maximum Operating Pressure:
Operating temperature:
Electrical Rating:
If your NBF pump is equipped with a sweat connected pump body, the maximum
operating pressure is limited to 150 PSI (10 bars) or a lower value determined by
the type of solder used and pressure/temperature limitations listed below:
Do not exceed these values.
(Solder type limits per ASTM STD. B16.18-1978)
P58671_I
https://qr.xylemsales.com/p56871
150 PSI (10 bars)
NRF-22 & NRF-9F/LW, -10℃ to 115℃
(50℉ to 239°F)
NBF Pumps (except NBF-33), -10°C to
110°C (50℉ to 230°F)
NRF-33 & NBF-33, -10°C to 107°C
(50℉ to 225℉)
SSF Pumps, -10°C to 110°C (50℉ to
230°F)
115V, 60Hz, 1Ø; 220V, 60Hz, 1Ø;
220V, 50Hz, 1Ø; 230V, 60Hz, 1Ø
EN
1
