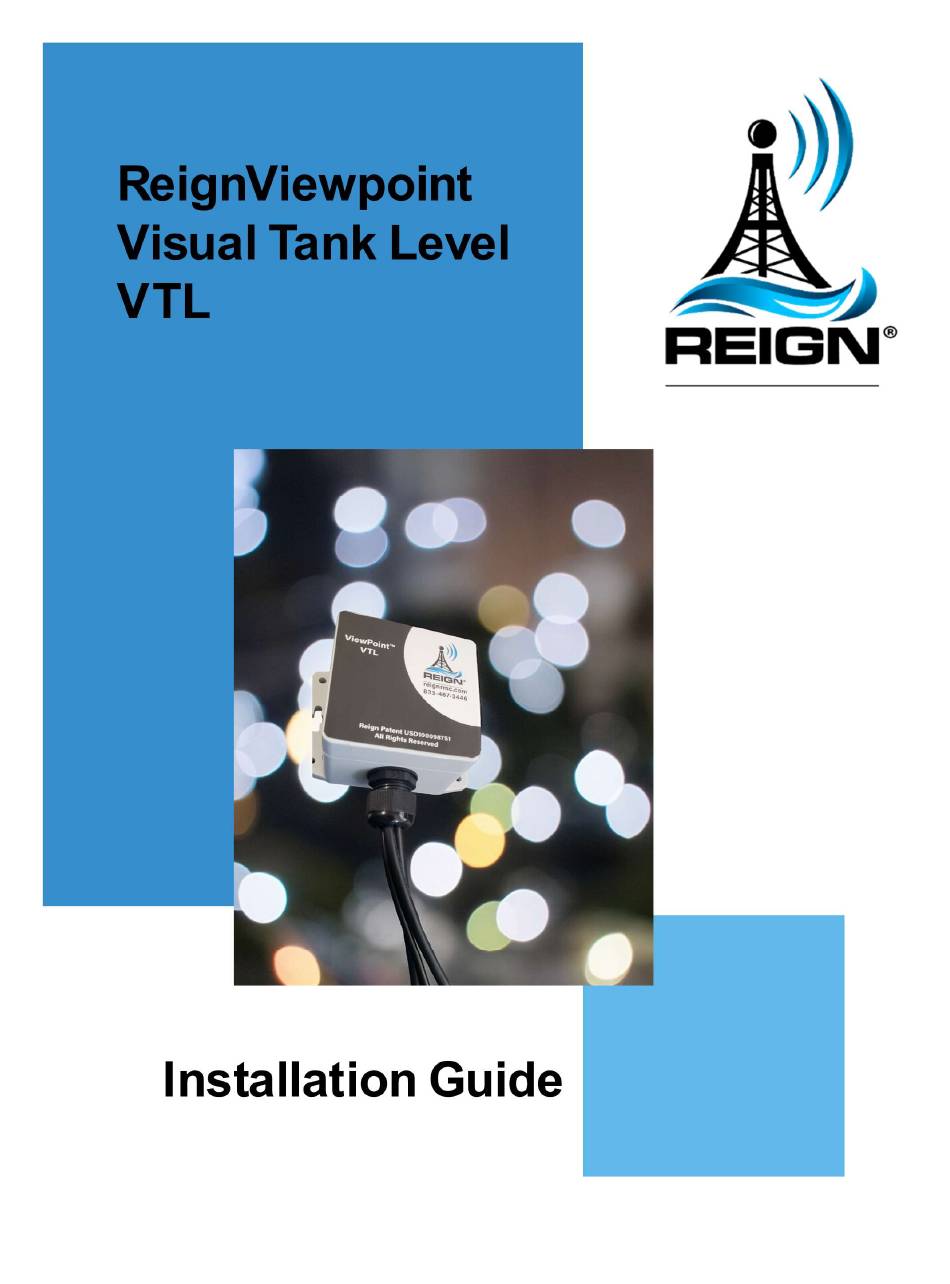

Summary of Contents for REIGN ReignViewpoint VTL
- Page 2 July 16, 2024...
-
Page 3: Installation
If the magnets are not fully engaged the Light Bar can blow down in high winds. Note: Reign is not responsible for equipment that is not mounted properly. -
Page 4: Telnet Connection
The browser connection is currently used to monitor the real-time display of the device. Telnet connection will allow full control over the VTL. Browser Option: Open your wireless settings and look for the access point name corresponding to your VTL. e.g. VTL-12345 ... - Page 5 Android - Mocha Telnet Lite is free on Android. https://play.google.com/store/apps/details?id=dk.mochasoft.telnetlite&hl=en_US&gl=US Telnet Lite https://apps.apple.com/us/app/telnet-lite/id286893976 To connect to the VTL: Start your connection using your Telnet application. The VTL’s IP address is 192.168.4.1. Enter that IP address for the host or connection name. Select Telnet as the type of connection.
- Page 6 Set the high and low levels for display (default is 90 and 10%) Example l 80,20 would set the high level to 80 and low to 20 Set option flags: Example o Shows the options and their current settings Returns: Enter the Option Number followed by ON or 1 to turn On, or OFF or 0 to turn OFF: 1.
-
Page 7: Switch Settings
Switch Settings Figure 3 Switch 1 Settings Figure 4 Switch 2 Settings Specifications External Dimensions of the VTL Controller: 3.23 x 3.15 x 2.17 in Weight: 0.33 lbs. Material: Polycarbonate UV Resistant: Yes Waterproof: Yes External Mounting: Molding Flanges – Magnets UL &...
