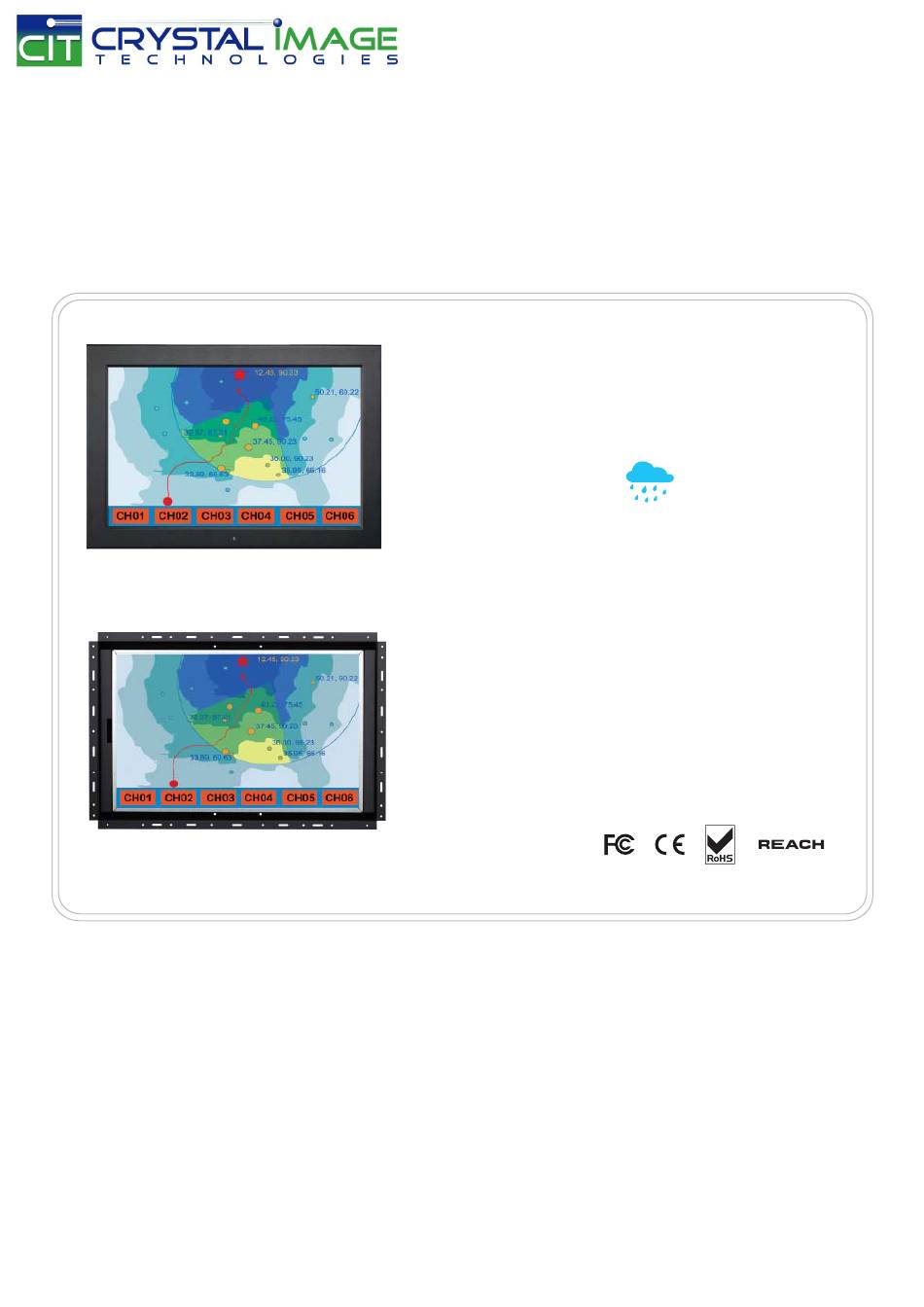

- Page 1 LCD display solutions User Manual 19” Widescreen LCD LCD-AP-W19 Aluminum front bezel LCD-NAP-W19 Front NEMA4 / IP65 LCD-OP-W19 Universal Mounting Open Frame UM-UV-621-W19-Q218V1 www. es.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > LCD-AP-W19 / LCD-NAP-W19 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > LCD-OP-W19 Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content - LCD-AP / NAP-W19 AP-W19 / NAP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs...
- Page 6 Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight LCD-AP-W19 508.5 x 65.6 x 338.1 mm 662 x 115 x 533 mm 7 kg 10 kg LCD-NAP-W19 20 x 2.6 x 13.3 inch 26.1 x 4.5 x 21 inch...
- Page 7 < 1.2 > Dimension - LCD-AP-W19 / LCD-NAP-W19 Front View Side View AP-W19 NAP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q218V1 www.rackmountsales.com...
- Page 8 < 1.3 > Panel Mount Installation - LCD-AP/NAP-W19 19” Widescreen LCD Display M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
- Page 9 < 1.3 > VESA mount Installation - LCD-AP-W19 / NAP-W19 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-W19-Q218V1 www.rackmountsales.com...
- Page 10 < Part 2 > < 2.1 > Package Content - LCD-OP-W19 19” Widescreen LCD Display LCD-OP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O Audio Power S-Video...

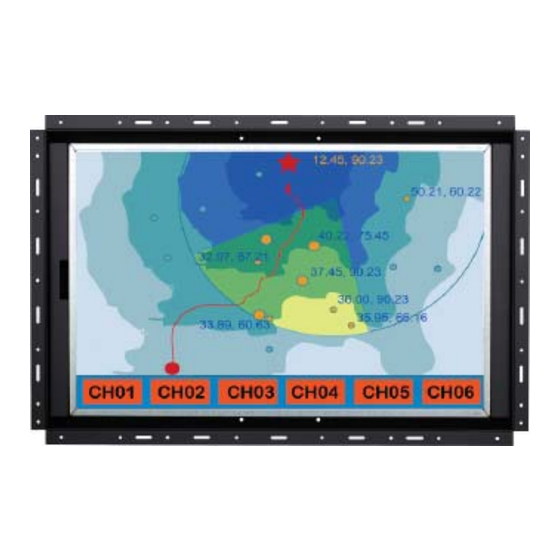

- Page 11 < 2.2 > Structure Diagram - LCD-OP-W19 Front view OP-W19 Rear view Rear case LCD panel Audio speaker ( for HDMI, Audio or TV option ) Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
- Page 12 < 2.2 > Dimension - LCD-OP-W19 19” Widescreen LCD Display Front View Side View OP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q218V1 www.rackmountsales.com...
- Page 13 < 2.3 > Installation - LCD-OP-W19 ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-W19-Q218V1 www.rackmountsales.com...
- Page 14 < Part 3 > < 3.1 > Product Specifi cations 19” Widescreen LCD Display LCD-AP/NAP-W19 LCD-OP-W19 Mechanical Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount Protection...
- Page 15 FCC & CE certifi ed Safety CE / LVD certifi ed Environment RoHS2 & REACH compliant Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration)
- Page 16 < 3.2 > On-screen Display Operation ( OSD ) 19” Widescreen LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
- Page 17 < Part 4 > Options < 4.1 > Option Table Options AP / NAP SDI *** HDMI * or DVI-D S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector Quad display TV ( Analog ) * About SDI ( 1 ) The AD board will be upgraded to version 3.0, and this comes standard with HDMI, DVI-D, VGA,...
- Page 18 < 4.2 > Options : 3G / HD / SD-SDI input 19” Widescreen LCD Display ’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 19 LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CIT LCD displays, Crystal Image provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 20 < 4.4 > Options : 19” Widescreen LCD Display AV2.2D Upgrade Options ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
- Page 21 < 4.5 > AV3.0 Upgrade Options : 19” Widescreen LCD Display ( HDMI 1.3 / HDCP 1.3 - HMDI ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in &...
- Page 22 < 4.6 > Options : Touchscreen & driver W19" USB Touchscreen Specifi cation Multi-touch e-Resistive e-Capacitive Model W19TPC-10 Projected Capacitive 5-Wire Resistive Capacitive Technology Single Single Touch Point Finger or Stylus Finger Input Type 4096 x 4096 2048 x 2048 2048 x 2048 Resolution ±...
- Page 23 < 4.6 > Options : Touchscreen & driver 19” Widescreen LCD Display W19TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 24 19” Widescreen LCD Display < 4.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 25 < 4.9 > Options : Quad Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate 1.0 Vpp, 75 Ohm x 4 Camera Input Video Input 1.0 Vpp, 75 Ohm x 1...
- Page 26 < 4.10 > Options : TV ( Analog ) 19” Widescreen LCD Display Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller.
- Page 27 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-UV-621-W19-Q218V1 www.rackmountsales.com...
