Summary of Contents for nwm MBE002

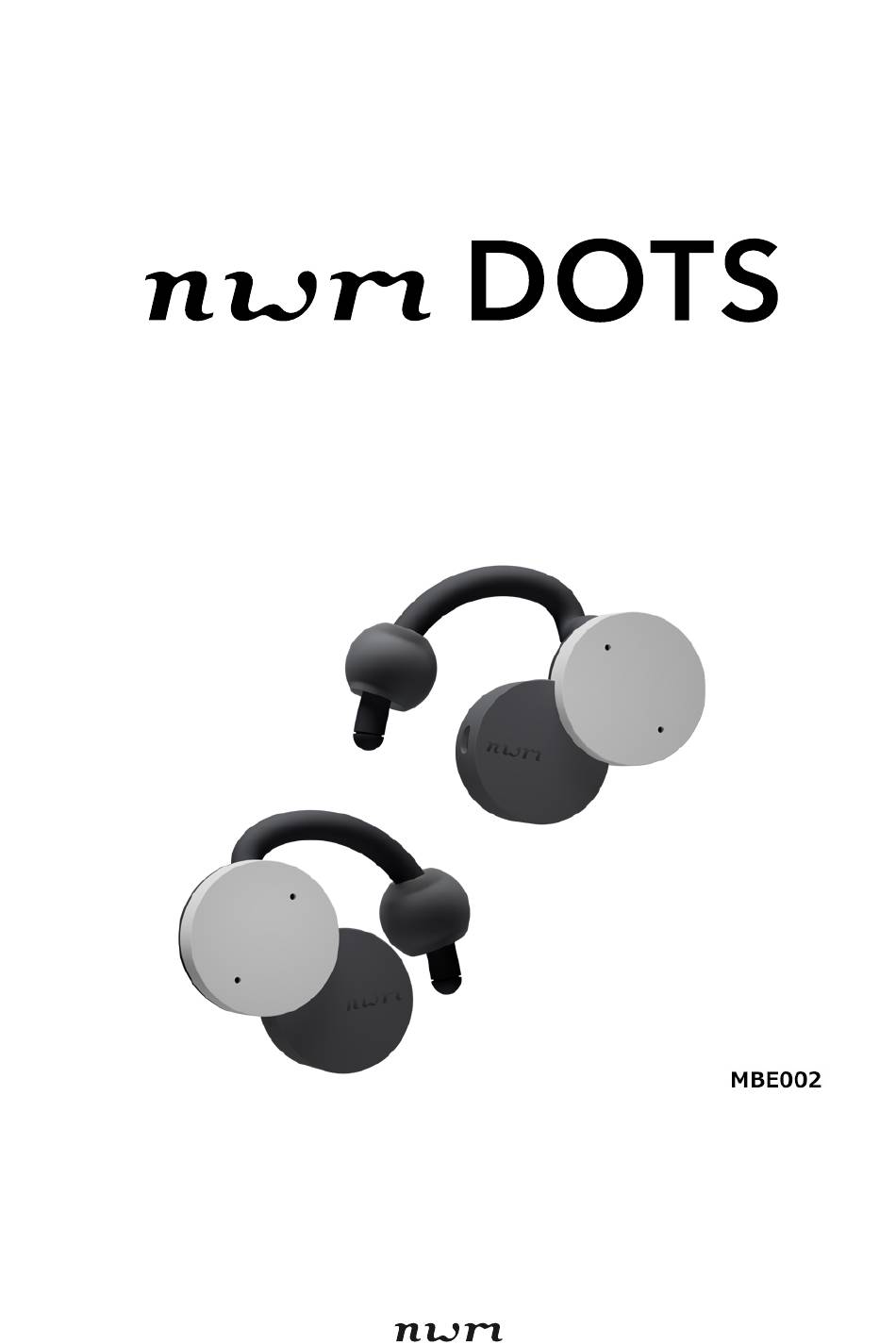

Page 1 wireless on-ear speakers Online Instruction Manual...
Page 2 Listening to music ................ 24 Calling ..................27 Using the voice assistant function ..........29 nwm Connect App ..............33 Operations available with the nwm Connect app ......33 Download the nwm Connect app ..........33 Troubleshooting ............... 35 Troubleshooting ................35 How to initialize ................
Page 3 Main specifications ..............44 Main specifications ............... 44 – 3 –...
Page 4 Introduction Package contents (1) Main unit (2) Charging case (3) Tail tip (S, M, L, two of each) (4) Safety Guide ×2 * M size tips are attached at the time of ship- ment from the factory. – 4 –...
Page 5 Part names Earphones (L, R) 1: Touch sensor (L, R) 2: Microphone 3: Ear hook 4: Charging connector on the earphone side 5: Speaker – 5 –...
Page 6 Adjust the tail tip size and wearing position as you prefer. Refer to the following URL for the detailed method of use. https://nwm.global/pages/qsg-dots Turning power on/off The power to the product cannot be turned on/off with the touch sensor on the ear- phones.
Page 7 How to turn the power on When the lid of the charging case is opened, the power is automatically turned on. * If the remaining battery power of the charging case is low, the power is not turned on, even though the lid is opened. Check the remaining battery power in advance.
Page 8 * Please note that if the lid is left open, the power is not turned off. * If the remaining battery power of the charging case is low, the power to the ear- phones is not turned off, even if the lid is closed. Check the remaining battery power in advance.
Page 9 Wearing These earphones are open-ear type. They are worn such that the speaker fits over the ear canal. Before wearing them, check the L and R (left and right) of the earphones. Insert the earphones from the front, and hang them above the ear. Applying excessive force to the earphones Wearing is incomplete Wearing the earphones...
Page 10 Take care not to put on the earphones with the left and right reversed. Status indicator display Operation and status indicator color Status During charging press the multifunc- Lit orange The charging case is charging. tion button open the lid of the charging case during charging Lit white The charging case has completed...
Page 11 Operation and status indicator color Status Place the earphones in the charg- Lit white for five seconds The remaining battery power of the ing case with the lid of the charging earphones is 100%. case open press the multifunction button with the earphones in the charging case Lit orange for five seconds The remaining battery power of the...
Page 12 How to charge Charging When first starting to use the earphones, charge them and the charging case. * This product does not include a Type-C cable or a wireless charger. Use a commercially available cable or wireless charger. When the lid of the charging case is open, the power of the charging case battery is being consumed.
Page 13 Charging the charging case takes approximately 2 hours to complete. Charging the earphones takes approximately 1 hour to complete. When the remaining battery power on the earphones is low, a notification sound is emitted. * The charging time may vary depending on the temperature environment or the fre- quency of use.
Page 14 <Note> n When inserting a USB cable into a USB port, ensure that it is inserted straight (horizontally), and all the way in. n Charge this product in a location that is away from direct sunlight and is well ventilated (5°C/41°F to 40°C/104°F).
Page 15 <Note> – Do not store in locations with high humidity or temperatures (such as within a car or where subject to direct sunlight). – Do not store when either fully charged or fully discharged. – 15 –...
Page 16 How to connect Pairing Connecting these earphones to a Bluetooth device first requires that they be paired. This means that using the same Bluetooth device at a later date will not require pairing operations again. To pair with subsequent Bluetooth devices, or to switch between connected devices, see “Re-pairing.”...
Page 17 How to pair l Open the lid of the charging case. When you use the earphones for the first time, they will automatically enter pairing mode when the power is turned on. * When the lid is opened, the status indicator displays the remaining battery power of the earphones (lit in white or orange) for 5 seconds.
Page 18 4. When [nwm DOTS] is displayed on the screen of the device to be connected, select it. When a notification tone sounds in the earphones, pairing is complete. * If [nwm DOTS] is not displayed on the screen of the device to be connected, repeat this procedure from step 1.
Page 19 When the connection is lost, a notification tone will sound. 2. In the Bluetooth settings screen of the new device to be connected, select [nwm DOTS]. When the connection is complete, a notification tone will sound. Connecting to two devices simultaneously (mul-...
Page 20 While listening to music on one device, incoming phone calls on a second device can be picked up as-is. * Not all combinations of Bluetooth-compatible devices are guaranteed to work. How to set up a multipoint connection 1. Pair the product with the first Bluetooth-compatible device. How to pair 2.
Page 21 <Note> n if you are unable to connect the devices, perform pairing again. n With a multipoint connection, up to two Bluetooth-compatible devices can be connected simultaneously. If pairing is performed with a third Bluetooth-compatible device while two devices are already connected, one of the two currently connected devices will be automati- cally disconnected.
Page 22 2. Press and hold the earphone's touch sensor (either left or right) for about 5 seconds. The start up sound when transitioning to Auracast streaming mode is emitted. The radio wave with the strongest audio signal in the surroundings is received. * If there is no Auracast radio wave transmission (distribution) in the surroundings, no signal will be received.
Page 23 To enter pairing mode with normal Bluetooth, place the earphones in the charging case, open the lid, and press and hold the multifunction button on the charging case for about 5 seconds. – 23 –...
Page 24 How to use Listening to music Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Remove the earphones from the charging case. 2. Put the earphones on. 3. Connect the earphones to the device to be connected. If the device is the paired device, the earphones may automatically connect.
Page 25 3 sec- hold (right) onds *1 You can change the assignment of controls using the dedicated nwm Connect app. For details, see “nwm Connect app”. nwm Connect App *2 When the maximum or minimum volume is reached, a notification tone will sound.
Page 26 <Note> n Depending on the specifications of the connected device, the operations above or operations on the connected device may not be possible. n Depending on the specifications of the connected device, configuration of playback settings may be required. Also see the instruction manual of the device you are using. n Depending on the specifications of the connected device, the app used for music playback may start automatically, or play/pause may not be possible.
Page 27 Calling Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Remove the earphones from the charging case. 2. Put the earphones on. 3. Connect the earphones to the device to be connected. If the device is the paired device, the earphones may automatically connect.
Page 28 Double-click & hold press it again and hold it for 3 sec- onds *1 You can change the assignment of controls using the dedicated nwm Connect app. For details, see “nwm Connect app”. nwm Connect App *2 When the maximum or minimum volume is reached, a notification tone will sound.
Page 29 Using the voice assistant function Use the microphone on the earphones for voice operation. Using the Google app Use the Google app, included with Android™ smartphones and devices, for voice opera- tions. 1. Enable the Google app. On Android™ OS smartphones, click “Settings,” then “Apps,” then select the gear icon dis- played on the upper right corner of the screen.
Page 30 * Depending on the specification of the paired device, the above operation and operation of the Bluetooth-compatible device is not possible. * You can change the assignment of controls using the dedicated nwm Connect app. For details, see “nwm Connect app”.
Page 31 1. Enable Siri. On your iPhone, go to “Settings,” then “Siri & Search,” then turn on “Press Side Button for Siri” and “Allow Siri When Locked.” The procedure above may differ depending on the OS version of your iPhone. For details, refer to the instruction manual for your iPhone.
Page 32 * Depending on the specifications of the connected device, the operations above or opera- tions on the connected device may not be possible. * You can change the assignment of controls using the dedicated nwm Connect app. For details, see “nwm Connect app”.
Page 33 * Functions and designs may be changed without notice. Download the nwm Connect app Download the nwm Connect app from the Google Play Store or the App Store, and install it on your smartphone or tablet. For details of the nwm Connect app, see the following URL: https://us.nwm.global/app-page...
Page 34 After installation has completed, start the nwm Connect app. – 34 –...
Page 35 Troubleshooting Troubleshooting Ensure you read the instructions of the device to connect. Power does not turn on. l Charge the product. l Try initializing this product. Pairing is not possible. l Keep the distance between this product and the Bluetooth device within 1 m. l Delete the pairing information of the product registered on the Bluetooth-compatible device, then perform pairing with the product again.
Page 36 There is no sound/the sound is too small. l Turn on the power of the product and of the device to connect to. l Increase the volume on the connected device. l Check that the product and the other device are connected by A2DP (or audio connection).
Page 37 1. Place the earphones in the charging case. 2. Charge the charging case. The status indicator of the charging case lights orange or white. How to charge – 37 –...
Page 38 The product settings are restored to the factory defaults, and all pairing information is deleted. When pairing again, delete the pairing information for this product “nwm DOTS (factory default)” from the Bluetooth-compatible connection device, and carry out pairing again. How to pair If the operation is not improved by initialization, consult with the dealer from which you purchased the product, but do not open the inside.
Page 39 Notifications Precautions for use l Ensure you read the instruction manual of the device to connect. l NTT sonority, Inc. will in no way be held responsible if the memory of the device to connect is deleted. l When connecting, turn the volume on the connected device all the way down. Take care as the sound indicating that connection is complete may be loud.
Page 40 l This product can only be used in countries where it complies with or has been certified under the radio act of that country. Only use the product in the country where you bought it. – 40 –...
Page 41 Bluetooth l Bluetooth wireless technology can communicate up to a distance of 10 m line of sight, however the effective communication range may differ depending on obstacles (such as human bodies, metal objects, or walls) or radio wave interference. l Radio waves generated by Bluetooth devices may affect the operation of devices such as electronic medical equipment.
Page 42 Trademarks l The Bluetooth word mark and logo are registered trademarks belonging to Blue- ® tooth SIG, Inc. The Auracast™ word mark and logo are trademarks belonging to Bluetooth SIG, Inc. The use of these marks by NTT sonority, Inc. is under license. l Apple, iPhone, and Siri are trademarks of Apple Inc., registered in the U.S.
Page 43 Warranty The warranty period for this product is 12 months. Please see our website for details on the warranty conditions. * Consumers have legal rights based on domestic law that regulates the sale of con- sumer goods. These rights are not affected by this warranty. (Limited Warranty for –...
Page 44 Main specifications Main specifications Communication method: Bluetooth Standard Ver. 5.3 Output: Bluetooth Standard Power Class 1 Maximum communication distance: Line-of-sight distance, approx. 10 m *1 Usage frequency range: 2.4 GHz band (2.4000 GHz to 2.4835 GHz) *2 Modulation method: FHSS Supported Bluetooth profiles: A2DP, HFP, AVRCP, TMAP, PBP Supported CODEC:...
Page 45 Accessories Tail tip (silicone) S, M, L two each * M size tips are attached at the time of shipment from the factory. Safety guide x 2 *1 Transmission distances are guidelines. Transmission distances may vary depending on the surrounding environment.
